PD1 27.5
PD1 27.5
Regular price
$999.99
Regular price
$999.99
Sale price
$999.99
Unit price
/
per
SKU: SKU:13576
When we created our three-model line of police bikes, we did so with the understanding that lives are at stake every time these bikes are in use. That's why every model is spec'd with parts made by only the most reputable of manufacturers and backed by a brand with almost 50 years of history behind it. When your equipment must perform flawlessly, look no further than our PD1, PD2 or PD4 models; three rock solid bikes to match three different budgets and intended uses.
Share
FEATURES
- Haro PD1 frame made from X6 6000-series alloy featuring internal cable routing
- Suntour XCE-28 fork w/ 100mm travel and pre-load adjustment
- Alloy forged crankset w/ steel 32T chainring and plastic guard, 175mm
- Microshift RD-M5185M Acolyte mid-cage rear derailleur w/ clutch
- Microshift SL-M7180-R Express 8-spd shifter
- 27.5" double-wall aluminum rims w/23mm inner diameter
- Alloy quick release, 6-bolt disc compatible hubs
- Stainless steel spokes
- Kenda Kwick 27.5"x2.20" w/ reflective sidewalls
- Promax DSK-320 mechanical brakes w/ 160mm rotors

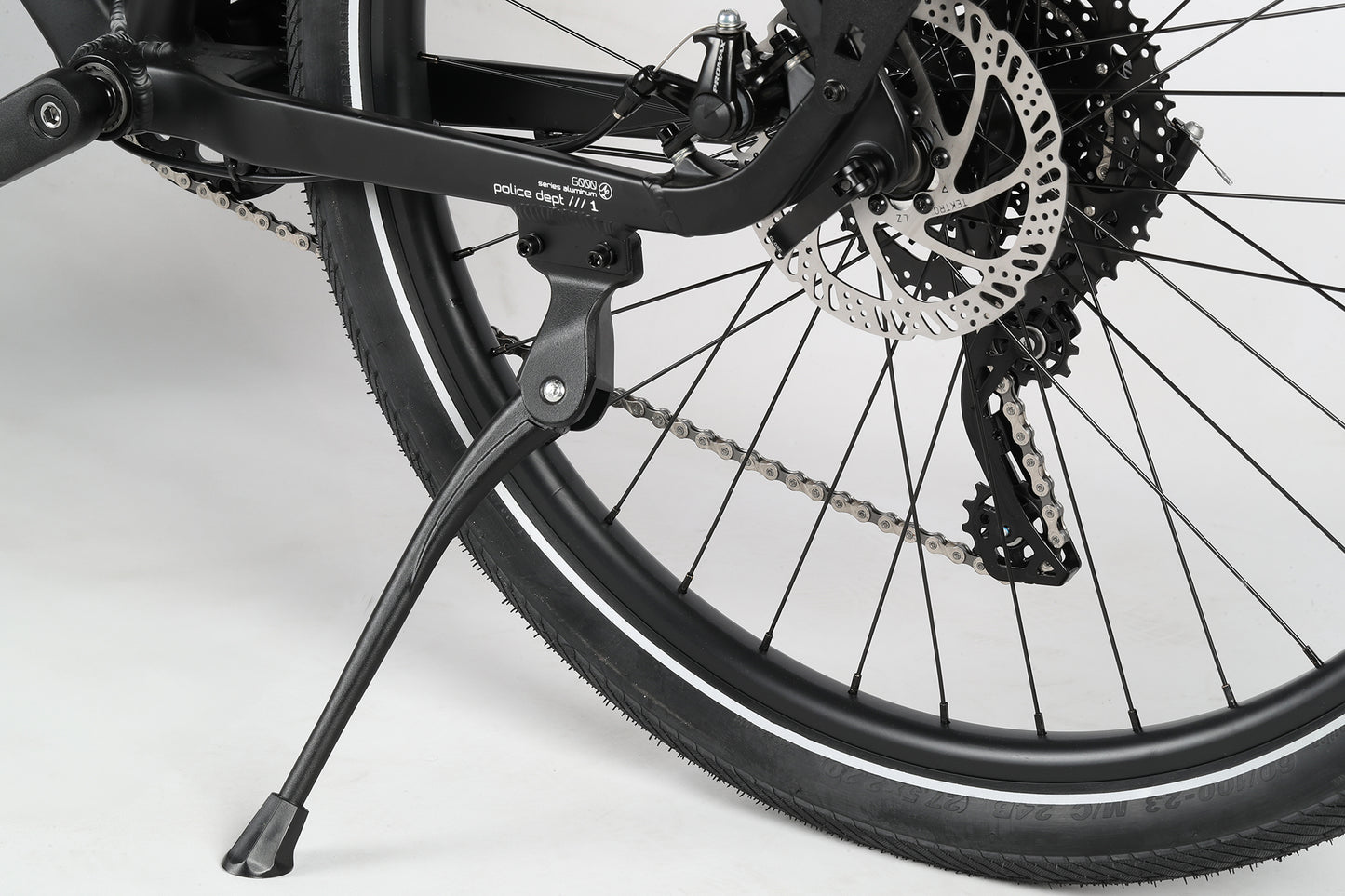

- Extras: Rear rack, chainstay- mounted kick stand, police branding and alloy bottle cage
PRODUCT INFORMATION
SPECIFICATIONS
| FRAMESET | |
|---|---|
| Frame | Haro PD 1 27.5" X6 6000 series alloy, w/internal housing routing |
| Fork | Suntour XCE-28 100mm Travel w/preload adjustment |
| Colors | Matte Black |
| DRIVETRAIN | |

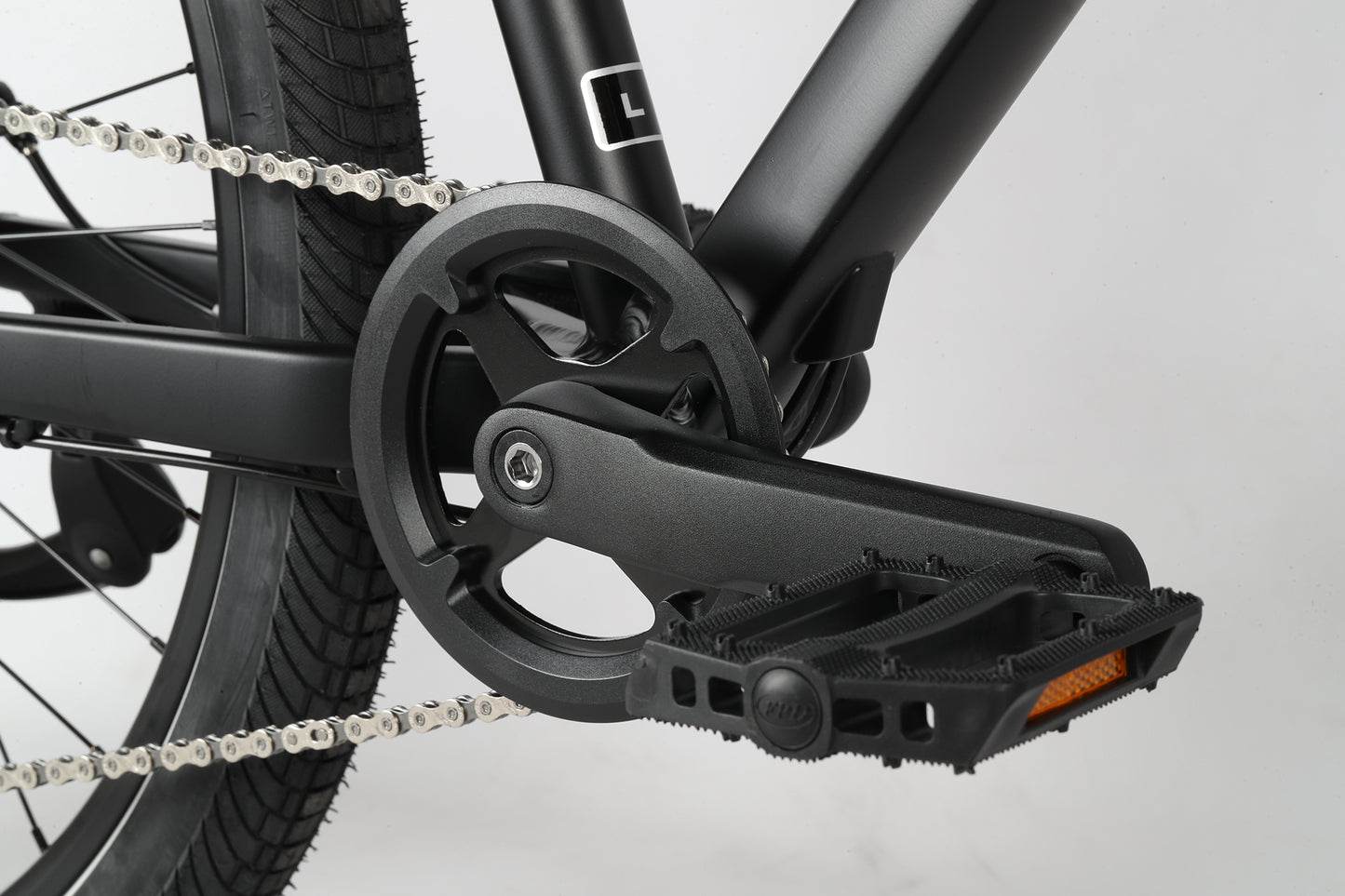

| Cranks | Alloy forgend w/steel 32T chain- ring, and plastic Guard , 175mm |
| Pedals | Nylon MTB 9/16" |
| Chain | KMC X8 |
| Bottom Bracket | Cartridge bearings |
| Front Derailleur | |
| Rear Derailleur | Microshift RD-M5185M Acolyte Mid Cage w/clutch |
| Derailleur Shifter | Microshift SL-M7180-R Express 8-spd shifter |
| Freewheel/Cassette | Microshift CS-H104 11-42T |
| WHEELS | |
| Tires | Kenda Kwick 27.5"x2.20" w/ reflective tape |
| Wheels/Rims | J-23 27.5" 23mm inner width, aluminum double wall |
| Hubs | Alloy quick release, 6-bolt disc |
| BRAKING SYSTEM | |
| Brakes | Promax DSK-320 mechanical disc w/160mm rotors |
| Brake Levers | Tektro ML-520 2-finger lever |
| OTHER COMPONENTS | |
| Grips/Tape | Velo 135mm ergonomic grips |
| Handlebar | Haro alloy riser bar, 780mm width, 9-degrees backsweep, 20mm rise |

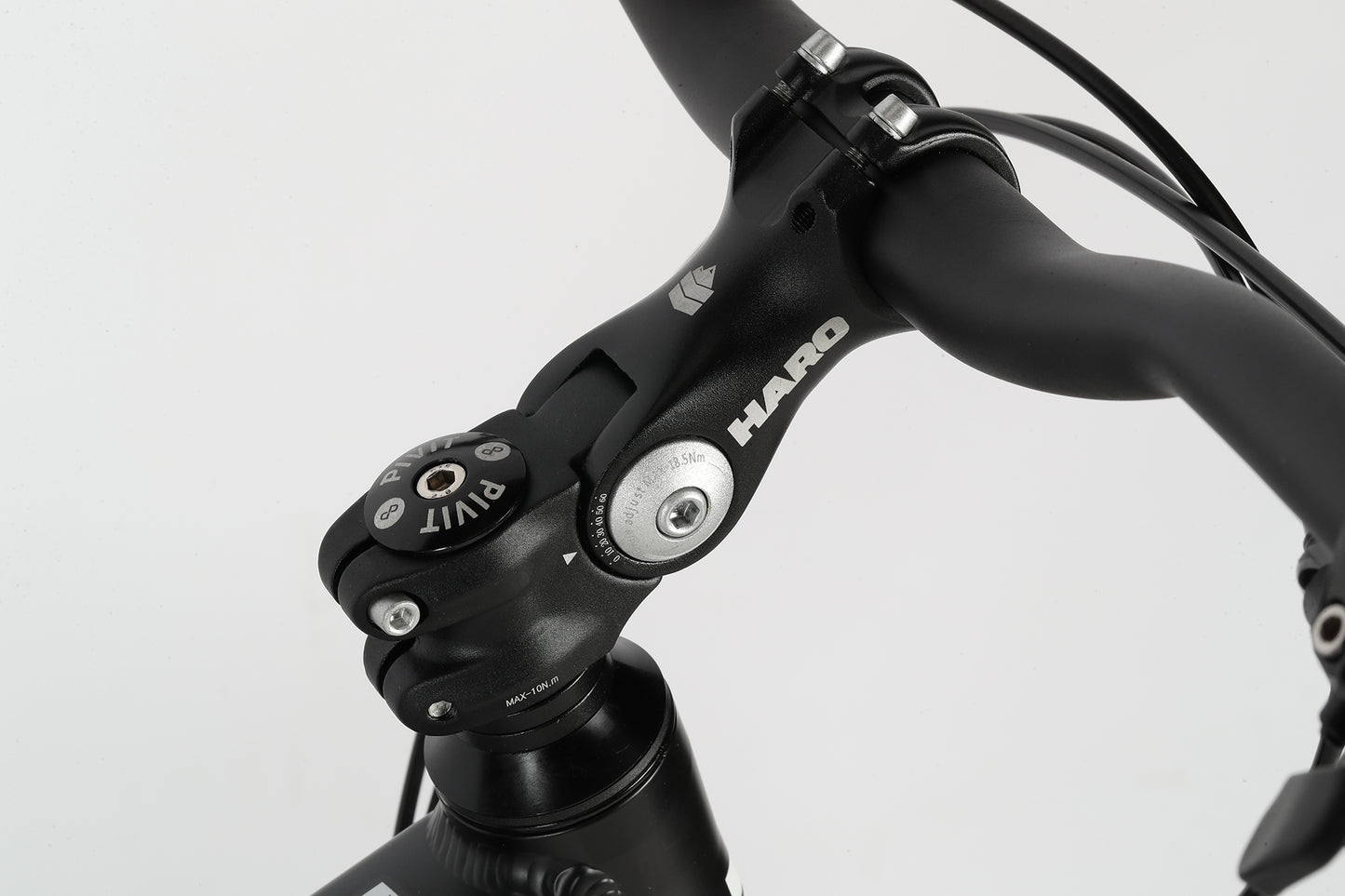

| Stem | Forged alloy 105mm reach, adjustable rise stem |
| Headset | 1-1/8" threadless 50mm OD Headtube |
| Saddle | WTB Volt Medium |
| Seat Post | 30.9mm alloy micro adjust |
| Seat Clamp | Alloy quick release |

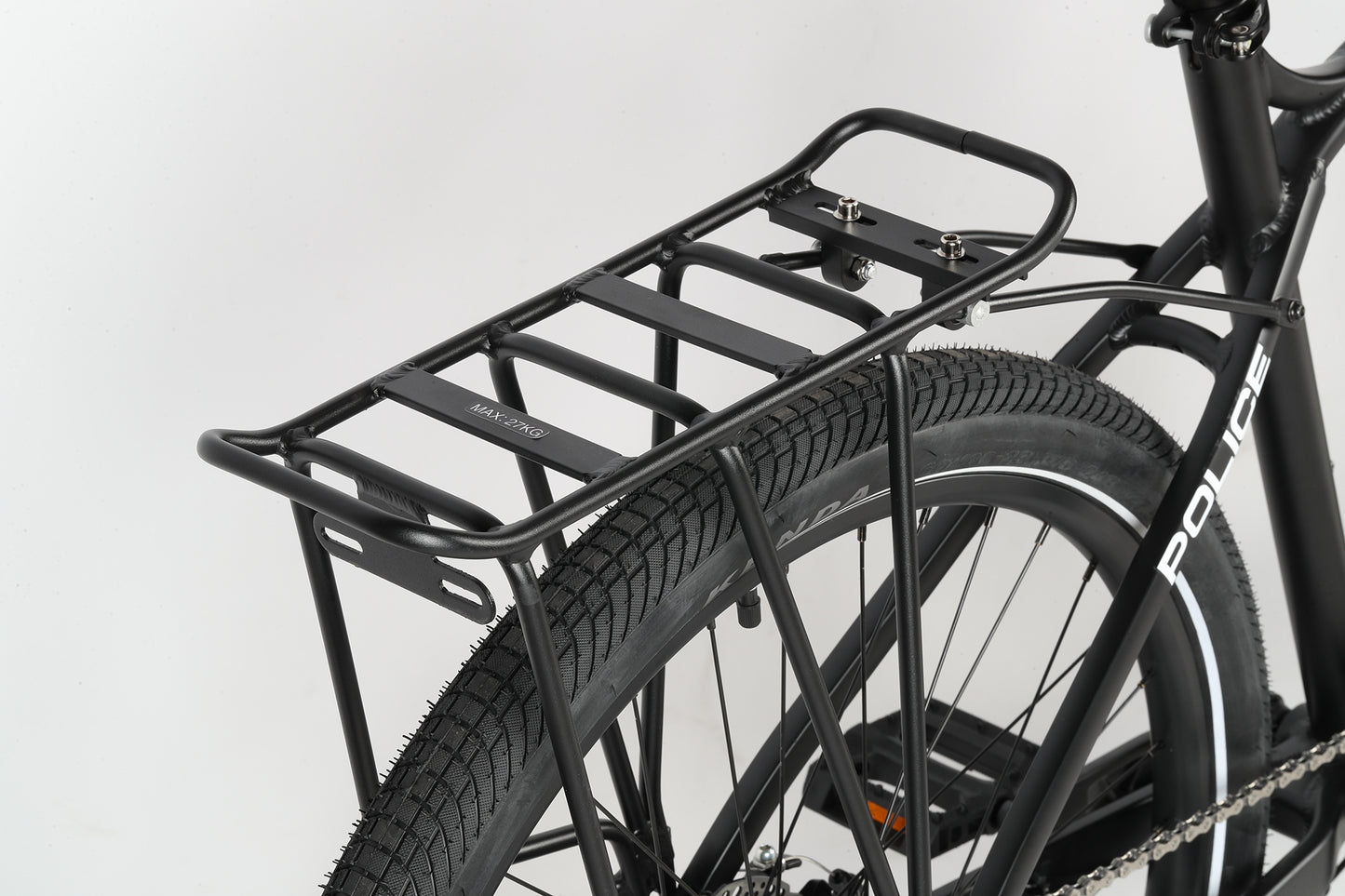

| Extras | Triple strut, heavy duty rear rack, chainstay-mounted kickstand, police branding and alloy bottle cage |
GEOMETRY
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 406mm | 457mm | 508mm | 559mm |
| Top Tube (Effective) | 566.8mm | 585.9mm | 600.7mm | 617.5mm |
| Head Tube Angle | 68° | 68° | 68° | 68° |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| BB Drop | 45mm | 45mm | 45mm | 45mm |
| Wheelbase | 1122.9mm | 1141.1mm | 1158.6mm | 1168.5mm |
| Head Tube Length | 115mm | 120mm | 130mm | 130mm |
| Standover | 698mm | 719mm | 727mm | 759mm |
| Stack Height | ||||
| Reach | 410mm | 430mm | 443mm | 450mm |
| Axle to Crown | 490mm | 490mm | 490mm | 490mm |
| Fork Offset | 42mm | 42mm | 42mm | 42mm |
| Stem Length | ||||
| Bar Width | ||||
| Crank Length | ||||
| Wheel Size |
MANUALS, GUIDES & DOWNLOADS
Downloadable PDFs can be found in Manuals & Guides
*Specifications are subject to change without notice
