PD2 27.5
PD2 27.5
Regular price
$1,199.99
Regular price
$1,199.99
Sale price
$1,199.99
Unit price
/
per
SKU: SKU:13582
Our PD2 isn't just a PD1 with better componentry; while you will find a more advanced Suntour fork and an upgraded Microshift 9-speed Advent drivetrain, the frame itself features a tapered head tube that uses sealed bearings which results not only in smoother turning, but also in a stiffer, more durable front end.
Share
FEATURES
- Haro PD2 frame made from X6 6000-series alloy featuring internal cable routing and a tapered head tube
- Suntour XCT-30 fork w/1-1/8" steerer tube and 100mm travel w/ lockout
- Alloy forged crankset w/ steel 32T chainring and plastic guard; 170mm size small, 175mm size medium - XLarge
- Microshift, ADVENT medium cage w/ clutch
- Microshift 9-spd Trail Pro shifter
- 27.5" double-wall aluminum rims w/23mm inner diameter
- Alloy quick release, 6-bolt disc compatible hubs
- Stainless steel spokes
- Kenda Kwick 27.5"x2.20" w/ reflective sidewalls
- Promax DSK-320 mechanical brakes w/ 160mm rotors
- Extras: Rear rack, chainstay- mounted kick stand, police branding and alloy bottle cage
PRODUCT INFORMATION
SPECIFICATIONS
| FRAMESET | |
|---|---|
| Frame | Haro PD 2 27.5" X6 6000 series alloy, w/internal housing routing & tapered head tube |
| Fork | Suntour XCT-30 ATB, 1-1/8" 100mm travel w/lockout |
| Colors | Matte Black |
| DRIVETRAIN | |
| Cranks | Alloy Forged 32T 170mm (size small), 175mm (sizes medium - Xlarge) |
| Pedals | Nylon MTB 9/16" |
| Chain | KMC X9 |
| Bottom Bracket | Cartridge bearings |
| Front Derailleur | |
| Rear Derailleur | Microshift, ADVENT Medium Cage w/clutch, RD-M6195M |
| Derailleur Shifter | Micro shift 9-spd Trail Pro Shifter |
| Freewheel/Cassette | Microshift CS-H104 11-42T |
| WHEELS | |
| Tires | Kenda Kwick 27.5"x2.20" w/ reflective tape |
| Wheels/Rims | J-23 27.5" 23mm inner width, aluminum double wall |
| Hubs | Alloy quick release, 6-bolt disc |
| BRAKING SYSTEM | |
| Brakes | Promax DSK-320 mechanical disc w/160mm rotors |
| Brake Levers | Tektro ML-520 2-finger lever |
| OTHER COMPONENTS | |
| Grips/Tape | Velo 135mm ergonomic grips |
| Handlebar | Haro alloy riser bar, 780mm width, 9-degrees backsweep, 20mm rise |

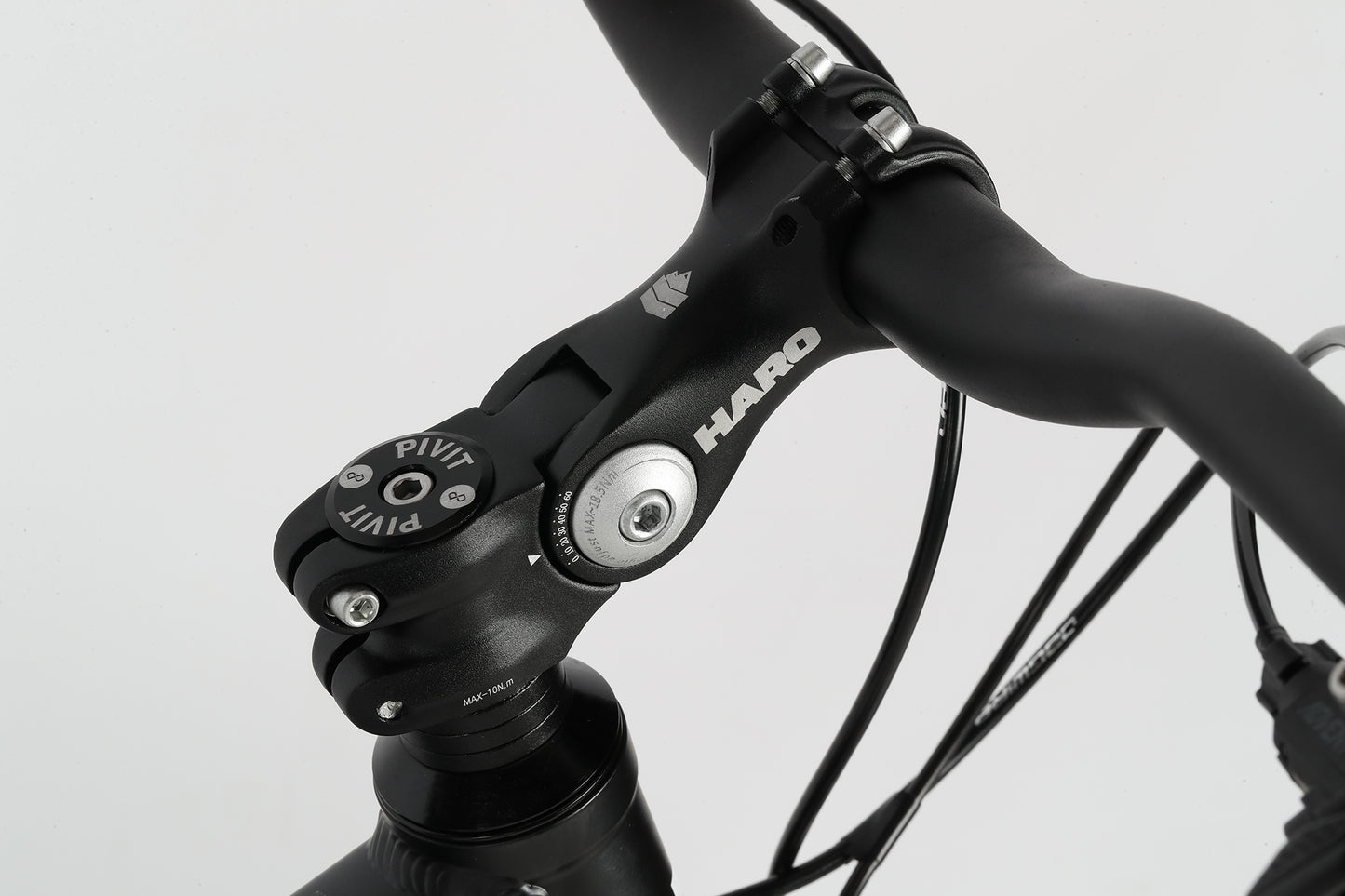

| Stem | Forged alloy 105mm reach, adjustable rise stem |
| Headset | 1-1/8" - 1-1/5" tapered threadless 50/ 62 OD headtube |

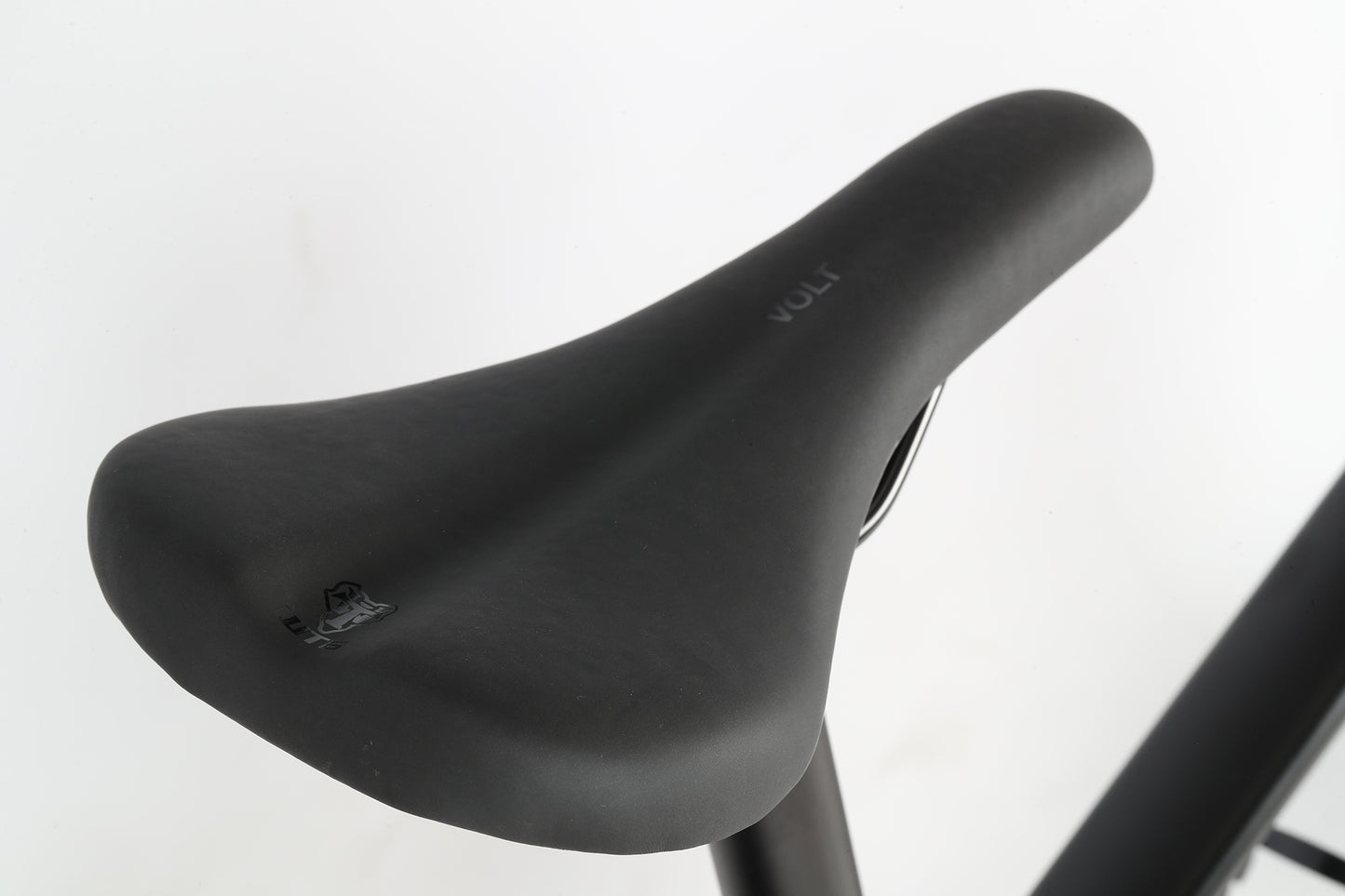

| Saddle | WTB Volt Medium |
| Seat Post | 30.9mm alloy micro adjust |
| Seat Clamp | Alloy quick release |

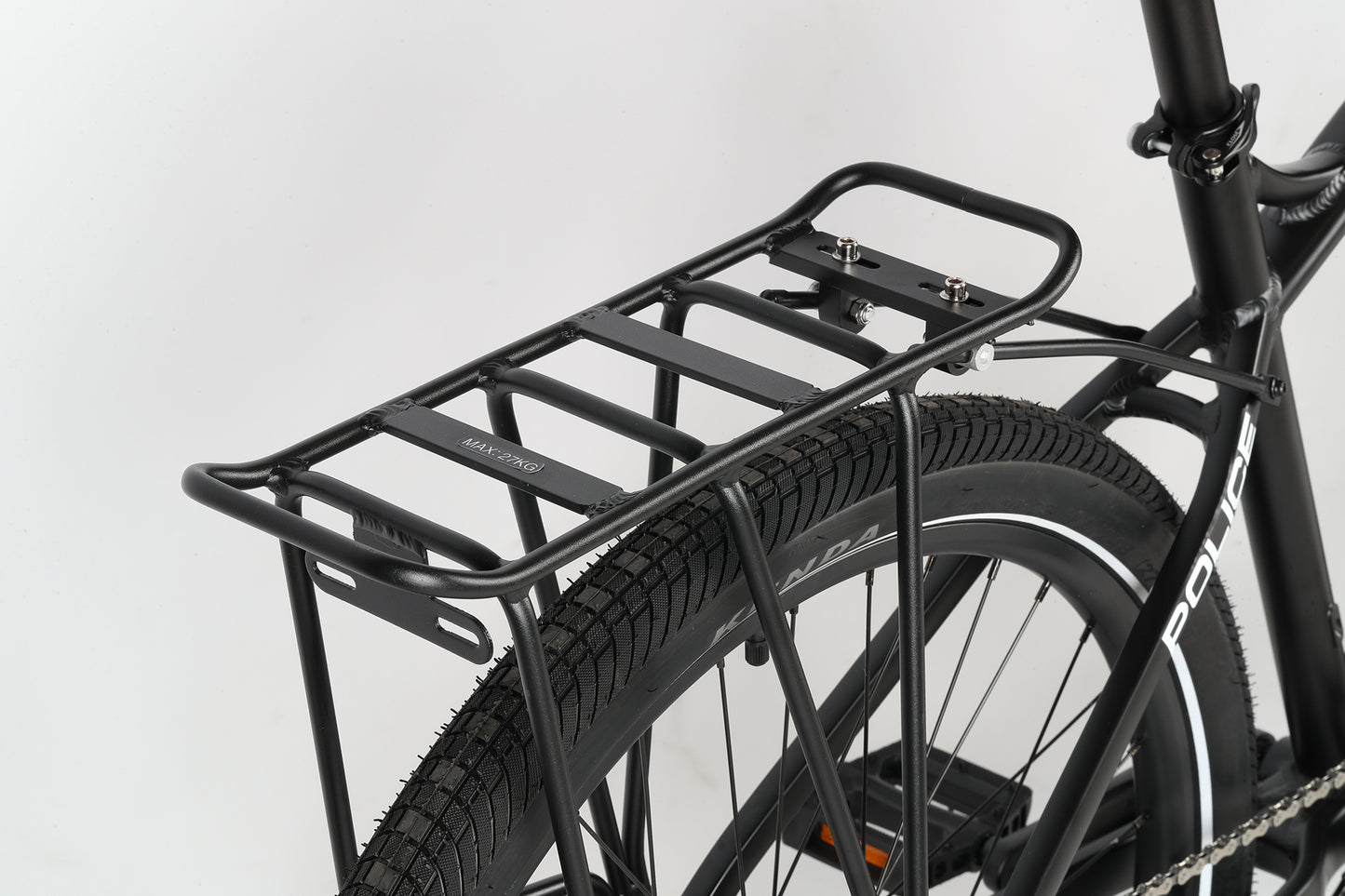

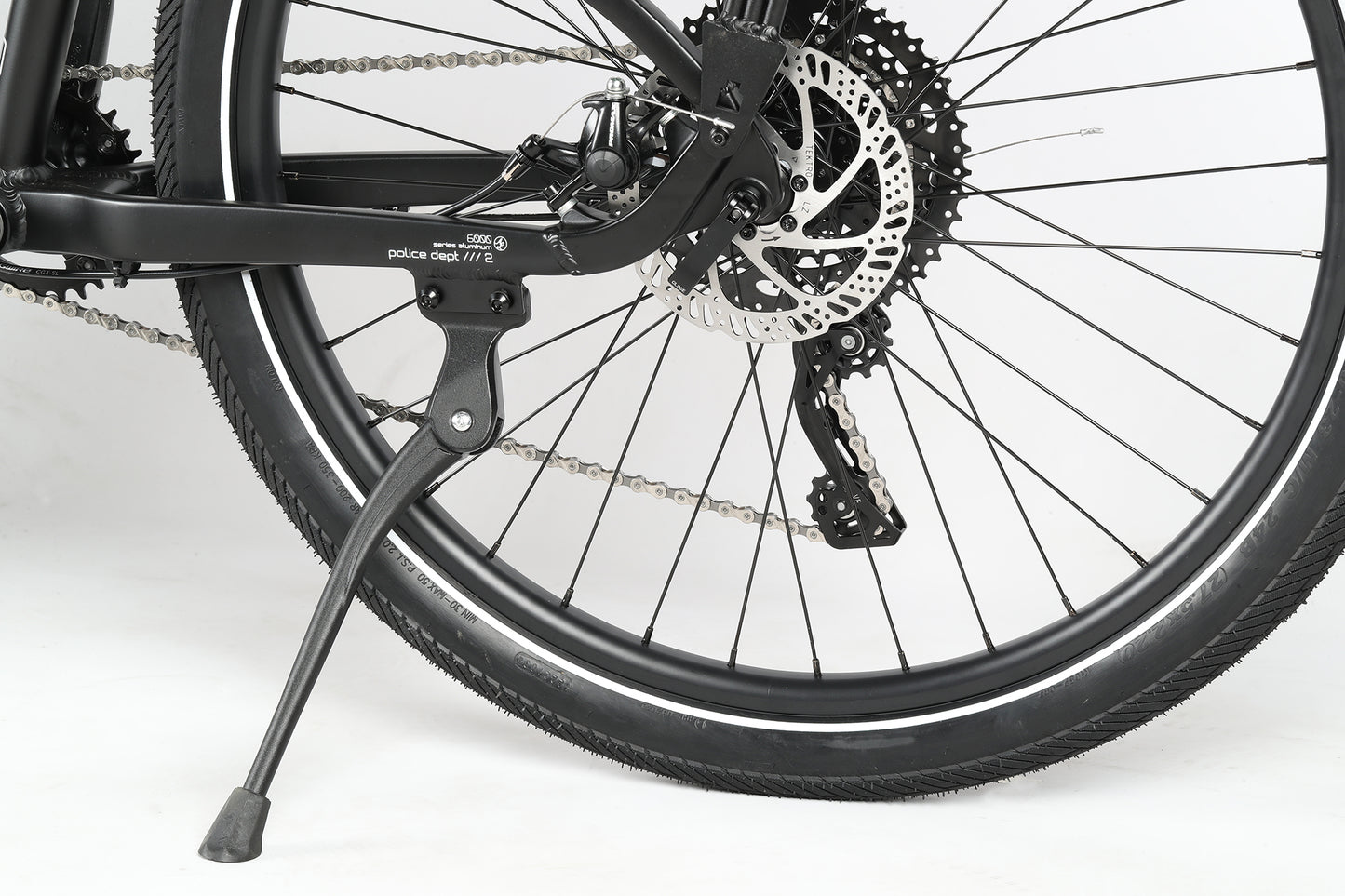

| Extras | Triple strut, heavy duty rear rack, chainstay-mounted kickstand, police branding and alloy bottle cage |
GEOMETRY
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 406mm | 457mm | 508mm | 559mm |
| Top Tube (Effective) | 566.8mm | 585.9mm | 600.7mm | 617.5mm |
| Head Tube Angle | 68° | 68° | 68° | 68° |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| BB Drop | 45mm | 45mm | 45mm | 45mm |
| Wheelbase | 1122.9mm | 1141.1mm | 1158.6mm | 1168.5mm |
| Head Tube Length | 115mm | 120mm | 130mm | 130mm |
| Standover | 698mm | 719mm | 727mm | 759mm |
| Stack Height | ||||
| Reach | 410mm | 430mm | 443mm | 450mm |
| Axle to Crown | 490mm | 490mm | 490mm | 490mm |
| Fork Offset | 42mm | 42mm | 42mm | 42mm |
| Stem Length | ||||
| Bar Width | ||||
| Crank Length | ||||
| Wheel Size |
