PD4 27.5
PD4 27.5
Regular price
$1,799.99
Regular price
$1,799.99
Sale price
$1,799.99
Unit price
/
per
SKU: SKU:13586

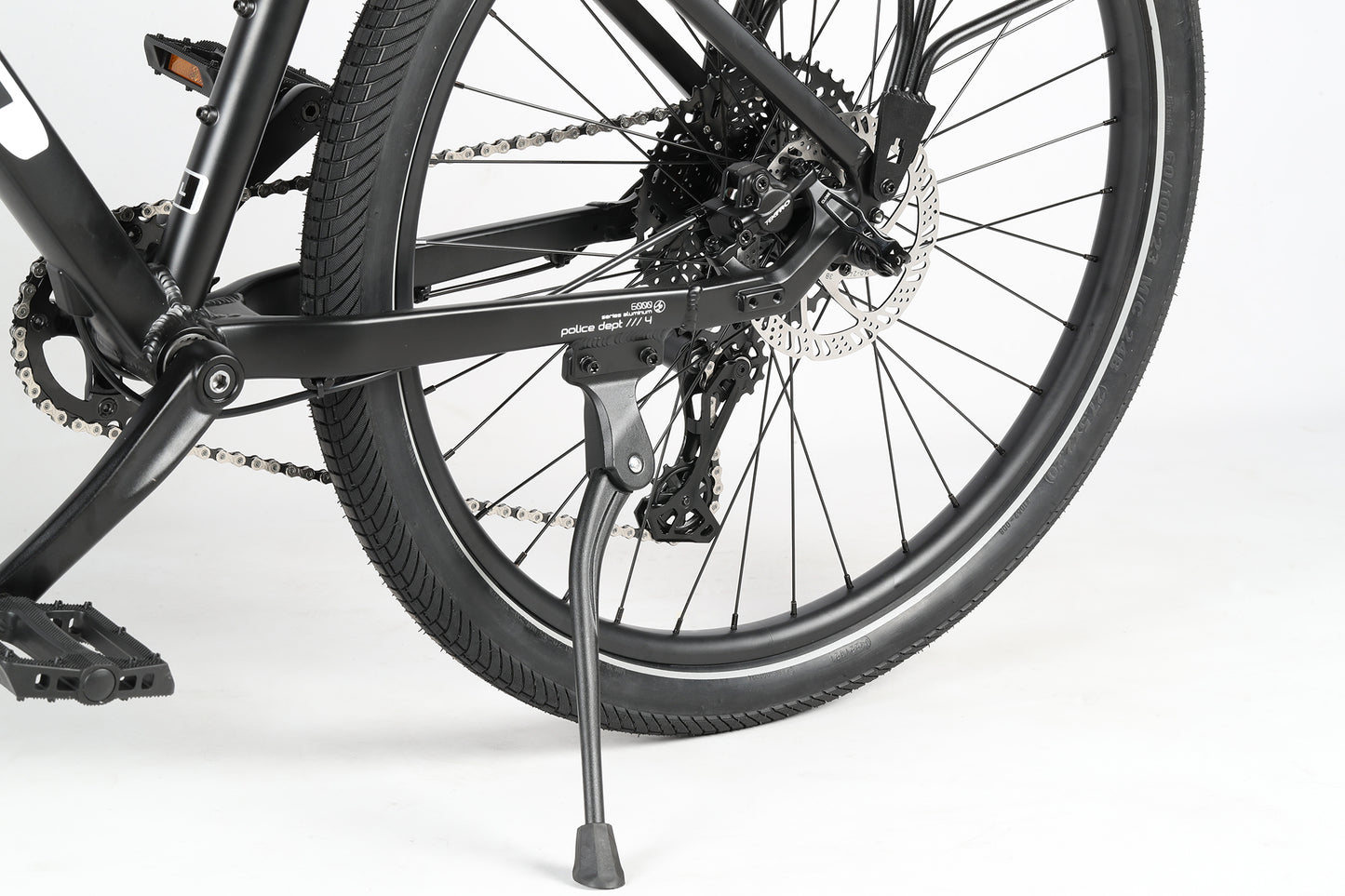

Our top-of-the-line PD4 gets another frame upgrade, this time in the form of 148mm boost spacing. This allows us to use a wider rear hub axle, which means we can increase the width of the hub flanges, resulting in a stronger, stiffer rear wheel. Add in the 12mm thru axles front and rear, sealed bearings throughout and the PD4 is our most bullet-proof (pardon the pun) model in the range.
Share
FEATURES
- Haro PD4 frame made from X6 6000-series alloy frame w/ internal cable routing, tapered head tube and 148mm boost dropouts
- Suntour XCM34 fork w/ lockout, 100mm travel, and 12mm thru axle
- Alloy forged crankset w/ steel 32T chainring and plastic guard; 170mm size small, 175mm size medium - XLarge
- Microshift Advent 10-speed drivetrain, featuring the Advent X M6205AM rear derailleur w/proprietary ratchet-and-pawl clutch system
- Microshift 10-spd Advent SL- M9605 Trail Pro shifter
- 27.5" double-wall aluminum rims w/23mm inner diameter
- Novatech sealed 6-bolt hubs, 110mm x 12mm thru axle front; 148mm x 15mm rear
- Stainless steel spokes
- Kenda Kwick 27.5"x2.20" w/ reflective sidewalls
- Tektro hydraulic disc brakes w/ 180mm front rotor and 160mm rear rotor
- Extras: Rear rack, chainstay- mounted kick stand, police branding and alloy bottle cage
PRODUCT INFORMATION
SPECIFICATIONS
| FRAMESET | |
|---|---|
| Frame | Haro PD 4 27.5" X6 6000 series alloy, w/internal housing routing, tapered head tube & 148mm Boost dropouts |
| Fork | Suntour XCM34 w/lockout, 100mm travel, and 12mm thru axle |
| Colors | Matte Black |
| DRIVETRAIN | |
| Cranks | Alloy Forged 32T 170mm (size small), 175mm (sizes medium - Xlarge) |
| Pedals | Nylon MTB 9/16" |
| Chain | KMC X10 |
| Bottom Bracket | Cartridge bearings |
| Front Derailleur | |
| Rear Derailleur | Microshift ADVENT M6205AM |
| Derailleur Shifter | Microshift 10-spd ADVENT SL-M9605 Trail Pro |
| Freewheel/Cassette | Microshift CS-H104 11-48T |
| WHEELS | |
| Tires | Kenda Kwick 27.5"x2.20" w/ reflective tape |
| Wheels/Rims | J-23 27.5" 23mm inner width, aluminum double wall |
| Hubs | Novatech selaed; 6-bolt; 110mm 12mm thru axle front; 148mm Boost spacing 15mm thru axle rear |
| BRAKING SYSTEM | |
| Brakes | Tektro HD-J285 hydraulic disc brakes; 180mm front rotor, 160mm rear rotor |
| Brake Levers | Tektro ML-520 2 finger |
| OTHER COMPONENTS | |
| Grips/Tape | Velo 135mm ergonomic grips |
| Handlebar | Haro alloy riser bar, 780mm width, 9-degrees backsweep, 20mm rise |
| Stem | Forged alloy 105mm reach, adjustable rise stem |
| Headset | 1-1/8" - 1-1/5" tapered threadless 50/62 OD headtube |
| Saddle | WTB Volt Medium |
| Seat Post | 30.9mm alloy micro adjust |
| Seat Clamp | Alloy quick release |
| Extras | Triple strut, heavy duty rear rack, chainstay-mounted kickstand, police branding and alloy bottle cage |
GEOMETRY
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 406mm | 457mm | 508mm | 559mm |
| Top Tube (Effective) | 566.8mm | 585.9mm | 600.7mm | 617.5mm |
| Head Tube Angle | 68° | 68° | 68° | 68° |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| BB Drop | 45mm | 45mm | 45mm | 45mm |
| Wheelbase | 1122.9mm | 1141.1mm | 1158.6mm | 1168.5mm |
| Head Tube Length | 115mm | 120mm | 130mm | 130mm |
| Standover | 698mm | 719mm | 727mm | 759mm |
| Stack Height | ||||
| Reach | 410mm | 430mm | 443mm | 450mm |
| Axle to Crown | 490mm | 490mm | 490mm | 490mm |
| Fork Offset | 42mm | 42mm | 42mm | 42mm |
| Stem Length | ||||
| Bar Width | ||||
| Crank Length | ||||
| Wheel Size |
MANUALS, GUIDES & DOWNLOADS
Downloadable PDFs can be found in Manuals & Guides
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
