Pro

Pro

Regular price $349.99
Regular price $649.99 Sale price $349.99
Sale Sold out

SKU: SKU:24535

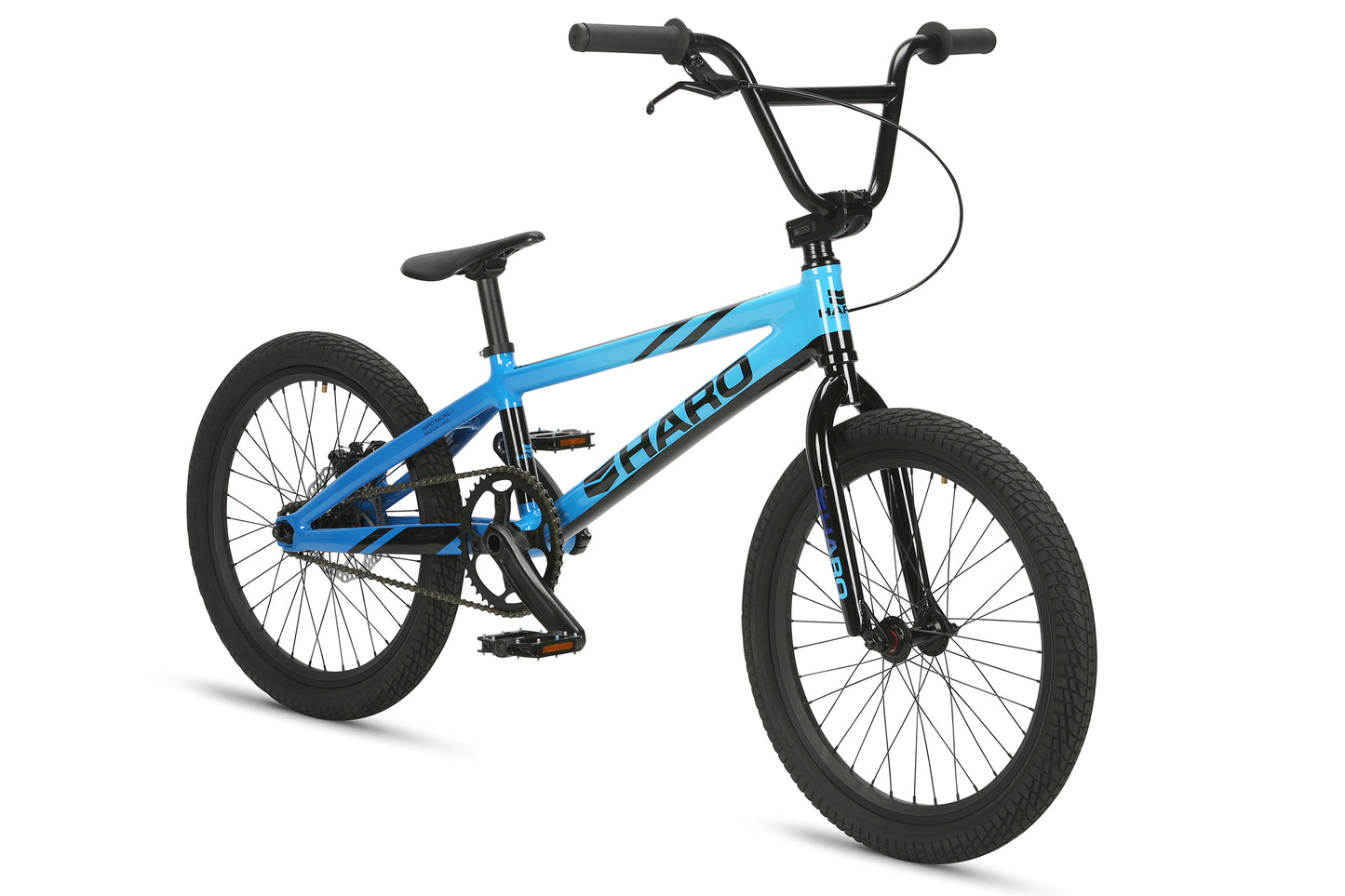

Not quite ready to go pro? The Race Lite Pro is almost fully grown up with a tried & true 20.75" top tube length. Add a durable chromoly fork to take the landings, 8" rise chromoly bars, 170mm forged cranks and pro-sized 20 X 1.75" rims mounted with a 1.95" front and 1.75" Konversion tires, and you have yourself a race-ready BMX machine. The Race Lite Pro model shares many of the same key components and spec as the Expert XL model but have been sized up slightly. 20.75" top tube frame, 175mm cranks, 8" rise bars and wider rims/tires all contribute to making this platform fit the needs of racers who have grown beyond the Expert XL size.
Color

View full details

FEATURES

  • 6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner
  • Full chromoly 1 1/8" Threadless Steerer w/ Tapered Legs
  • 2-pc Forged Alloy w/ 24mm Hollow Spindle
  • 20" Alloy 36h, Double Wall
  • 36h Alloy Sealed-Bearing w/Disc 16T Cassette Rear
  • Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 20.75" top tube.
ForkFull chromoly 1 1/8" Threadless Steerer w/tapered legs
ColorsBlue
DRIVETRAIN
Cranks2-pc Forged Alloy w/ 24mm Hollow Spindle - 170mm - 44t Alloy Chainring
Bottom BracketPress-Fit BB86, Sealed Bearing
Sprocket44t Alloy Chainring
Gearing44/16
PedalsAlloy DX, 9/16"
ChainKMC Z33 1/2 X 3/32"
Cassette16t Cassette
WHEELS
TiresKenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
Front Hub36h Alloy Sealed-Bearing
Rear Hub36h sealed disc 16T cassette rear
Rims24" Alloy 36h, Double Wall
BRAKING SYSTEM
BrakePromax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
Brake LeverPromax XL-373 Two Finger
OTHER COMPONENTS
GripsMicro-Knurl Grip
HandlebarHaro full chromoly, 8" Rise
StemForged Alloy Top-Load, 45mm reach
Headset1-1/8"" Sealed Threadless
SeatHaro Slim Plastic Pivotal
Seat PostAlloy Pivotal, 27.2mm
Seat Post ClampAlloy, 31.8mm

GEOMETRY

Geometry & Sizing
SizeHead AngleSeat AngleTop TubeSeat TubeChainstayBB HeightStand Over
2074°72°20.75" (527mm)9.4" (240mm)14.3" (364mm)11.5" (293mm)22.1" (562mm)

SIZING GUIDE

Size Table
SizeInchesCM
205'6" - 5'10"
