Pro 24
Pro 24
Regular price
$349.99
Regular price
$679.99
Sale price
$349.99
Unit price
/
per
SKU: SKU:24553

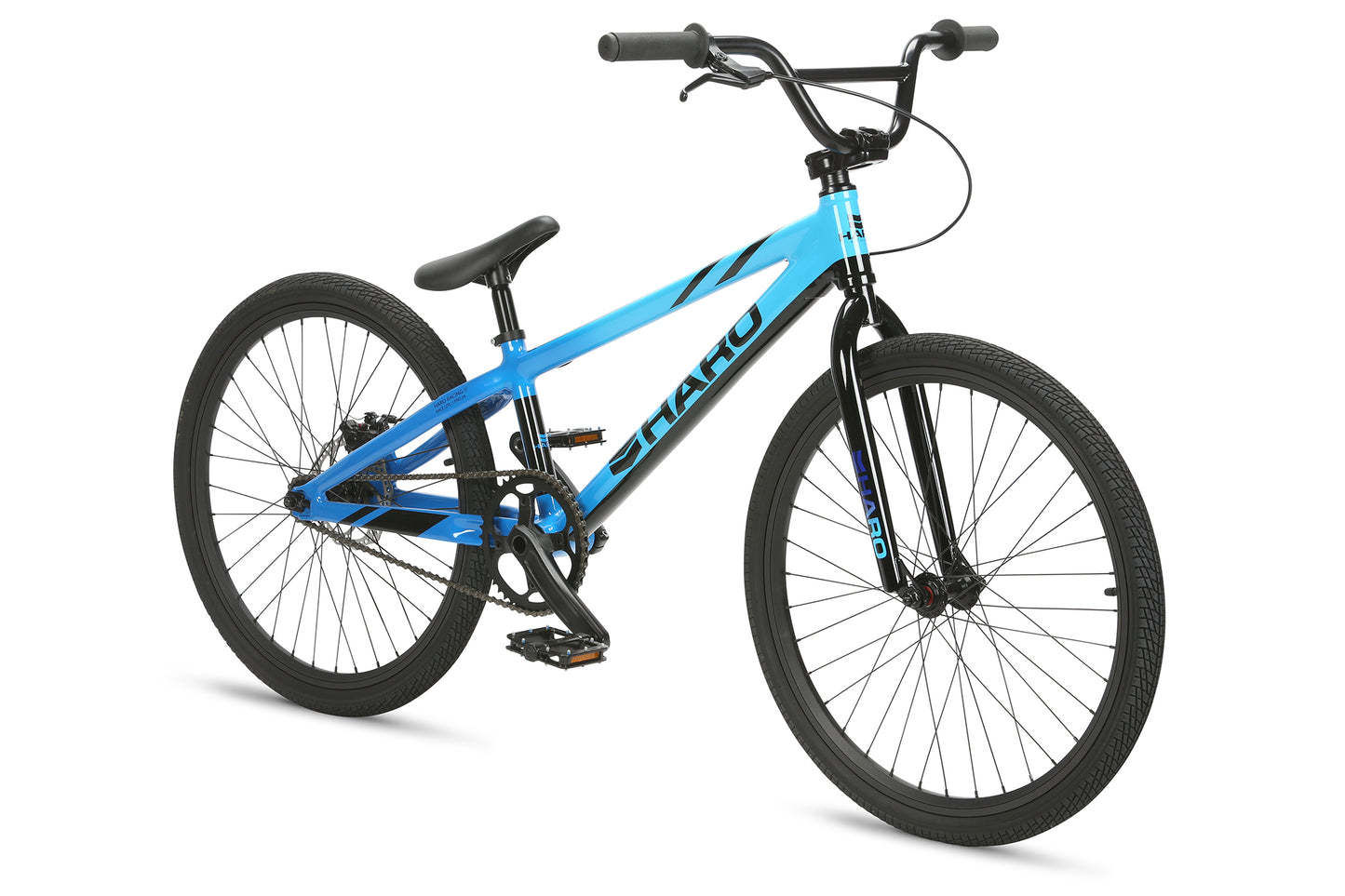

Big wheel feels. The Race Lite Pro 24 is smooth, stable and fast on the track. Built on our heat-treated aluminum Race Lite frame, upsized for 24" wheels with a 21.75" top tube, You also get 24-sized chromoly forks and bars, along with the same high-performance spec as its 20" family members: 2-piece 175mm alloy cranks with a sealed BB86 bottom bracket and 24" alloy wheels rolling on sealed bearings. For the cruiser crew, the Pro Lite 24 is ready-to-go.
Size Chart
Size Chart
Size | Inches | CM |
---|---|---|
24 | 5'10" and up |
Share
Collapsible content
FEATURES
- 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 21.75" top tube length.
- Full chromoly 1 1/8" Threadless Steerer w/ Tapered Legs
- 2-pc 175mm Forged Alloy w/ 24mm Hollow Spindle. 40T chainring.
- 24" Alloy 36h, double wall rims
- 36h Alloy sealed bearing hubs with w/disc 16T cassette rear
- Kenda "Konversion" tires. 24 x 1.95 front, 24 X 1.75" rear.
BIKE SPECS
FRAMESET | |
---|---|
Frame | 6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioners. 21.75" top tube. |
Fork | Full chromoly 1 1/8" Threadless Steerer w/ Tapered Legs |
Colors | Blue |
DRIVETRAIN | |
Cranks | 2-pc Forged Alloy w/ 24mm Hollow Spindle - 175mm - 44t Alloy Chainring |
Bottom Bracket | Press-Fit BB86, Sealed Bearing |
Sprocket | 40t Alloy Chainring |
Gearing | 40/16 |
Pedals | Alloy DX, 9/16" |
Chain | KMC Z33 1/2 X 3/32" |
Cassette | 16t Cassette |
WHEELS | |
Tires | Kenda Konversion 24 X 1.95 front, 24 X 1.75" rear. |
Front Hub | 36h Alloy Sealed-Bearing |
Rear Hub | 36h sealed disc 16T cassette rear |
Rims | 24" Alloy 36h, Double Wall |
BRAKING SYSTEM | |
Brake | Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor |
Brake Lever | Promax XL-373 Two Finger |
OTHER COMPONENTS | |
Grips | Micro-Knurl Grip |
Handlebar | Haro full chromoly, 5.25" Rise |
Stem | Forged Alloy Top-Load, 45mm reach |
Headset | 1-1/8"" Sealed Threadless |
Seat | Haro Slim Plastic Pivotal |
Seat Post | Alloy Pivotal, 27.2mm |
Seat Post Clamp | Alloy, 31.8mm |
GEOMETRY
-
-
Geometry & Sizing Size A. Head Angle B. Seat Angle C. Top Tube D. Seat Tube E. Chainstay F. BB Height G. Stand Over 24 73.3° 71° 21.75" (553mm) 10.5" (266.5mm) 15.6" (397mm) 12" (305mm) 23.6" (599mm)
HARO FACTORY RACE PARTS
-
Citizen Carbon Frame
Regular price $1,199.95Regular priceUnit price / per$1,199.95Sale price $1,199.95 -
Cliq Citizen Carbon Fork
Regular price $284.95Regular priceUnit price / per$284.95Sale price $284.95 -
Sold out
Cliq Weaponz Cranks
Regular price From $284.95Regular priceUnit price / per$284.95Sale price From $284.95Sold out -
Sold out
Cliq BB92 Bottom Bracket
Regular price $41.99Regular priceUnit price / per$41.99Sale price $41.99Sold out
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
