Saguaro 3

Saguaro 3

Regular price $1,499.99
Regular price $1,899.99 Sale price $1,499.99
Sale Sold out

SKU: SKU:14434

Simple, slack and full-on fun. The Saguaro 29-inch hardtail is purpose built to be the most versatile bike in your quiver. Make no mistake, this hardcore hardtail is no XC bike. With an aggressive geometry and slack head angle that is more inclined to hauling down hills than pedaling up them, the Saguaro is stretched out in the front and shortened up in the back for a stable ride at speed. As one of our testers put it: "It makes mellow trails more fun". Hit the jumps, hammer the single track and rip the turns. The Saguaro is everything you need, and nothing you don't. All three models of the Saguaro bike collection feature our heat-treated 6061 aluminum Saguaro frame with three spec levels to fit your needs (and budget). The most affordable of the Saguaro family. The Saguaro 3 features the same top-shelf aluminum frame set as level 1 and 2. We dialed back the spec a little to bring the cost down, but there's no compromise in performance: RockShox TK35 140mm travel fork, Shimano Cues 11-speed gearing, WTB rims, sealed hubs, tubeless tires and a TranzX dropper post--everything to handle business in style.
Color: Metallic Green
Size

View full details

FEATURES

  • Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. Tapered head tube.
  • Modern geometry: 64.5 degree head tube angle with a longer front triangle and shorter rear end.
  • RockShox TK35 Silver. 140mm travel fork.
  • WTB KOM Team 32 hole rims, with CNC-ed, sealed 15mm thru-axle front and six-sealed bearing, 12mm thru-axle (rear) hubs.
  • Shimano Cues 11-speed Shadow Plus transmission
  • Tires: Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4"ATC (rear). Sealant included. Small size features 27 X 2.5" rear "mullet" configuration.
  • TranzX dropper post. Size-specific per frame size.
  • Tektro Gemini HD-M530 hydraulic brakes. 4-piston front, 2-piston rear. 180mm rotors.
  • Full 29er. Small size features "mullet" wheel configuration with 29" front, 27.5" rear

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameHydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. UDH derailleur hanger. Tapered head tube. Frame will accommodate up to 2.6" tires.
ForkRockShox TK 35 Silver 140mm
ColorsMetallic Green, Matte Mauve
DRIVETRAIN

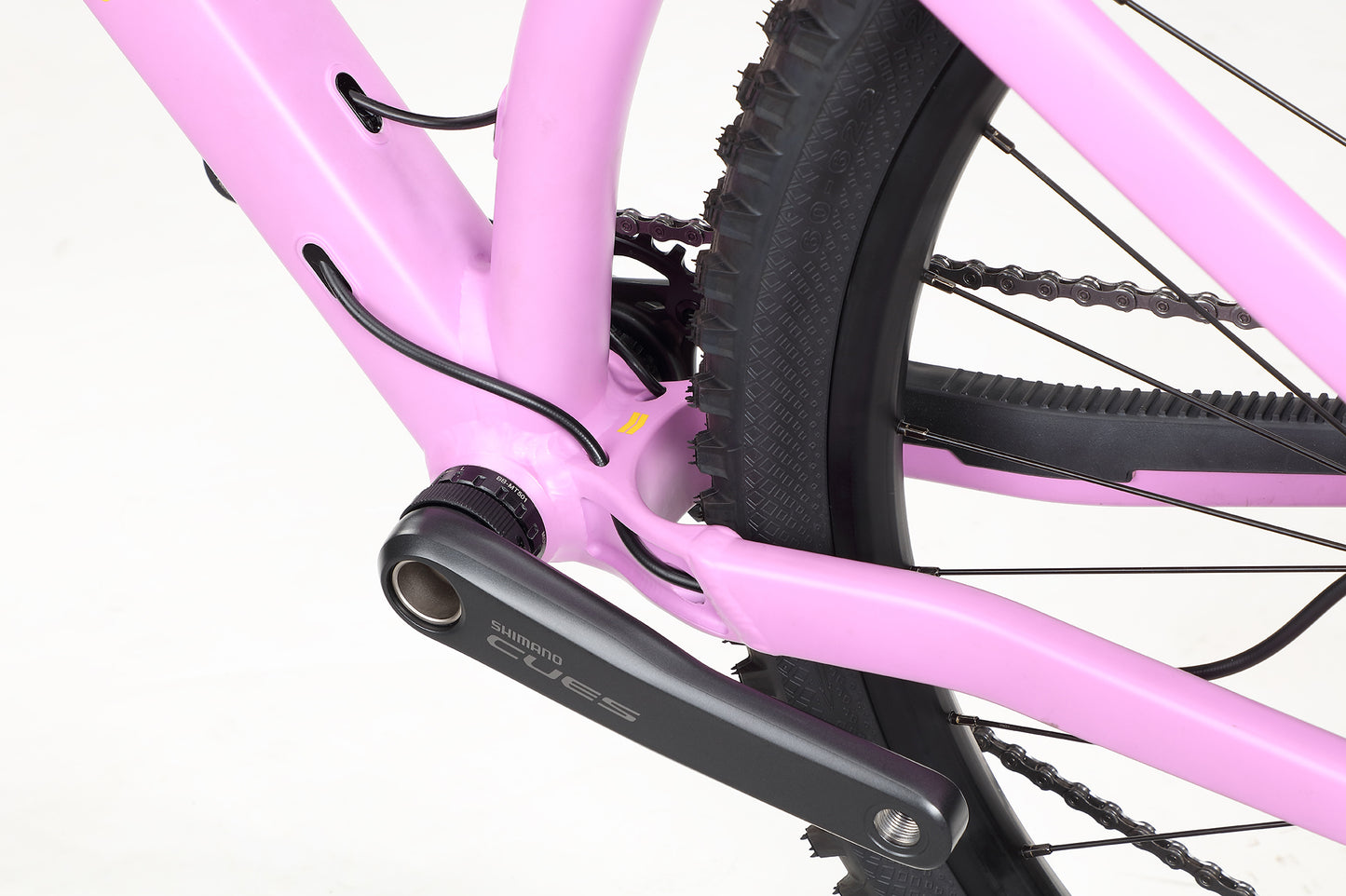

CranksShimano Cues 2-piece. 170mm. 32T chainring
Pedals
Rear DerailleurShimano Cues 11-speed
Derailleur ShifterShimano Cues 11-speed
Freewheel/CassetteShimano Cues 11-speed, 11-50T
WHEELS
TiresTubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4" ATC (rear). Sealant included. Small size features 27.5 X 2.4" rear "mullet" configuration.
Wheels/RimsWTB KOM Team I 30, TCS 2.0, sleeved. 32H
Front HubFully sealed CNC-machined alloy 110x15mm boost thru-axle, 6-bolt disc
Rear HubFully sealed CNC-machined alloy 148x12mm boost thru-axle, 3-pawl cassette, 6-bolt disc
BRAKING SYSTEM
BrakesFront: Tektro HD-M530-F, 4-piston hydraulic disc,180mm rotor /Rear: Tektro HD-M530-R, 2-piston hydraulic disc, 180mm rotor
OTHER COMPONENTS
Grips/TapeWTB Wavelength lock-on
HandlebarHaro Alloy 800mm wide, 20mm rise, 6° back sweep, 4° up sweep
StemSatori Ursa 35mm reach, 0° rise
HeadsetFSA Orbit sealed, tapered 1-1/8" - 1-1/5"
SaddleWTB Volt Medium chromoly rails. PU Leather. Flex-tuned.
Seat PostTranzX JD-YSI34 dropper. Small 150mm, Medium 170mm, Large/X-large 200mm
ExtrasTubeless tire sealant included.

GEOMETRY

Geometry & Sizing
SIZESMLXL
Seat Tube (C-T)350mm405mm430mm480mm
Top Tube (Effective)574.2mm601.2mm633.4mm650.7mm
Head Tube Angle64.5°64.5°64.5°64.5°
Seat Tube Angle76°76.5°76.5°76.5°
Chainstay Length418mm430mm435mm435mm
BB Drop50mm70mm70mm70mm
Wheelbase1156.6mm1195.1mm1234.4mm1253.7mm
Head Tube Length100mm110mm120mm130mm
Standover694mm706mm709mm709mm
Stack Height642.3mm650.8mm659.9mm668.9mm
Reach420mm445mm475mm490mm
Axle to Crown
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size29" Front / 27.5" Re29"29"29"

SIZING GUIDE

Size Table
SizeInchesCM
S5" - 5' 6"153 - 166
M5' 4" - 5' 11"162 - 180
L5' 9"- 6' 2"175 - 187
XL6' - 6' 5"180 - 196
