Shift R7 27.5
Shift R7 27.5
Regular price
$2,349.99
Regular price
$2,349.99
Sale price
$2,349.99
Unit price
/
per
SKU: SKU:11451

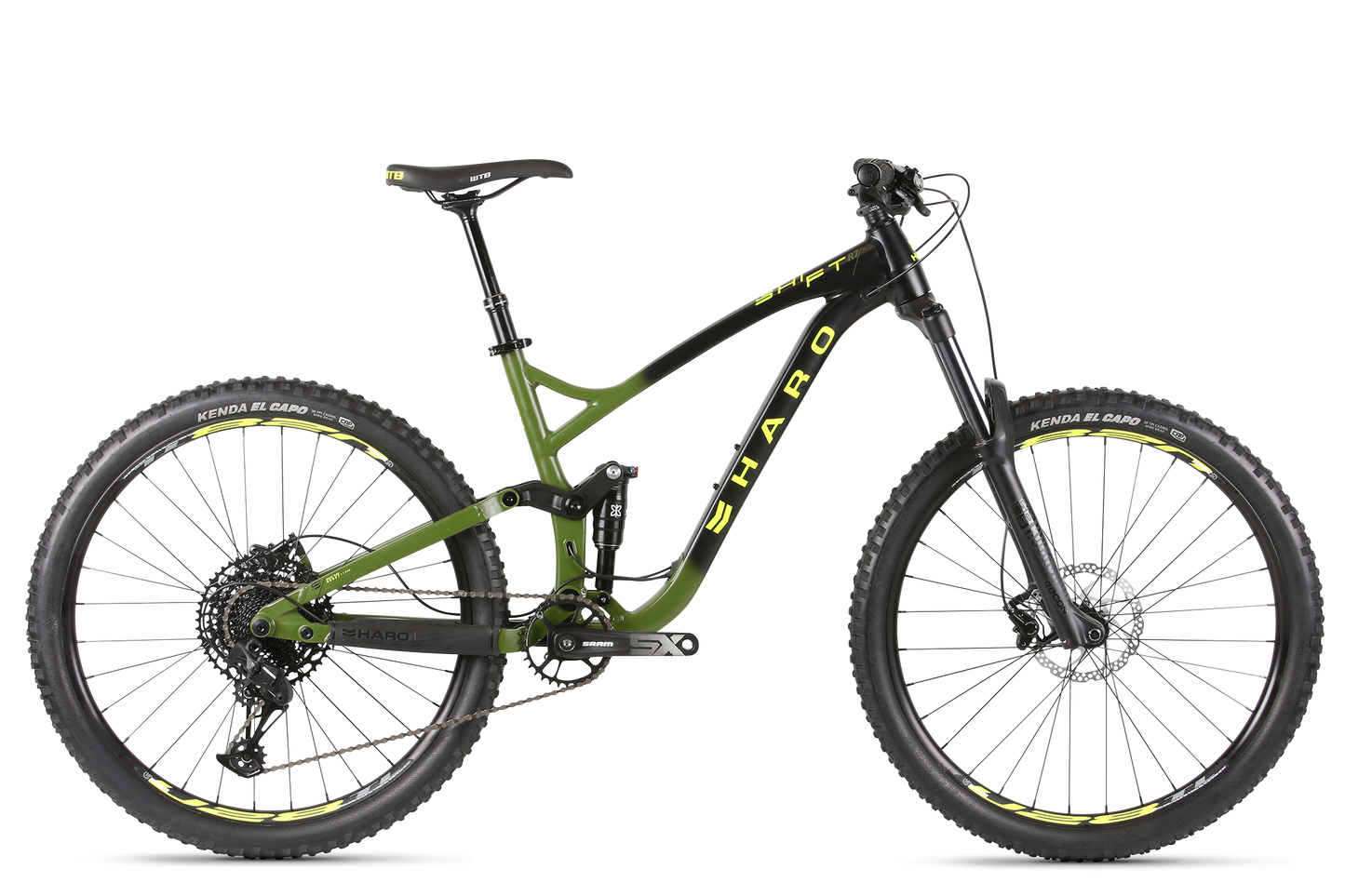

The Shift R7 27.5" is our new foray into All-Mountain riding with a modern geometry and 12-speed components at an affordable price tag. Featuring our Shift R 140mm travel frame with our new 4-bar linkage design, up-to-date geometry and proprietary X6 aluminum tubing, the Shift R7 model is equipped with the Sram SX 12-speed group featuring the DUB Boost crankset, derailleur, shifter and wide ratio 11-50T cassette for easy climbing and crisp shifting. With 150mm of front suspension provided by a Rockshox Recon RL fork and a specifically tuned X-Fusion air rear shock, the Shift R7 will satisfy a large variety of riding styles with its steeper seat tube angle for more efficient pedaling, its slacker head tube angle (at 66 degrees) and longer reach for an improved attack position.
Share
FEATURES
- Shift R X6 Aluminum 4-Bar Linkage frame, 140mm rear travel, Boost thru-axle
- X-Fusion O2 Pro RL Trunnion rear shock w/ lockout
- Rockshox Recon RL Boost fork, 150mm travel
- Sram SX DUB Boost crankset, 32T alloy chainring
- Sram SX 12-spd rear derailleur
- Sram SX 12-spd shifter & 11-50T Eagle cassette
- Kenda 27.5"x2.4" Regolith tires
- Weinmann U-28TL rims, tubeless compatible
- Shimano Deore M400 disc brakes
- X-Fusion Manic 125/150mm internal dropper post & remote
PRODUCT INFORMATION
SPECIFICATIONS
FRAMESET | |
---|---|

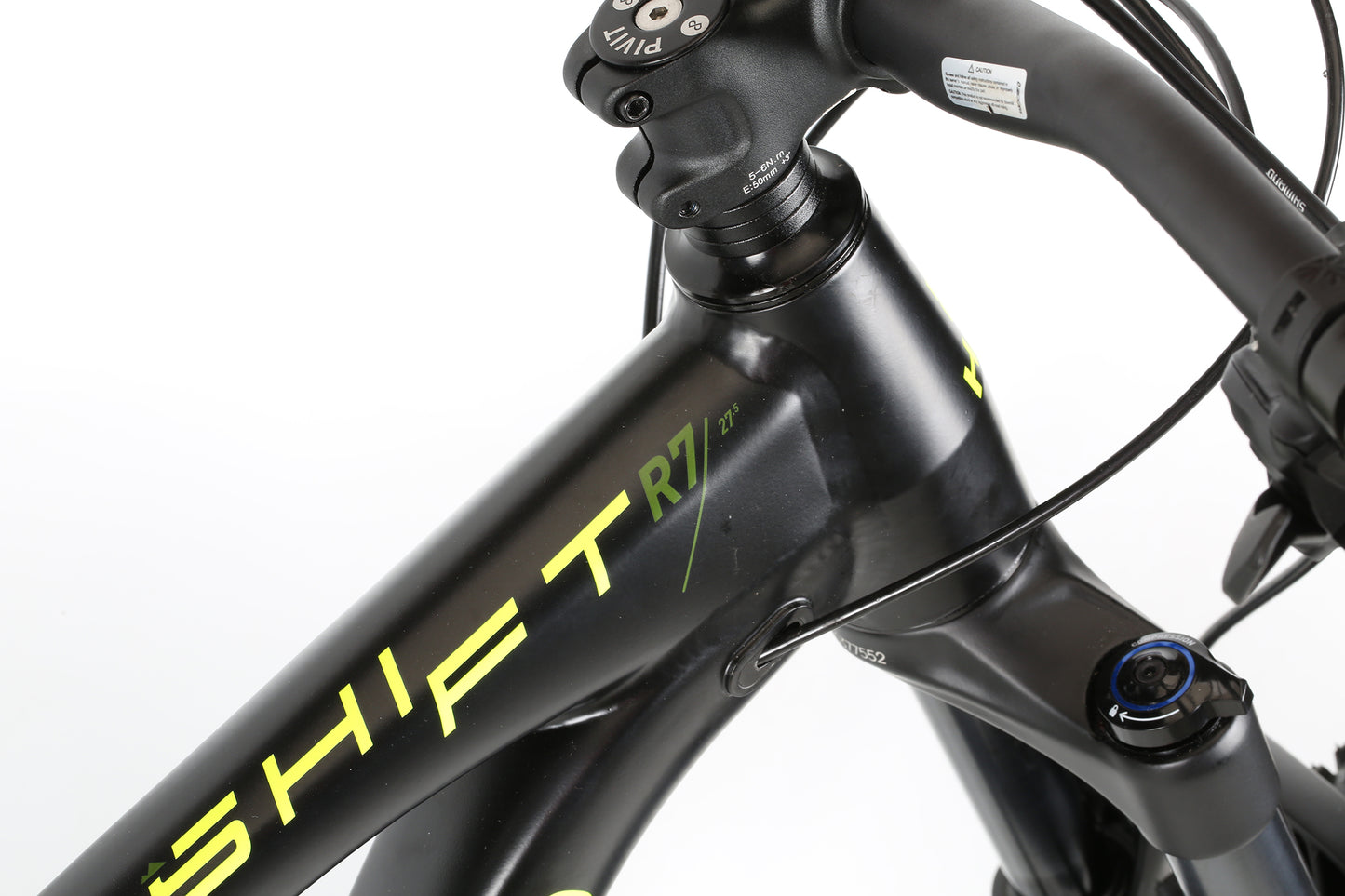

Frame | Shift R X6 Aluminum series dual suspended 4-Bar linkage frame | 27.5"x140mm travel | Tapered 1.5" head tube | 73mm threaded BSA | Enduro bearings | Boost 12mm thru-axle dropouts |
Fork | RockShox Recon RL | 27.5" B | 1.5" Tapered Aluminum steer | 150mm travel | Solo Air hydraulic lockout | 15x110mm Stealth Thru-Axle |

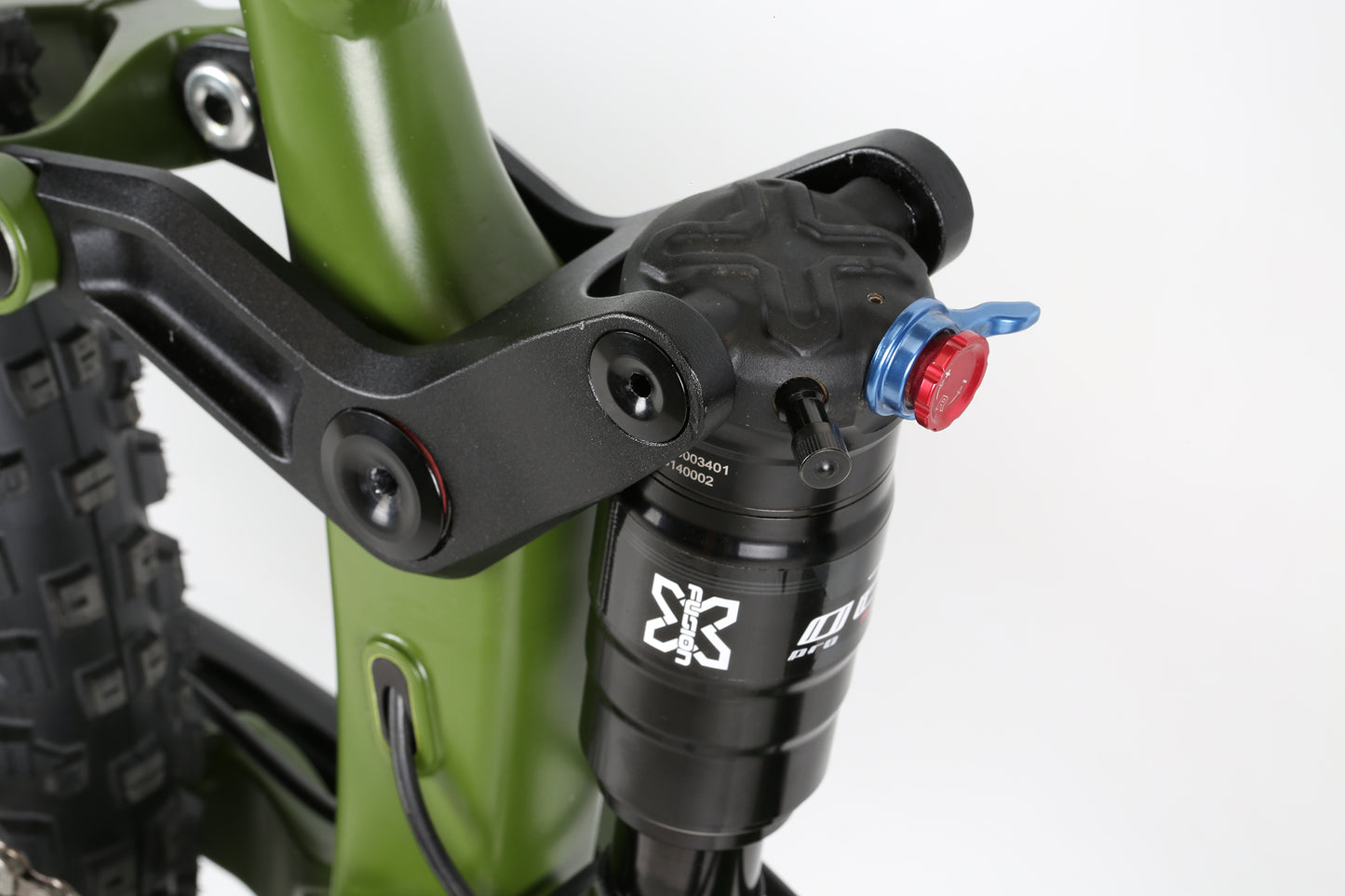

Frame Shock | X-Fusion 02 Pro RL | Trunnion | 185x55mm | Rebound adjuster | Hydraulic lockout |
Colors | Matte Black / Army Green Fade |
DRIVETRAIN | |
Cranks | Sram SX EAGLE BOOST148 DUB 32T Chainring | All sizes 170mm |
Pedals | N/A |
Chain | Sram SX EAGLE 12S Grey | Missing Link |
Bottom Bracket | Sram DUB BSA MTB 73mm | Aluminum cups | sealed cartridge |
Front Derailleur | |
Rear Derailleur | Sram SX-1-A1 12-spd |
Derailleur Shifter | Sram SL SX EAGLE TRIGGER | Right only | 1x12-spd |
Freewheel/Cassette | Sram PG1210 EAGLE 11-50T 12-spd |
WHEELS | |
Tires | Kenda Regolith | 27.5x2.4" |
Wheels/Rims | Weinmann U-28TL Disc 27.5" x 32h | aluminum double wall rims | Tubeless Compatible |
Hubs | Shimano MT400-B | Boost Disc Aluminum 32h | 15x110mm Frt | 12x148mm Rear Thru-Axles |
BRAKING SYSTEM | |
Brakes | Shimano hydraulic BR-MT400 | 180/180mm Center Lock rotors |
Brake Levers | Shimano BL-MT401 hydraulic |
OTHER COMPONENTS | |
Grips/Tape | WTB Weirwolf |
Handlebar | Pivit Aluminum 25mm riser bar 31.8mm | 780mm | 9 Deg. sweep |
Stem | Pivit aluminum Trail 0 Deg. | 4 bolts | Ext.: 40mm |
Headset | FPD DOZER-1160A-2 | 1.5" ACB bottom for 44/56mm head tube | 8mm Top Cone |

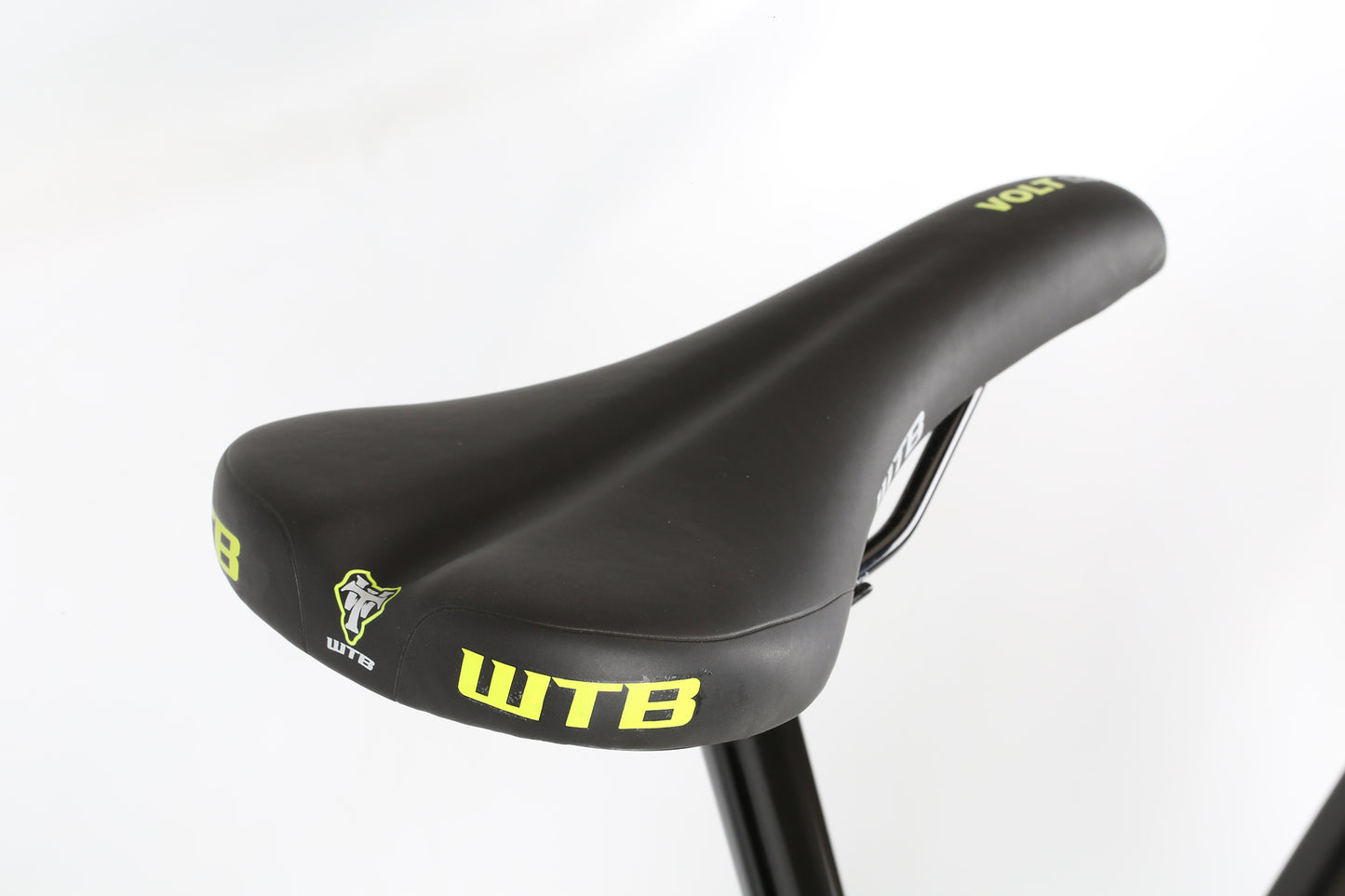

Saddle | WTB Volt Sport w/ color accents |
Seat Post | X-Fusion Manic 125/150mm Dropper post | Shifter-type remote | 31.6x150/125mmx400 |
Seat Clamp | Pivit alloy 35mm quick release |
Extras | Frame bearings by Enduro USA |
GEOMETRY
SIZE | S | M |
---|---|---|
Seat Tube (C-T) | 396mm (15.6") | 433mm (17") |
Top Tube (Effective) | 575mm (22.6") | 603mm (23.7") |
Head Tube Angle | 66° | 66° |
Seat Tube Angle | 76° | 76° |
Chainstay Length | 434mm (17.1") | 434mm (17.1") |
BB Drop | 20mm (0.8") | 20mm (0.8") |
Wheelbase | 1162mm (45.7") | 1191mm (46.9") |
Head Tube Length | 100mm (3.9") | 110mm (4.3") |
Standover | 715mm (28.1") | 732mm (28.8") |
Stack Height | 591mm (23.3") | 600mm (23.6") |
Reach | 425mm (16.7") | 450mm (17.7") |
Axle to Crown | 544mm (21.4") | 544mm (21.4") |
Fork Offset | 46mm (1.8") | 46mm (1.8") |
Stem Length | 40mm | 40mm |
Bar Width | 760mm | 760mm |
Crank Length | 170mm | 170mm |
Wheel Size | 27.5 | 27.5 |
SIZING GUIDE
Size | Inches | CM |
---|---|---|
S | 5'3" - 5'8" | 160 - 172.5 |
M | 5'7" - 5'11" | 170 - 180 |
MANUALS, GUIDES & DOWNLOADS
Downloadable PDFs can be found in Manuals & Guides
T
Thomas mill If looking for a proper full suspension mountain bike this is not the one for you the rims are really bad quality the handle bars aren’t the best. The frame Scratches really easily it’s very heavy when washing water gets in the frame through the stem and seat post. It’s Chinese junk
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
