Steel Reserve 1

Steel Reserve 1

Regular price $599.99
Regular price $899.99 Sale price $599.99
Sale Coming Soon

SKU: 14854

Meet the new Steel Reserve. Our all-new series of dirt jumpers built from the ground up to go sky-high, the SR1 gets you into the game with BMX-inspired feels. Start with an all-chromoly frame with a tapered, integrated head tube to house the rigid, chromoly fork for stiff, responsive control on all terrains. Haro 3-piece chromoly cranks spin on a sealed Euro bottom bracket, with a Halflink chain to pull your rear wheel in for the shortest, most responsive rear end possible. Sealed bearings all around, double-wall rims and a Tektro disc brake bring it on home. For the skatepark, pump track or roasting big sets, the Steel Reserve 1 is ready to go.
Color: Black

View full details

FEATURES

  • Full chromoly frame w/ Integrated HT, Euro bottom bracket
  • 1 1/8" - 1 1/5" Threadless Full chromoly Fork w/ One Piece CNC Internally Threaded Steerer Tube & Tapered Legs
  • Haro Baseline 3-pc chromoly 8 Spline 165mm
  • 28/14
  • Baseline Halflink Chain
  • Alloy 6061 PG; 50mm rise; 35mm bore; 780w; 9° back; 5° up
  • Premium "CK" Grips
  • 26", 36 Hole Alloy, Double Wall, Pinned 30 Inner Width
  • Front - 26x2.4" Kenda booster / Rear - 26x2.35" Haro MS5
  • Tektro Mechanical Disc Brake 160mm Rotor

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame100% Chromoly frame with integrated headtube, Euro BB
Fork100% Chromoly One Piece CNC'd 1 1/8" - 1.5" Internally Threaded Steerer Tube, Tapered Legs
ColorsMatte Black
DRIVETRAIN
CranksBaseline 8 Spline 165mm
PedalsPolycarbonate
ChainBaseline Halflink Chain
Bottom BracketDouble row sealed bearing euro BB
Front Derailleur
Rear Derailleur
Derailleur Shifter
Freewheel/Cassette
WHEELS
TiresFront - 26x2.4" Kenda booster, Rear - 26x2.35" Haro MS5
Wheels/Rims26", 36 Hole Alloy, Double Wall, Pinned 30mm Inner Width

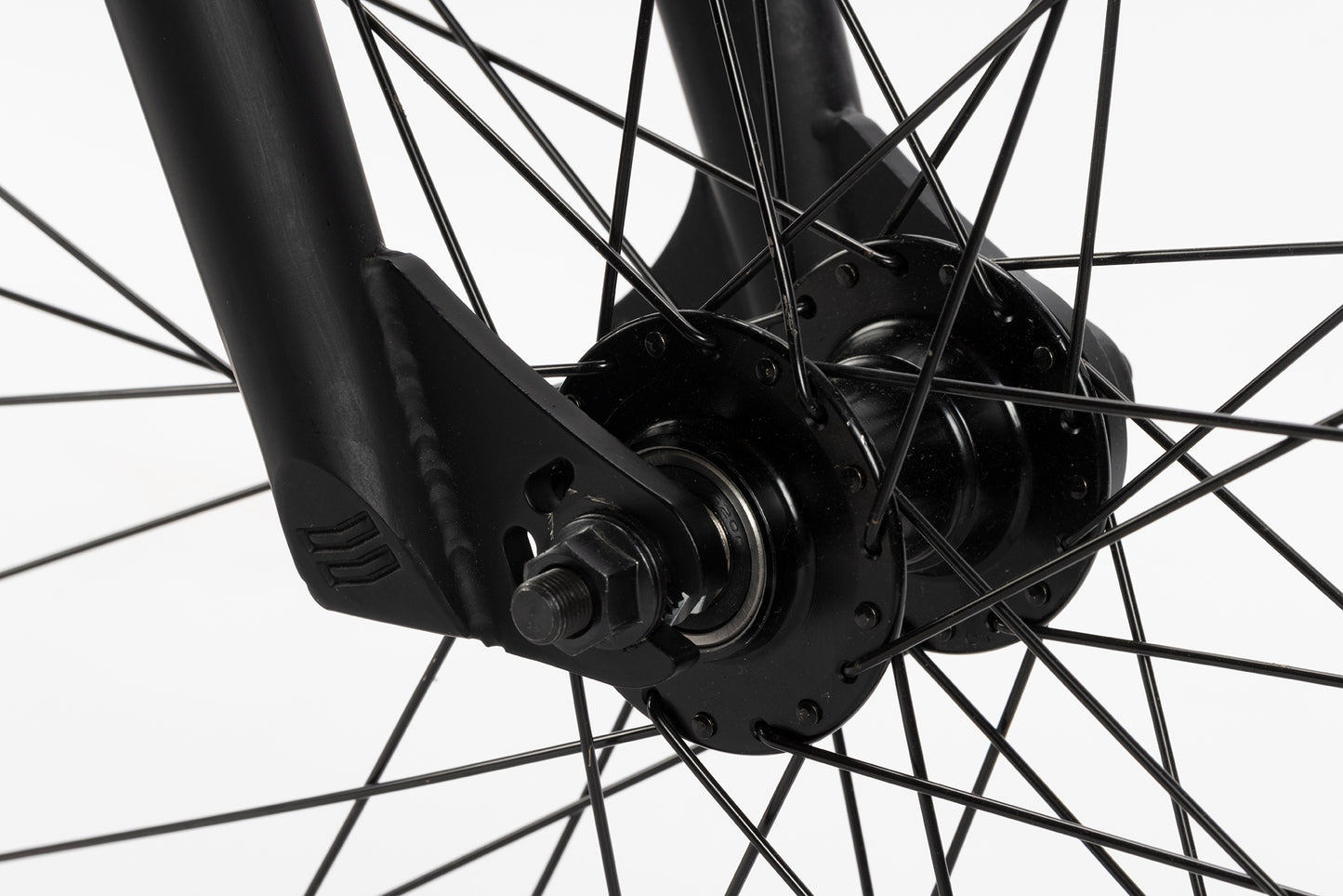

Front HubAlloy double row sealed bearing 3/8" axle
Rear HubAlloy sealed Cassette
BRAKING SYSTEM
BrakesTektro Mechanical Disc 160mm Rotor
OTHER COMPONENTS
Grips/TapePremium "CK" Grips
Handlebar6061 Aluminum 50mm rise, 35mm clamp, 780mm width, 9° back, 5° up
StemAluminum 50mm reach, 35mm clamp
HeadsetFSA 45° X 45° ACB Sealed 1-1/8" - 1.5"
SaddleBaseline 2 Piece
Seat Post27.2 Alloy Pivotal
Seat ClampIntegrated

GEOMETRY

Geometry & Sizing
SIZE
Seat Tube (C-T)320mm
Top Tube (Effective)586.5mm
Head Tube Angle69°
Seat Tube Angle67.5°
Chainstay Length399mm
BB Drop17.5mm
Wheelbase1064.5mm
Head Tube Length112mm
Standover
Stack Height
Reach415mm
Axle to Crown478mm
Fork Offset40mm
Stem Length
Bar Width
Crank Length
Wheel Size
