Steel Reserve 2

Steel Reserve 2

Regular price $1,399.99
Regular price $1,399.99 Sale price $1,399.99
Sale Sold out

SKU: SKU:14865

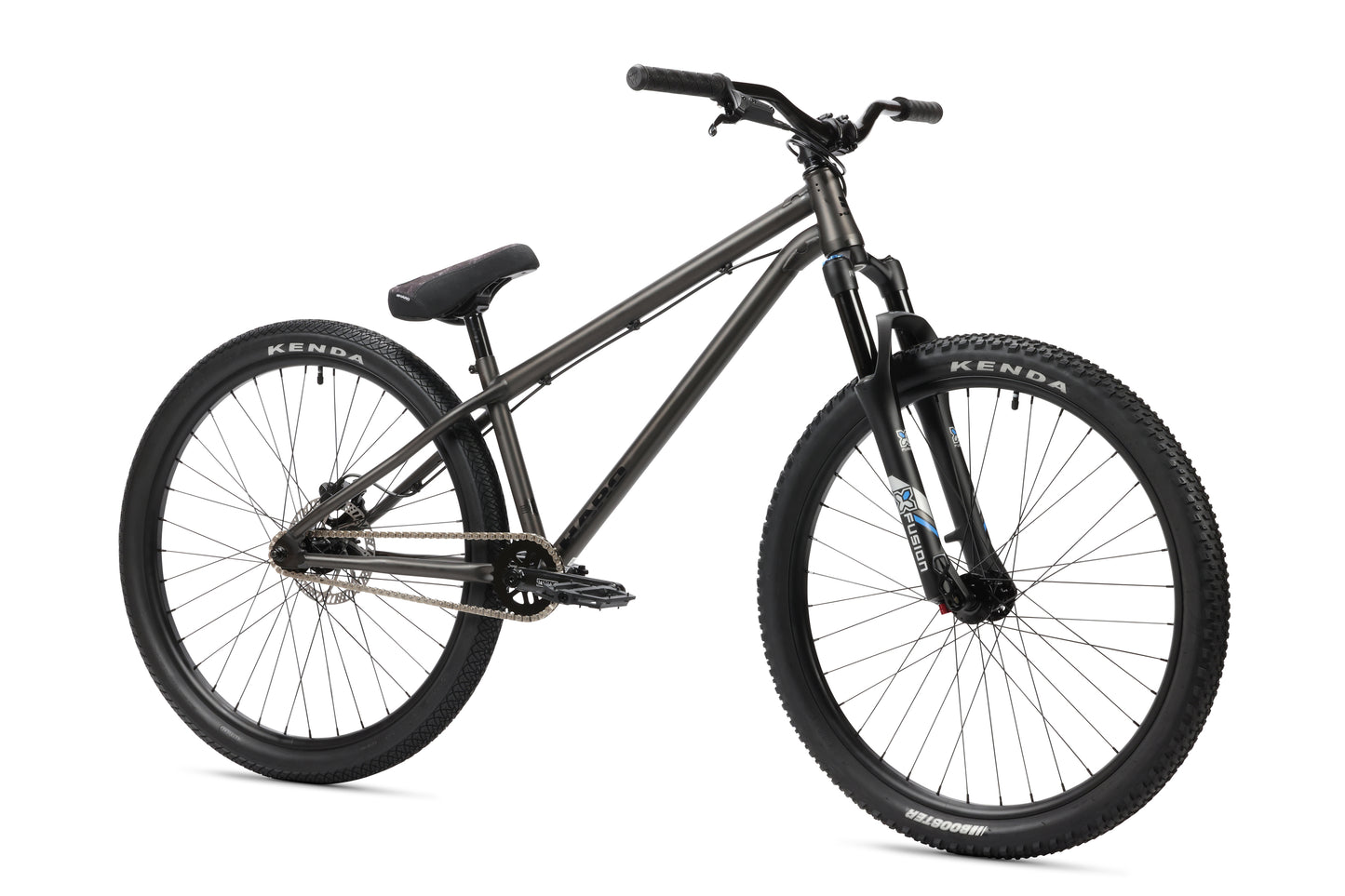

Level up. The Haro Steel Reserve 2 Dirt Jumper features an all-new, all-chromoly frame with a tapered, integrated head tube and gusseted top and down tubes. Other high-end details include cable guides, an integrated seat clamp and chain tensioners to keep it all tight and rattle-free. Updated from previous SR frames with a longer top tube for more room in the front end, balanced with a short rear triangle, the SR2 is just as stable in the air as it is tracking through the turns. A 100mm travel Slant 34 fork takes the brunt of the landings, with BMX-inspired parts like our Baseline 3-piece chromoly cranks, 28T forged sprocket, Pivotal seat/post and Premium CK grips. Sealed bearings all around, double-wall 36h rims and a hydraulic disc rear brake slows this rig down when and if the need arises.
Color: Black

View full details

FEATURES

  • Full chromoly frame w/integrated HT, Euro BB, integrated chain tensioners
  • SLANT 34 fork, Thru-axle 15mm, tapered alloy steerer, 1-1/8"-1.5", 26" x 100mm Travel
  • Haro Baseline 3-pc chromoly 8-spline. 165mm
  • 28T Forged alloy sprocket
  • 28/14
  • Baseline Halflink chain
  • Alloy 6061 PG bars; 50mm rise; 35mm bore; 780w; 9° back; 5° up
  • Premium "CK" Grips
  • 26", 36 Hole Alloy, Double Wall, Pinned 30 Inner Width
  • Front - 26x2.4" Kenda booster SRC / Rear - 26x2.25" Kenda 360 SRC
  • Tektro Auriga Hydraulic Disc Brake; 160mm Rotor

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame100% Chromoly frame with integrated headtube, Euro BB, integrated chain tensioners
ForkX-Fusion SLANT 34, 15mm thru axle, Alloy Tapered Steerer, 100mm Travel
ColorsMatte Black, Atlantic Blue
DRIVETRAIN
CranksBaseline 8-Spline Chromoly 165mm
PedalsPolycarbonate with replaceable pins
ChainBaseline Halflink Chain
Bottom BracketDouble row sealed bearing Euro BB
Front Derailleur
Rear Derailleur
Derailleur Shifter
Freewheel/Cassette
WHEELS
TiresFront - 26x2.4" Kenda booster SRC, Rear - 26x2.25" Kenda 360 SRC
Wheels/Rims26", 36 Hole Alloy, Double Wall, Pinned 30mm Inner Width
Front HubCNC Alloy Sealed Bearing 15mm through axle
Rear HubAlloy sealed Cassette
BRAKING SYSTEM
BrakesTektro Auriga Hydraliuc Disc Brake 160mm Rotor
OTHER COMPONENTS
Grips/TapePremium "CK" Grips
Handlebar6061 Aluminum 50mm rise, 35mm clamp, 780mm width, 9° back, 5° up
StemAluminum 50mm reach, 35mm clamp
HeadsetFSA 45° X 45° ACB Sealed 1-1/8" - 1.5"
SaddleBaseline Pivotal
Seat Post27.2 Alloy Pivotal
Seat ClampIntegrated

GEOMETRY

Geometry & Sizing
SIZE
Seat Tube (C-T)320mm
Top Tube (Effective)586.5mm
Head Tube Angle69°
Seat Tube Angle67.5°
Chainstay Length399mm
BB Drop17.5mm
Wheelbase1064.5mm
Head Tube Length112mm
Standover
Stack Height
Reach415mm
Axle to Crown478mm
Fork Offset40mm
Stem Length
Bar Width
Crank Length
Wheel Size
