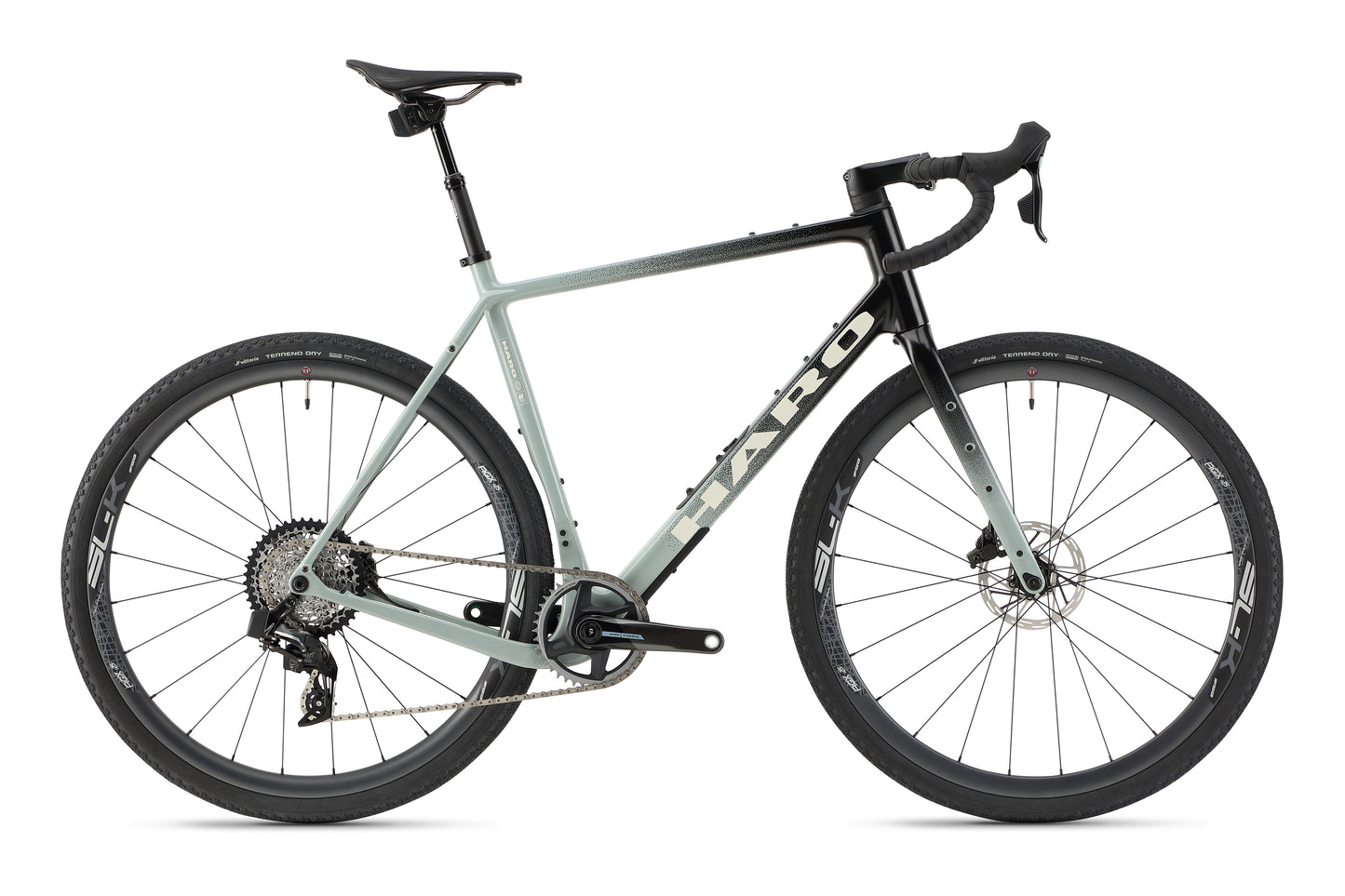

Buzzard Carbon Top Shelf

Buzzard Carbon Top Shelf

Regular price $6,999.99
Regular price $6,999.99 Sale price $6,999.99
Sale Sold out

SKU: SKU:45427

Some days speed and efficiency are king, and we need to get to the finish line - fast. Other days, gravel roads beckon us to explore off the beaten path. With its split personality - both race-oriented and self-sufficient - the Buzzard is ready for it all. Our versatile carbon gravel bike has a long front triangle for stability and a short rear end with flared chain stays that make it easy to whip through tight singletrack. In-frame downtube storage and 18 mounts accommodate racks, fenders and panniers for multi-day adventure rides. Internal cable routing, UDH compatibility and space for wide tires (up to a 45c in the rear) make the Buzzard sleek and functional. Whether it's a quick gravel grind, a destination race, or an epic bikepacking adventure, the Buzzard will take you on roads less traveled. Built on a lightweight carbon frame and fork, the Top Shelf Buzzard is spec'd for the most efficient combination of speed and technical performance. Featuring a SRAM Force 1x group, FSA SL-K AGX tubeless carbon wheels and Vittoria Terreno Dry gravel tires, it's our race-day rig. Plus, a RockShox Reverb wireless dropper post lets you drop your saddle for those spicy drop-bar descents.
Color: Black / Copper
Size

View full details

FEATURES

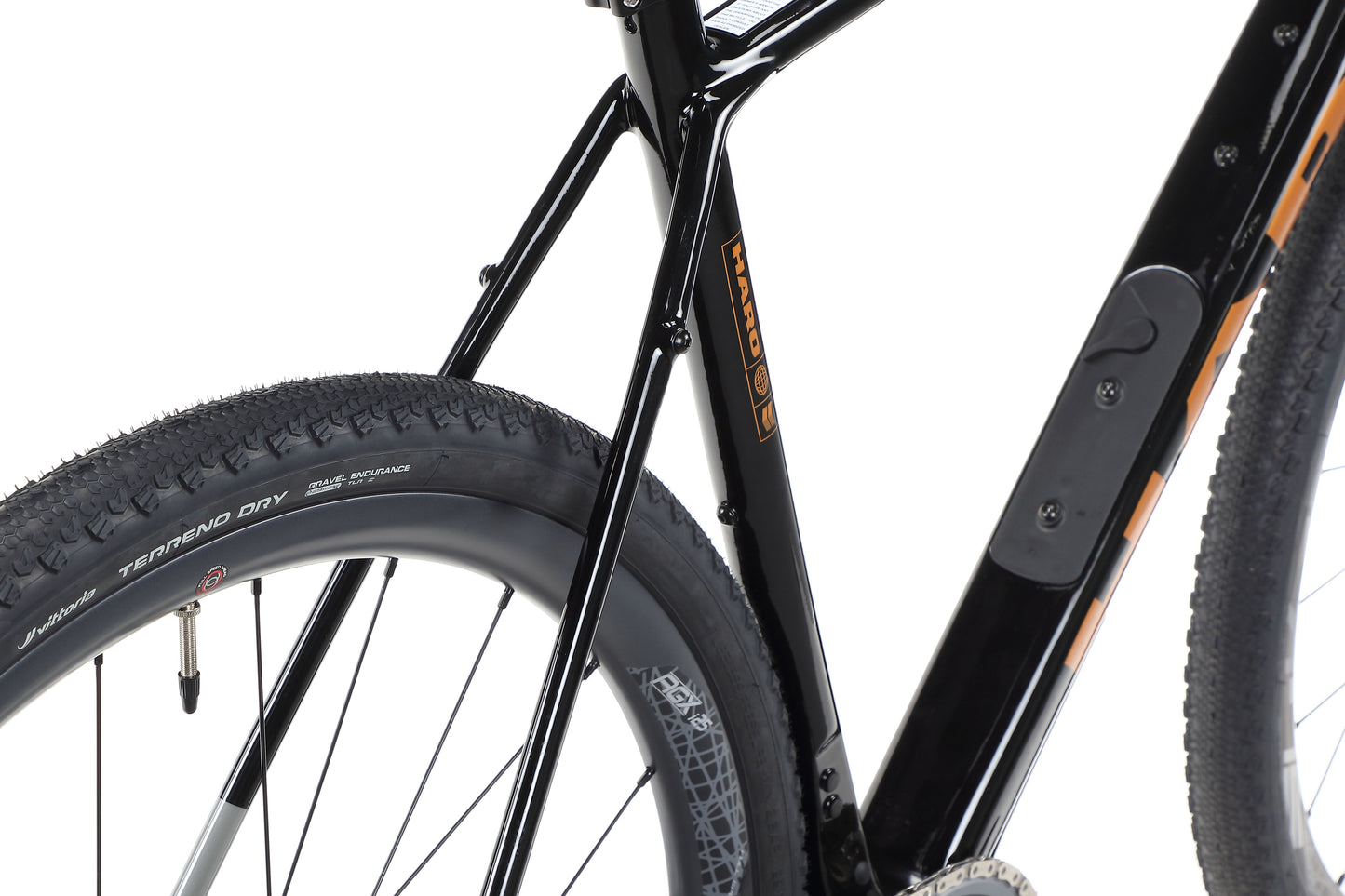

  • Haro Buzzard Carbon Frame, including in-frame storage, and internal headtube routing
  • Haro Buzzard Fork, Full Carbon, tapered steerer tube
  • SRAM Force XPLR AXS 1x Groupset
  • SRAM Force Hydraulic Disc Brakes with 160mm Rotors
  • Vittoria Terreno Dry G2.0 TNT 45-622 IC Graphene 120TPI 700X45c
  • FSA Carbon SL-K AGX i25 tubeless wheelset
  • Easton EC90 AX Carbon Handlebars, size specific
  • Selle San Marco Shortfit 2.0 Open-Fit Manganese rails
  • RockShox Reverb AXS Dropper Post, ø27.2 / 75mm Drop
  • 3D forged 6061-T6 Alloy Stem for Internal Headset Routing
  • Includes Tubeless Valves, Tape and Sealant

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameHaro Buzzard Carbon Frame, including in-frame storage, and internal headtube routing
ForkHaro Buzzard Fork, full carbon, tapered steerer tube
ColorsGloss Jet Black Grey / Copper, Semi-Gloss Slate Blue Black Fade / White
Weight19.4 lbs 8.8 kg, (56cm)
DRIVETRAIN

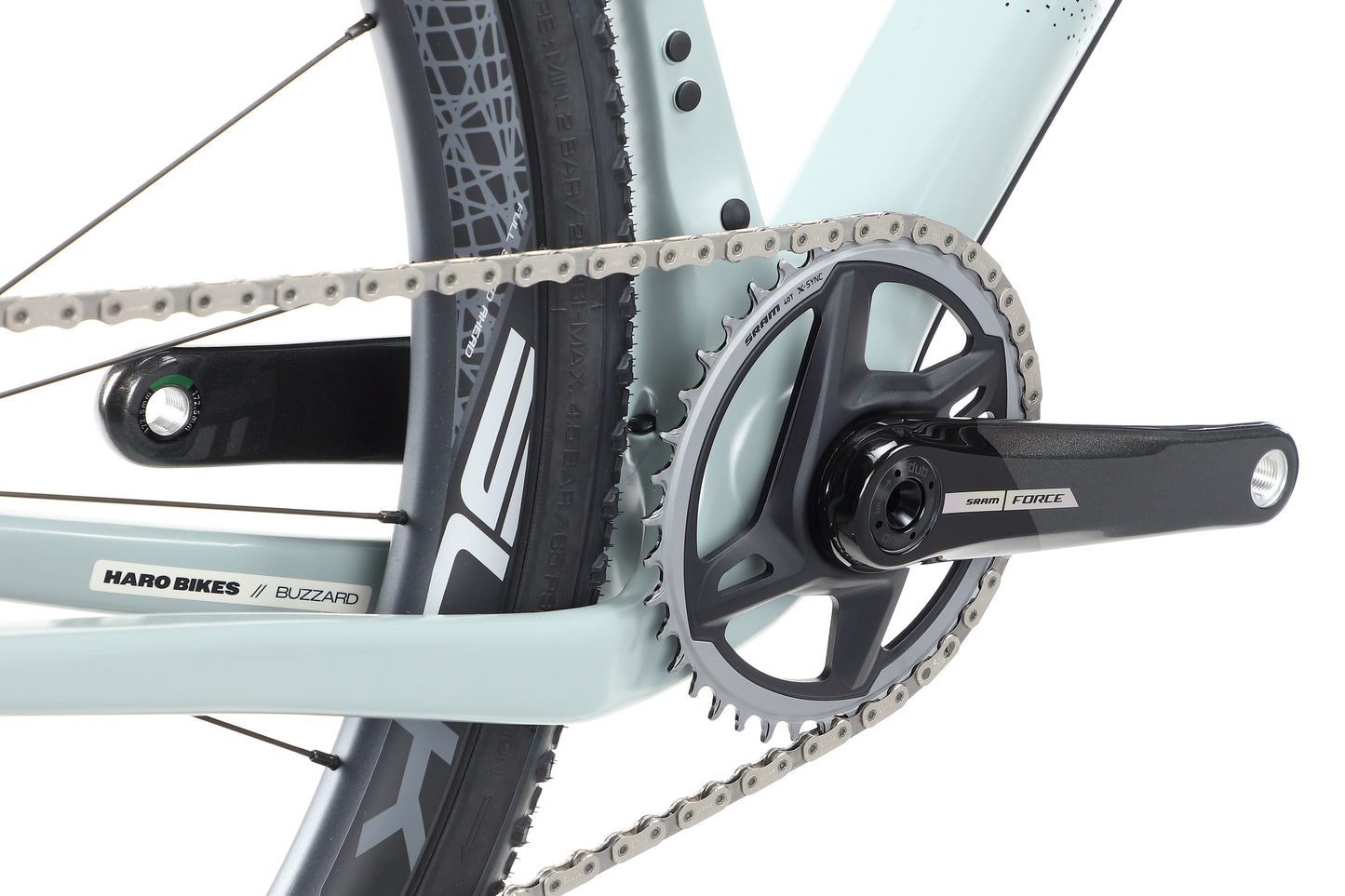

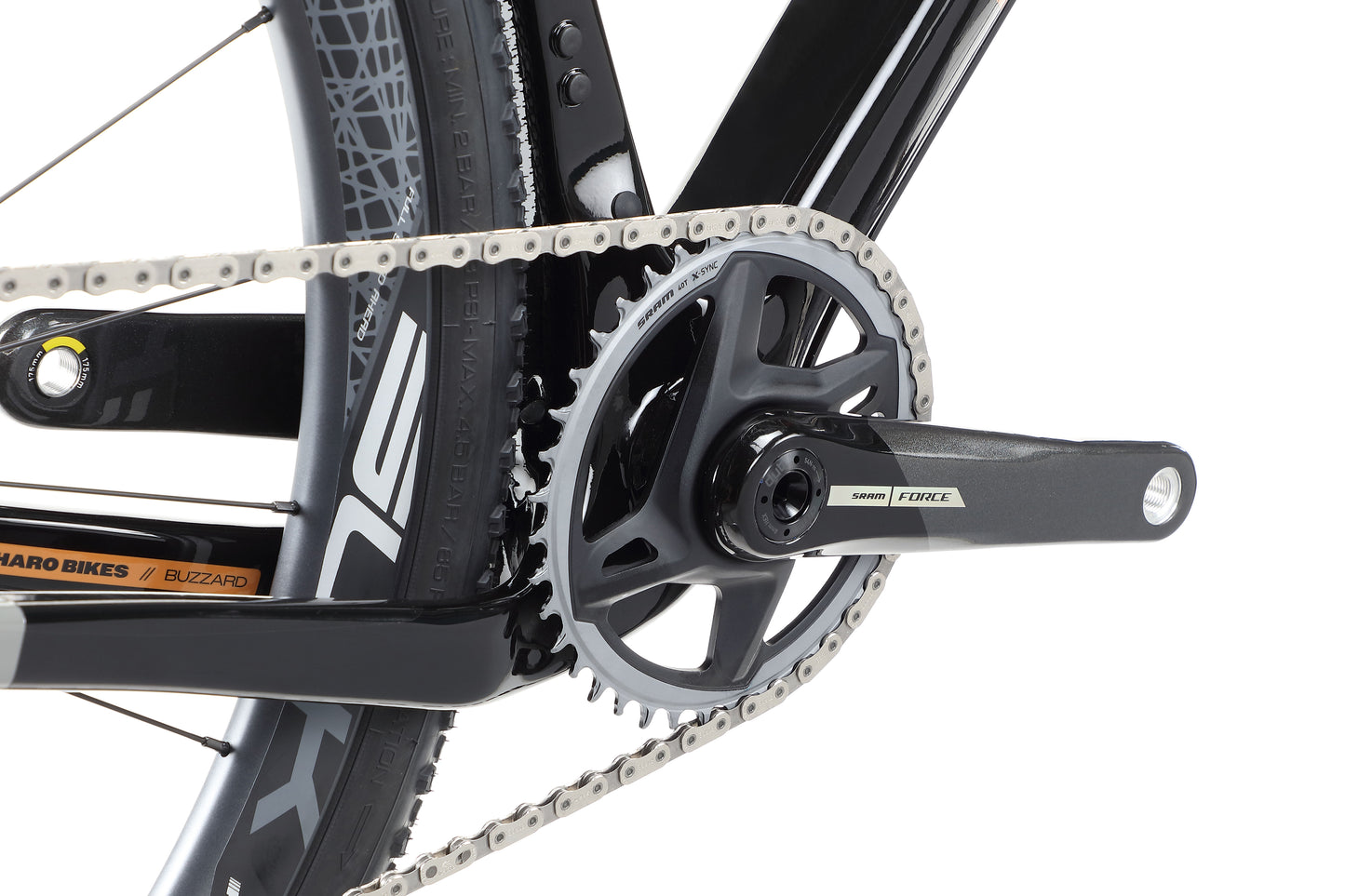

CranksSRAM Force XPLR 40T; XS-165mm, S-170mm, M-172.5mm, L&XL-175mm
Pedals
ChainSRAM Force 12-speed
Bottom BracketSRAM DUB T47 x 85.5w
Front Derailleur

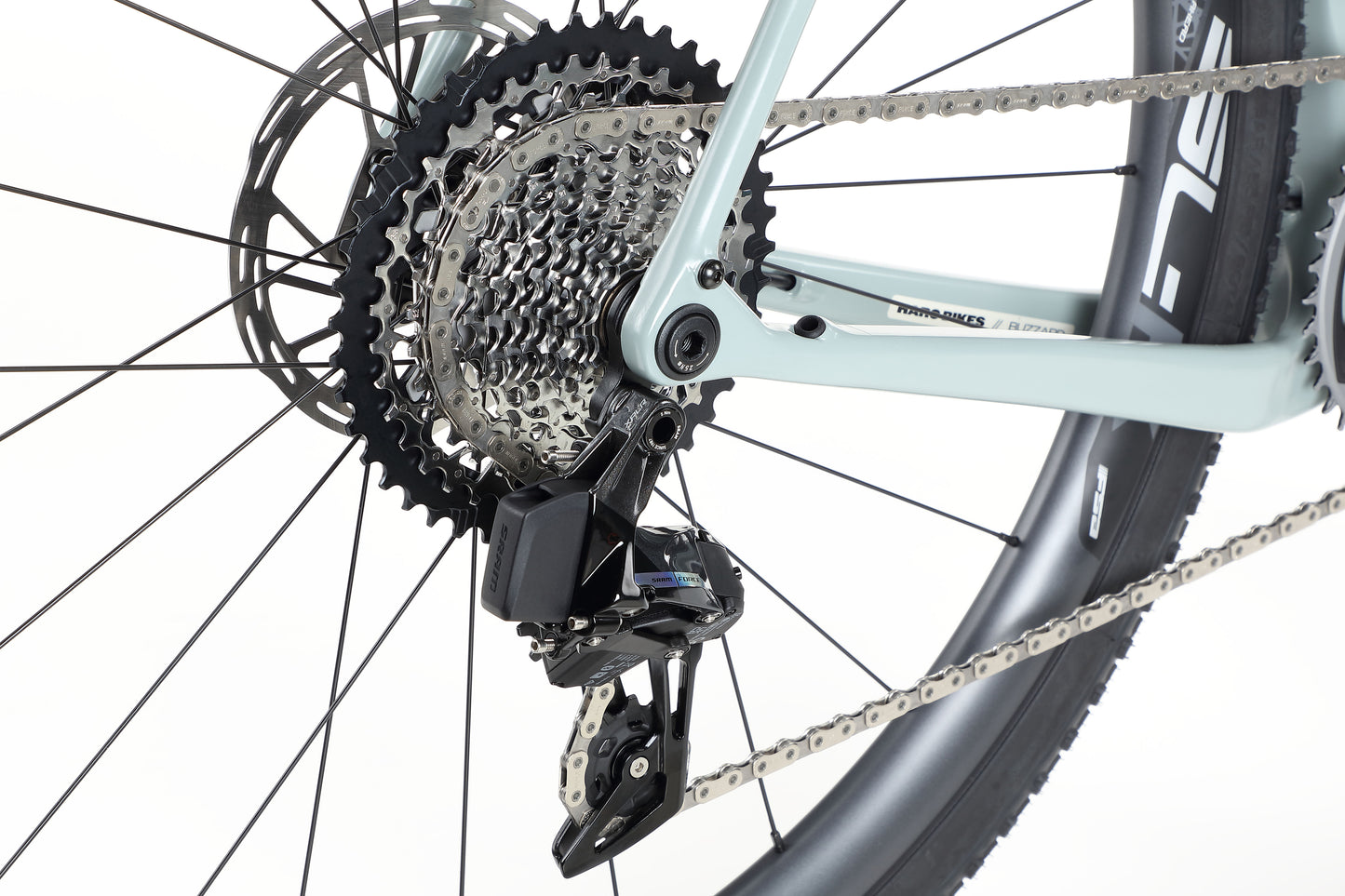

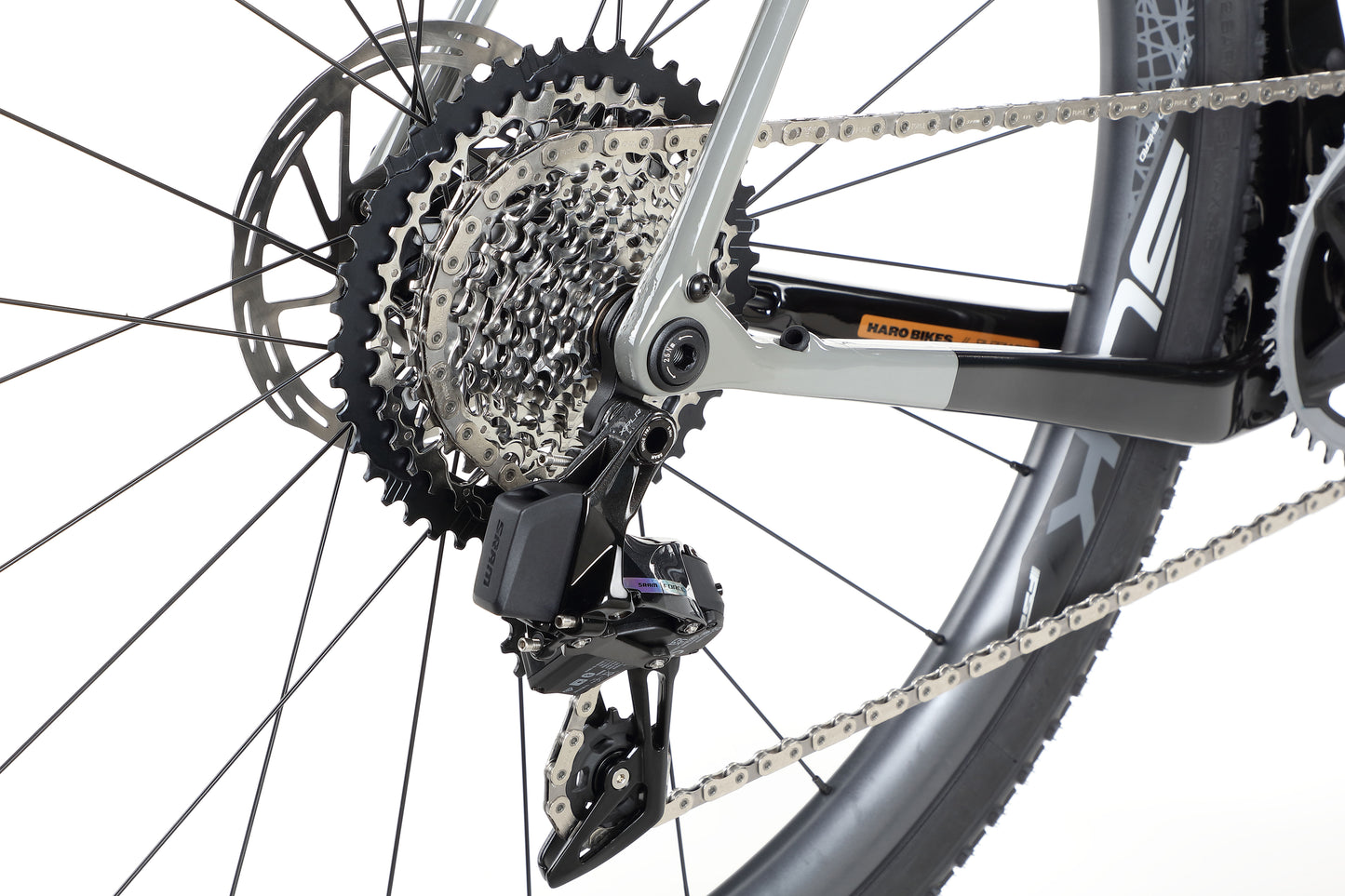

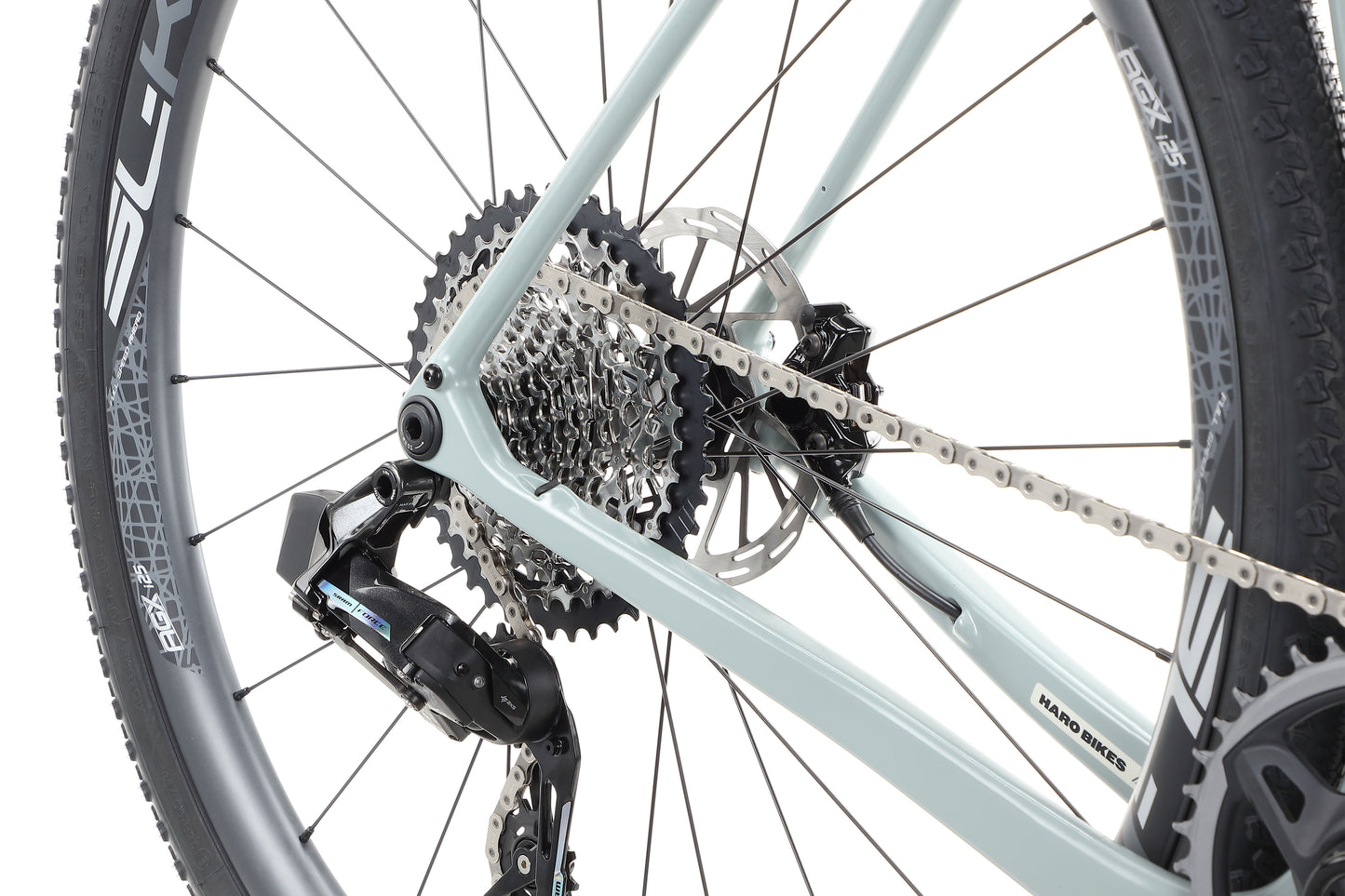

Rear DerailleurSRAM Force AXS XPLR 12-speed
Derailleur ShifterSRAM Force AXS 1x12
Freewheel/CassetteSRAM Force XG-1271 XPLR 10-44T
WHEELS
TiresVittoria Terreno Dry G2.0 TNT 45-622 IC Graphene 120TPI 700X45c
Wheels/RimsFSA Carbon SL-K AGX i25
BRAKING SYSTEM

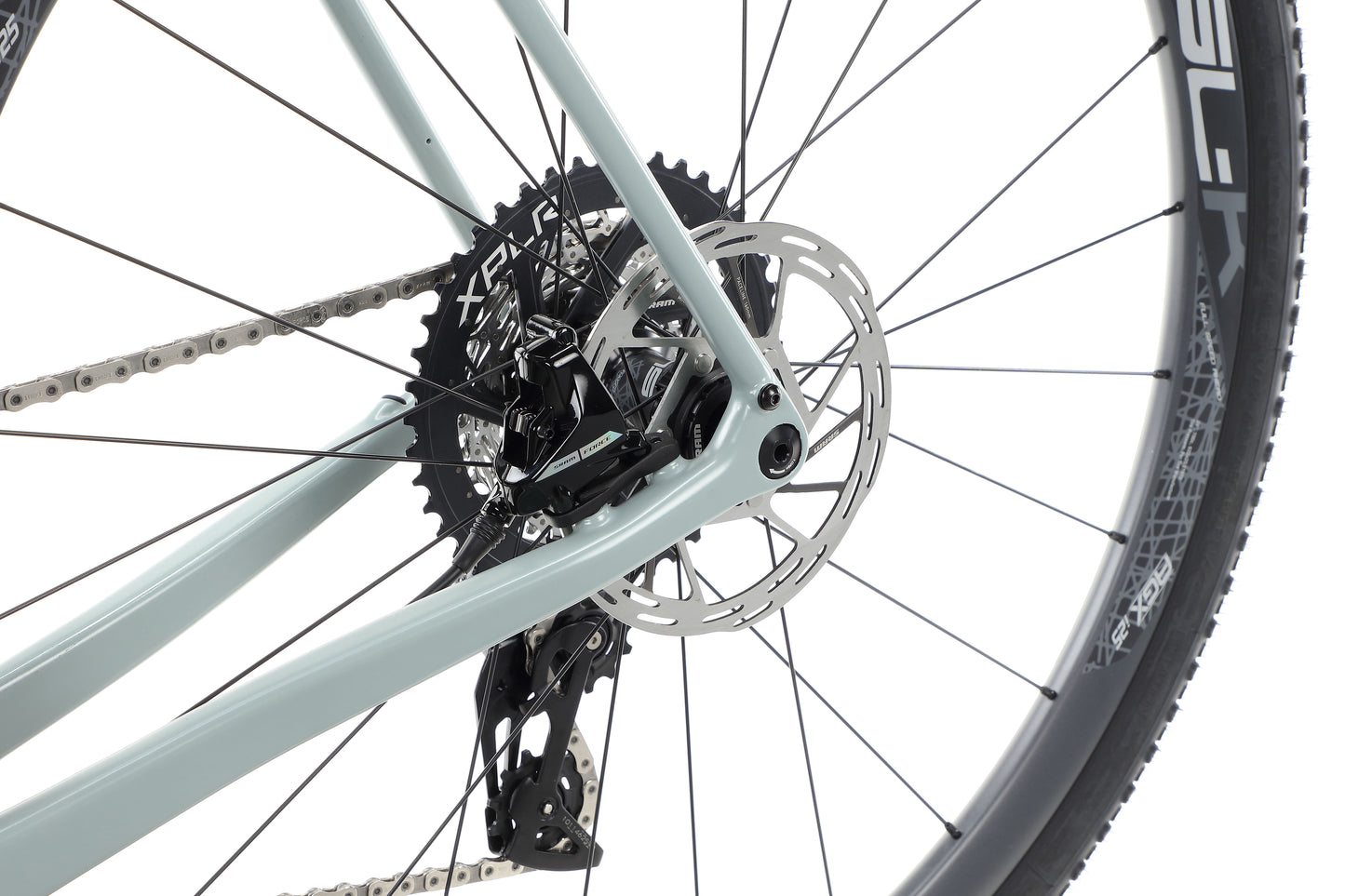

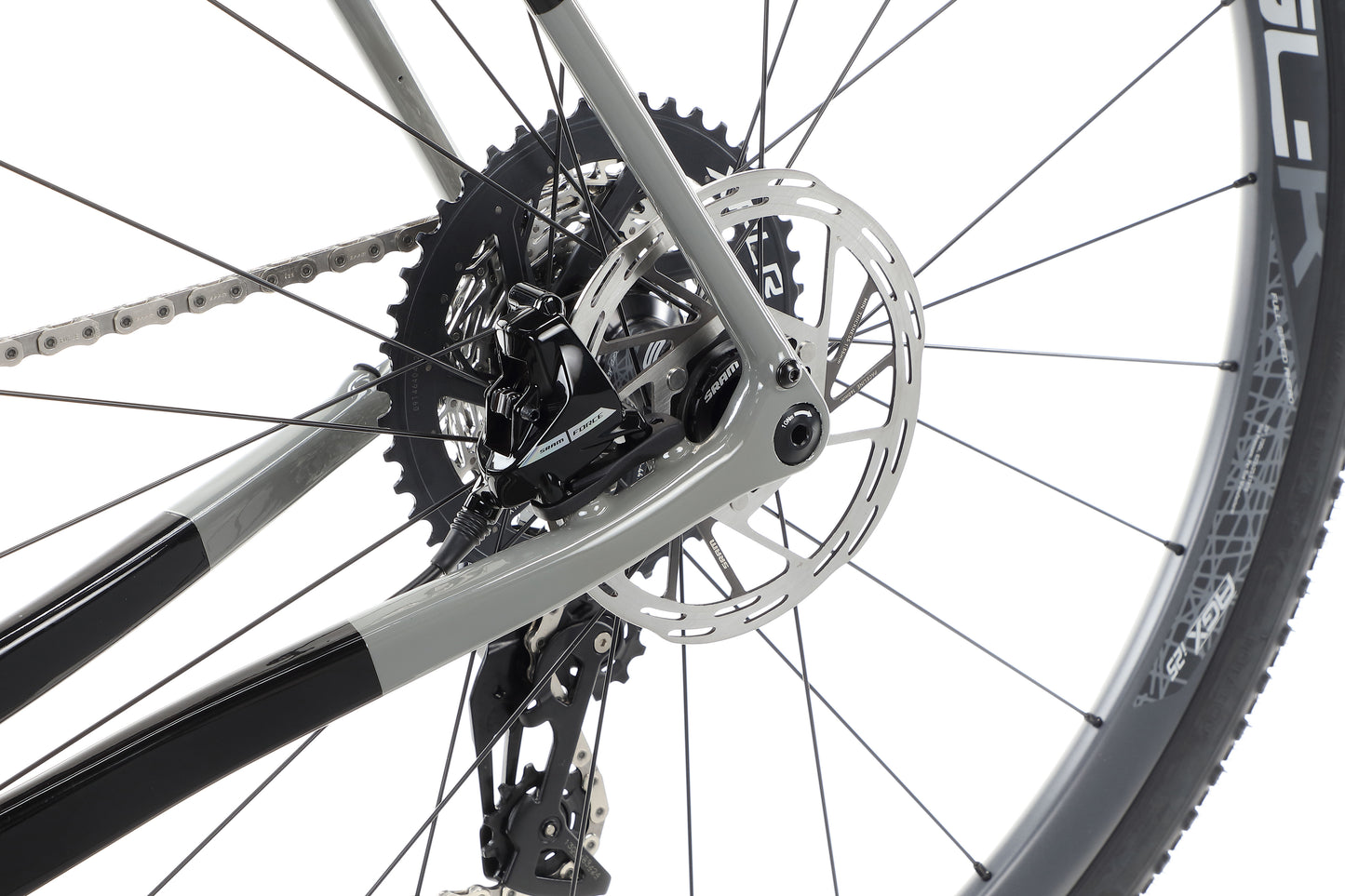

BrakesSRAM Force Hydraulic Disc Brakes with 160mm Rotors

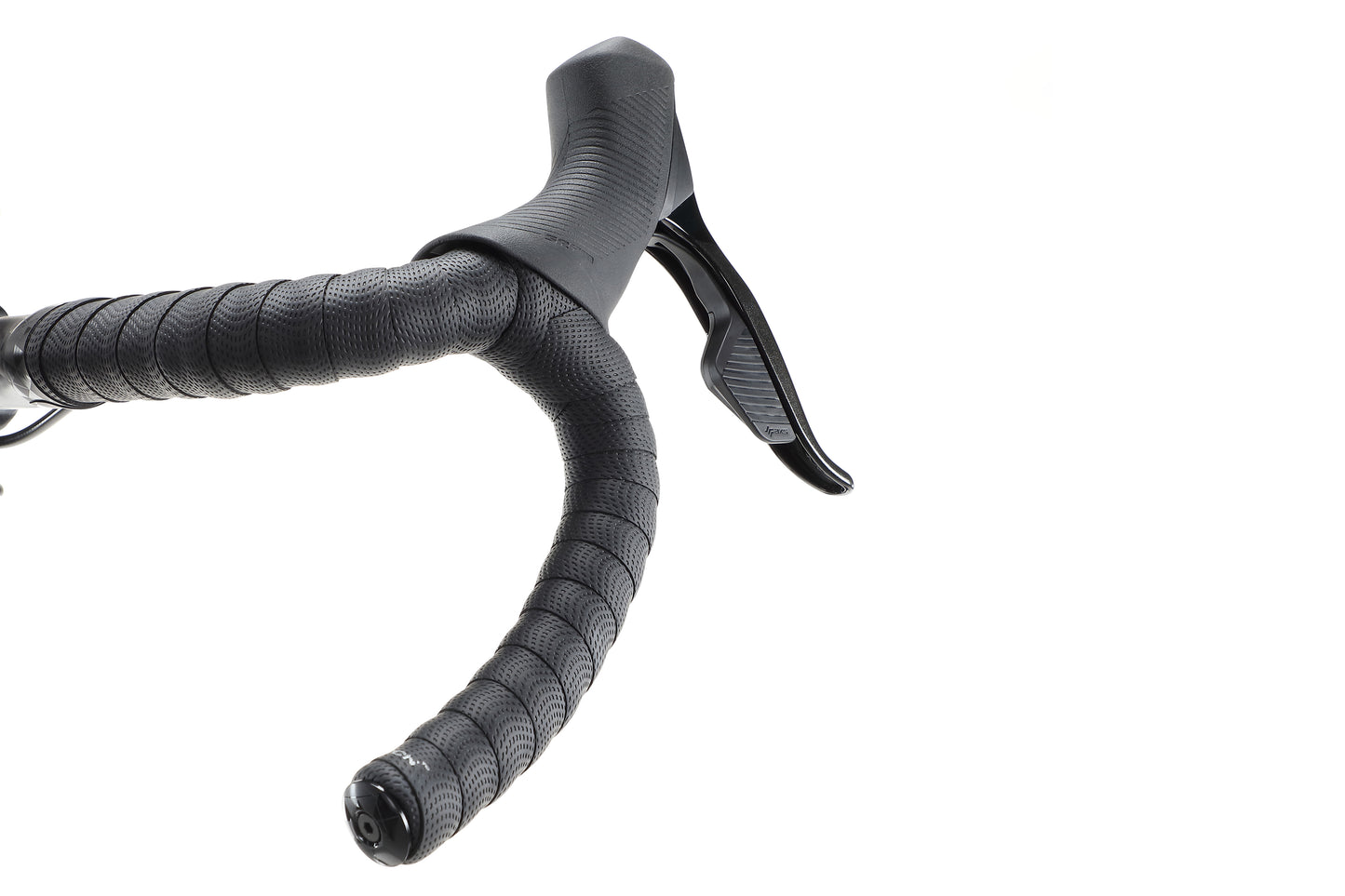

Brake LeversSRAM Force
OTHER COMPONENTS
Grips/TapeCiclovation Advanced leather touch
HandlebarEaston EC90 AX Carbon; XS-40cm, S-42cm, M-44cm, L & XL-46cm

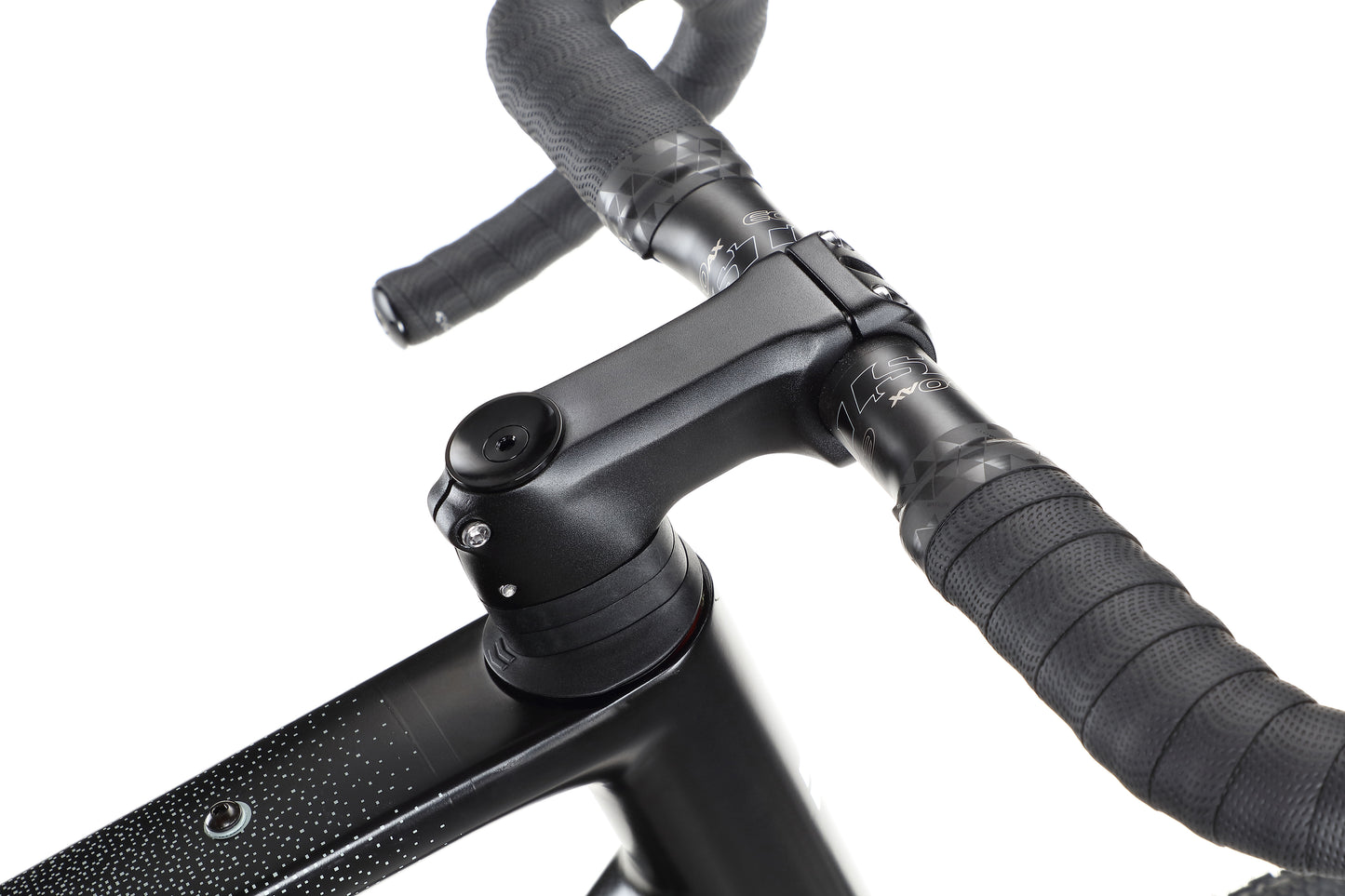

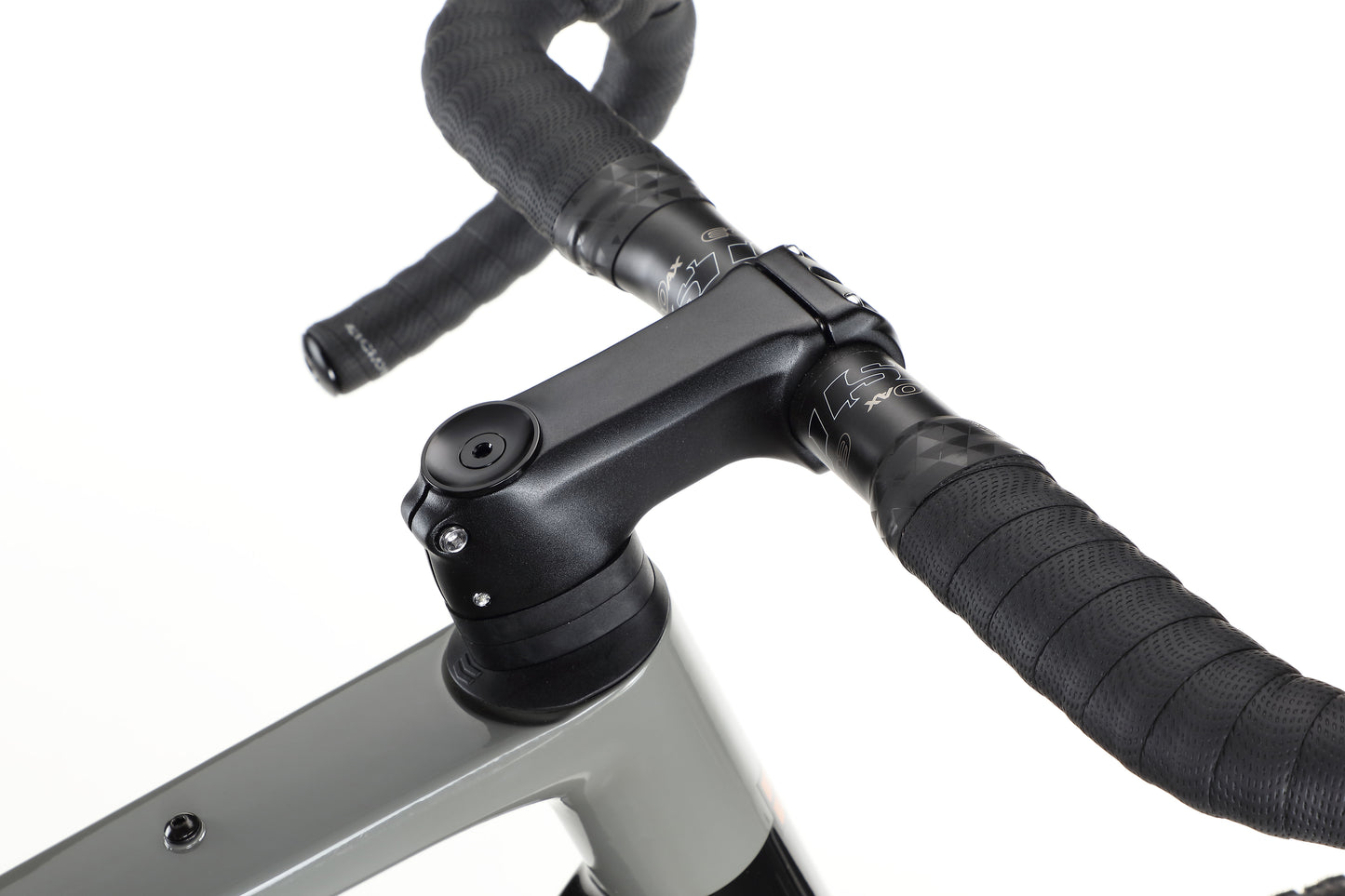

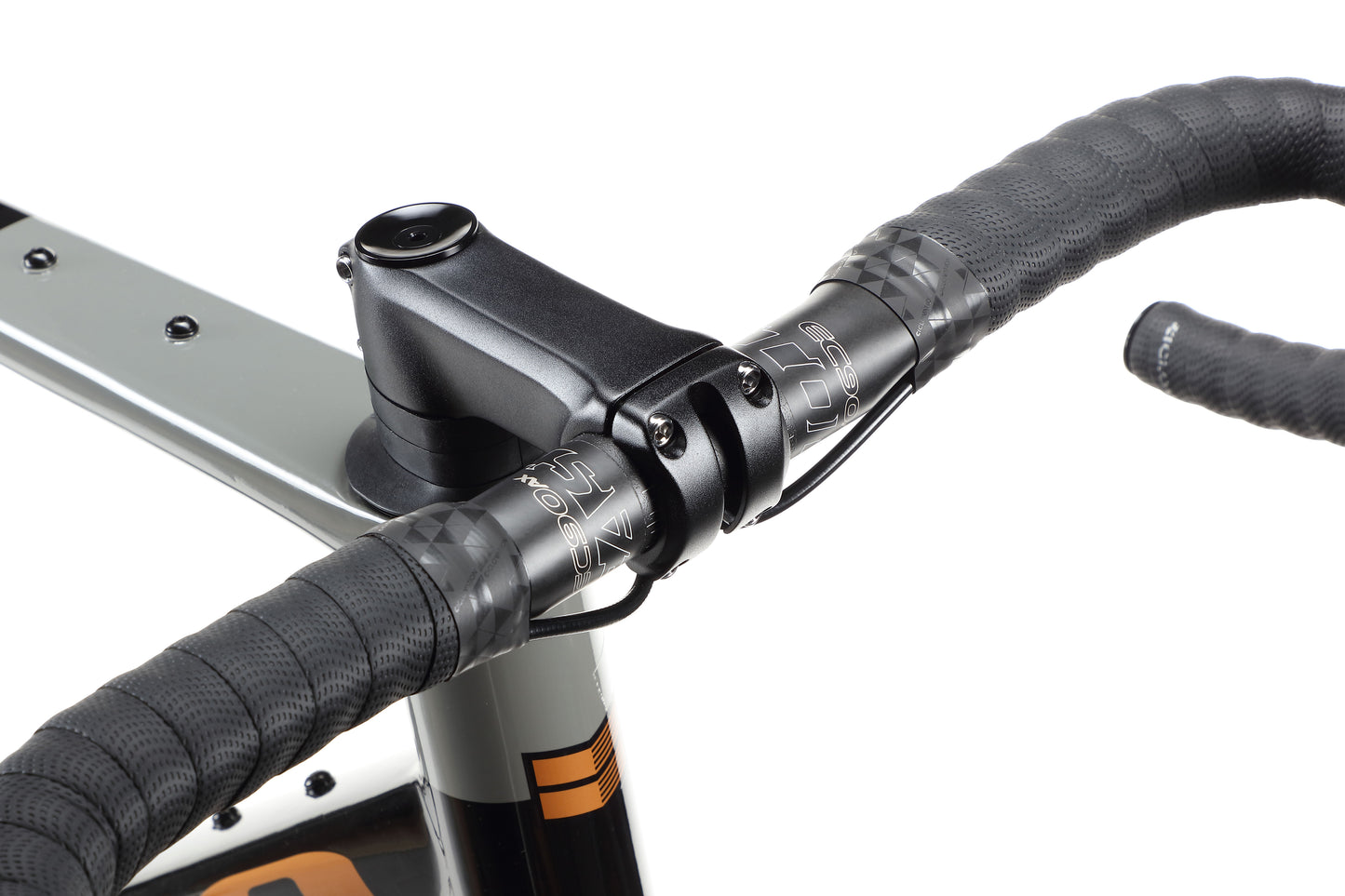

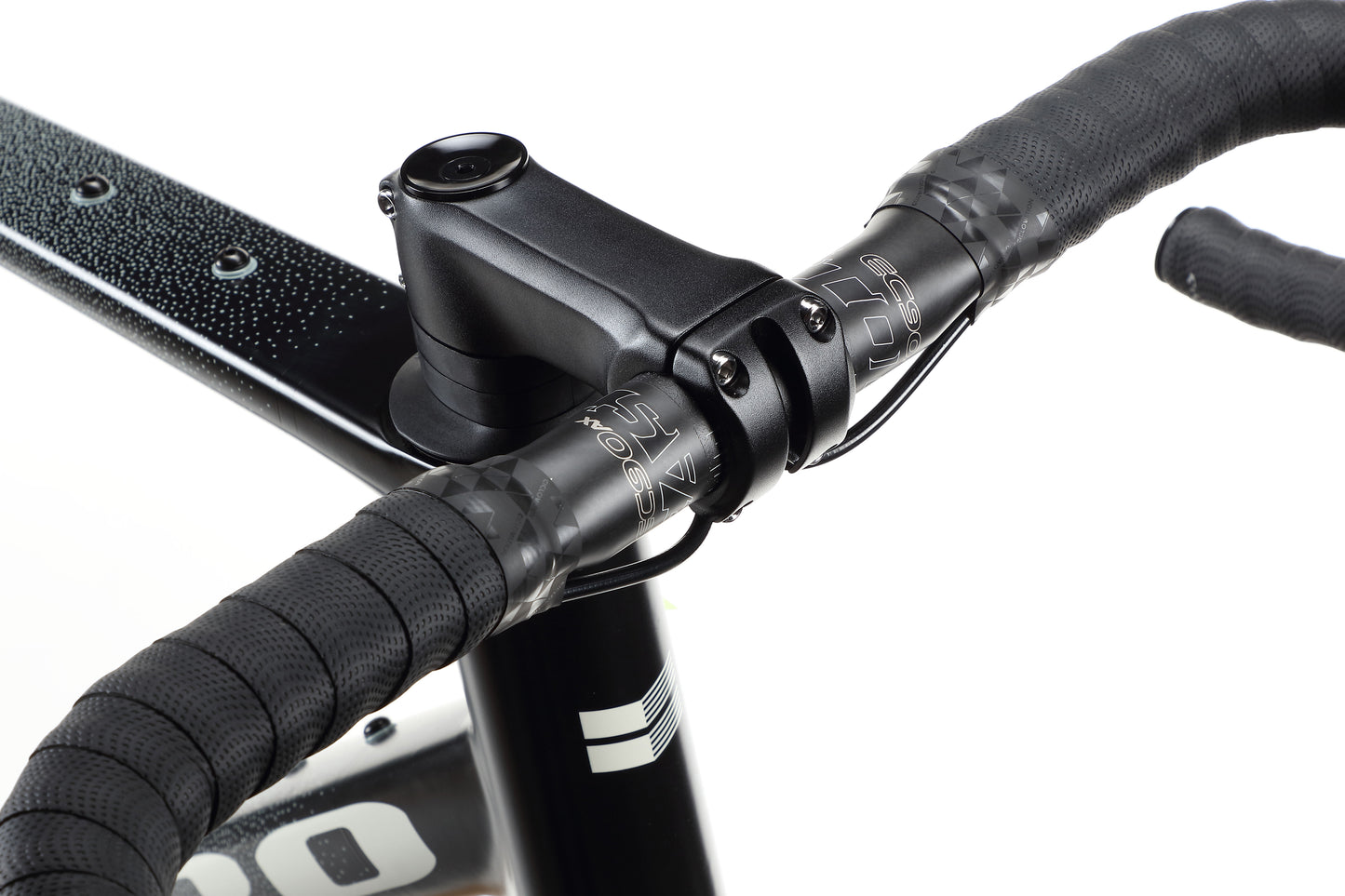

Stem3D forged 6061-T6 Alloy, for Token A-Box; XS & S-70mm, M-80mm, L & XL-90mm
HeadsetToken A-Box Headset with internal cable routing

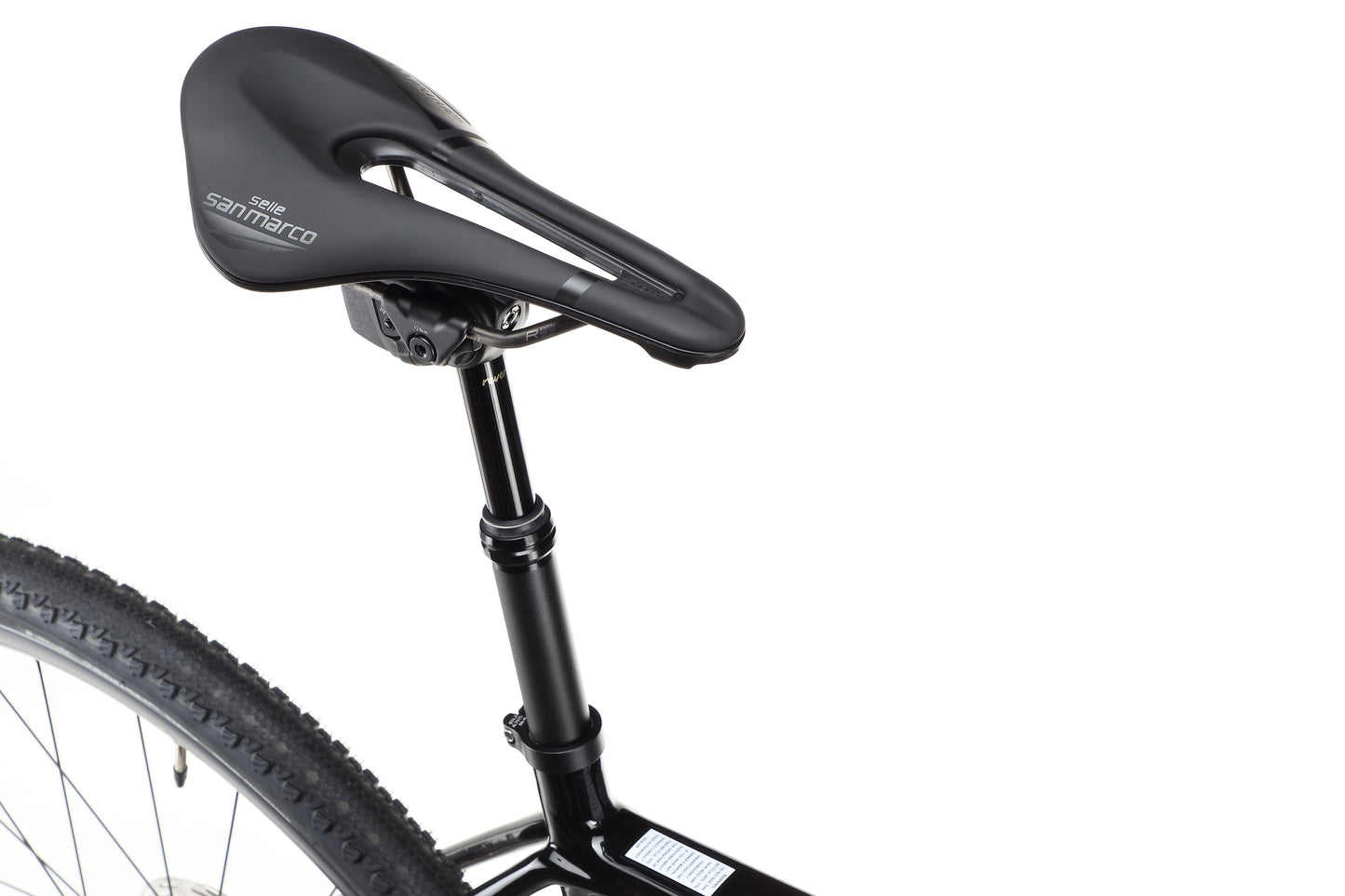

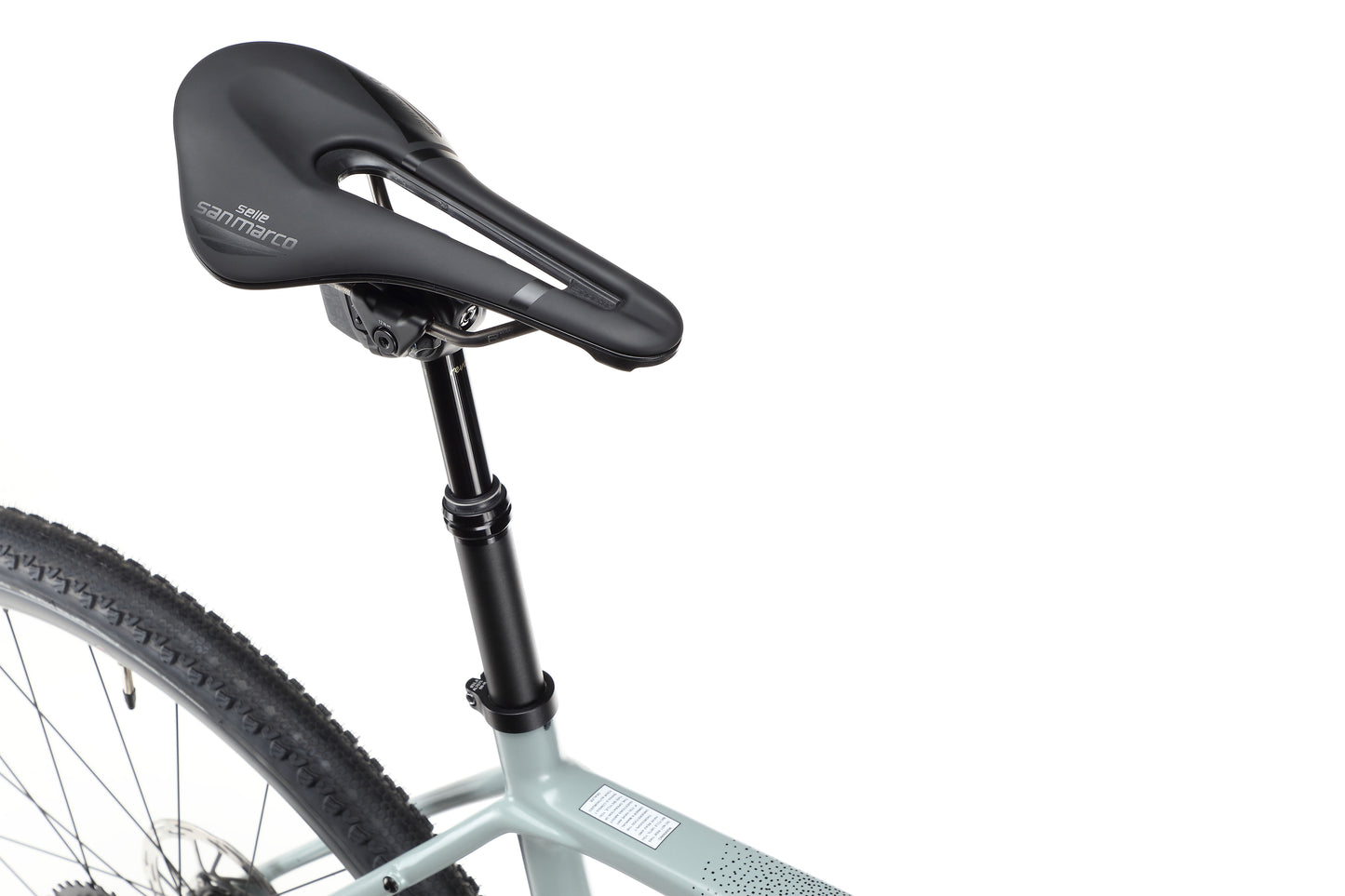

SaddleSelle San Marco Shortfit 2.0 Open-Fit Manganese rails
Seat PostRockShox Reverb AXS ø27.2 / 75mm drop
Seat ClampHaro 3D forged 6061-T6 alloy
ExtrasIncludes tubeless valves, tape and sealant

GEOMETRY

Geometry & Sizing
SIZE4851545659
Top Tube (Effective)535mm553mm569mm586mm603mm
Seat Tube (C-T)436mm462mm491mm512mm541mm
Stack Height519mm545mm571mm596mm622mm
Reach377mm386mm395mm404mm413mm
Standover751mm776mm804mm826mm853mm
Head Tube Length101mm129mm148mm175mm202mm
Head Angle71°71°72°72°72°
Seat Angle73°73°73°73°73°
Wheel Base1009mm1027mm1024mm1041mm1059mm
Chainstay415mm415mm415mm415mm415mm
BB Drop70mm70mm70mm70mm70mm
Axle to Crown
Fork Offset65mm65mm55mm55mm55mm
Stem Length
Bar Width
Crank Length
Trail
Wheel Size

SIZING GUIDE

Size Table
SizeInchesCM
485'1" - 5'4"153 - 163
515'4" - 5'7"163 - 170
545'7" - 5'11"170 - 175
565'11" - 6'2"175 - 180
596'2" - 6'5"180 - 188
