CK AM

CK AM

$799.99
$799.99 $799.99
Sale Sold out

SKU: 23467

Hit the streets like Chad Kerley on his new signature Haro complete. A bike designed to encompass Chad's riding style and lifestyle, custom-tuned with his specific geometry and vibe. Chad's got the swag to pull this signature bike off and you won't find another frame with these characteristics. Keeping it clean yet fun with custom decals highlighting Chad's personality.
Color
Size

View full details

FEATURES

  • Full chromoly frame with 1-1/8" steerer tube and mid BB shell; 20.75" top tube
  • Full chromoly 1-1/8" threadless w/internally threaded steerer tube & tapered legs. 25mm offset
  • Haro chromoly 9" rise 2-piece bars
  • Haro Baseline stem
  • Premium CK grips
  • Haro Baseline chromoly 48 spline 19mm cranks; 165mm length
  • Sealed front hub and sealed rear freescoaster hub, laced to 36H double wall rims
  • 25/9 gear ratio
  • Haro Base line half link chain
  • Premium CK 2.4" Tires
  • Note: Pictured hub guards are not included.

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET

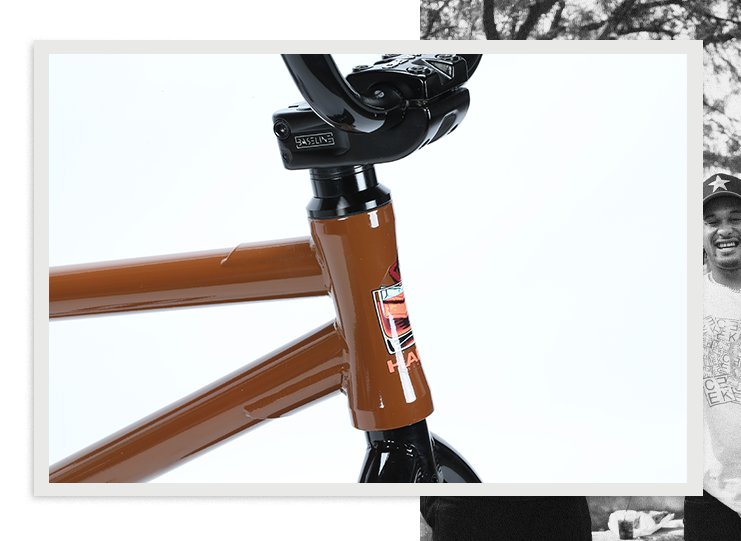

FrameFull chromoly frame w/ 1-1/8" integrated head tube, mid BB shell, removable brake mounts & 14mm dropouts. 13"CS, 75.5° HT
ForkFull chromoly 1-1/8" threadless w/internally threaded, CNC-machined steerer tube & tapered legs. 32mm offset
ColorsBrown
DRIVETRAIN
Cranks3-PC tubular chromoly 165mm arms. 48T 19MM splined chromoly spindle; 31.8MM Square tapered arm
Bottom BracketMid. Sealed bearing.
SprocketBaseline 25T aluminum sprocket
Gearing25/9
PedalsPoly platform, chromoly 9/16" Axle
ChainBaseline chain
Cassette9t driver
WHEELS
TiresHaro La Mesa 20 x 2.4"
Front Hub36h alloy, sealed bearings, female 3/8" axle (hub guards not included)

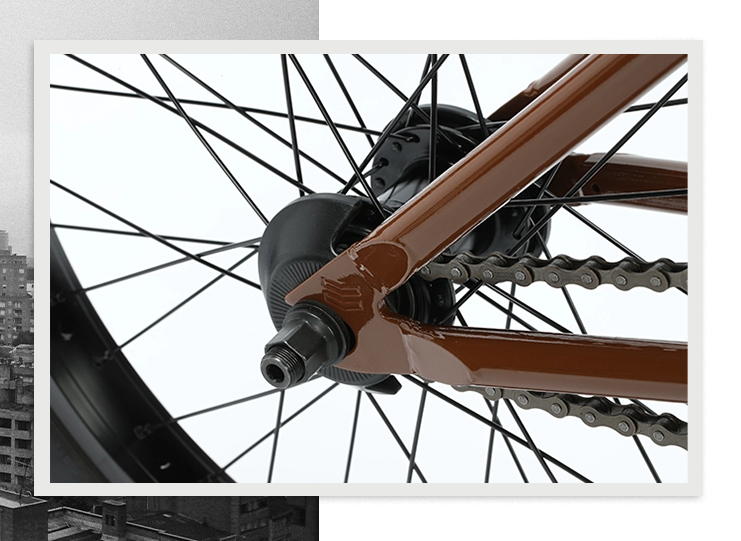

Rear HubAlloy 9t Sealed freecoaster rear. 14mm male axle (hub guards not included)
Rims20" Haro Sata alloy double wall, 36 hole
BRAKING SYSTEM
BrakeRadius alloy U-Brake
Brake LeverHaro Baseline two-finger
OTHER COMPONENTS
GripsHaro Baseline 163mm flangeless
HandlebarHaro chromoly bar, 9.5" rise, 2-piece
StemHaro Baseline CNC top-load, 48mm reach
HeadsetIntegrated 1-1/8" threadless with sealed bearings.
SeatBaseline 5° seat/post combo
Seat PostAluminium 25.4mm
Seat Post ClampIntegrated

GEOMETRY

SizeHead AngleSeat AngleTop TubeSeat TubeChainstayBB HeightStand Over
20.7575.5°71.5°20.75" (527mm)9"" (260mm)13" (330mm)11.5" (293mm)21.5" (546mm)
