• The Double Peak 3 is a black mountain bike with a teal Haro logo, disc brakes, and knobby tires, ideal for affordable MTB adventures.

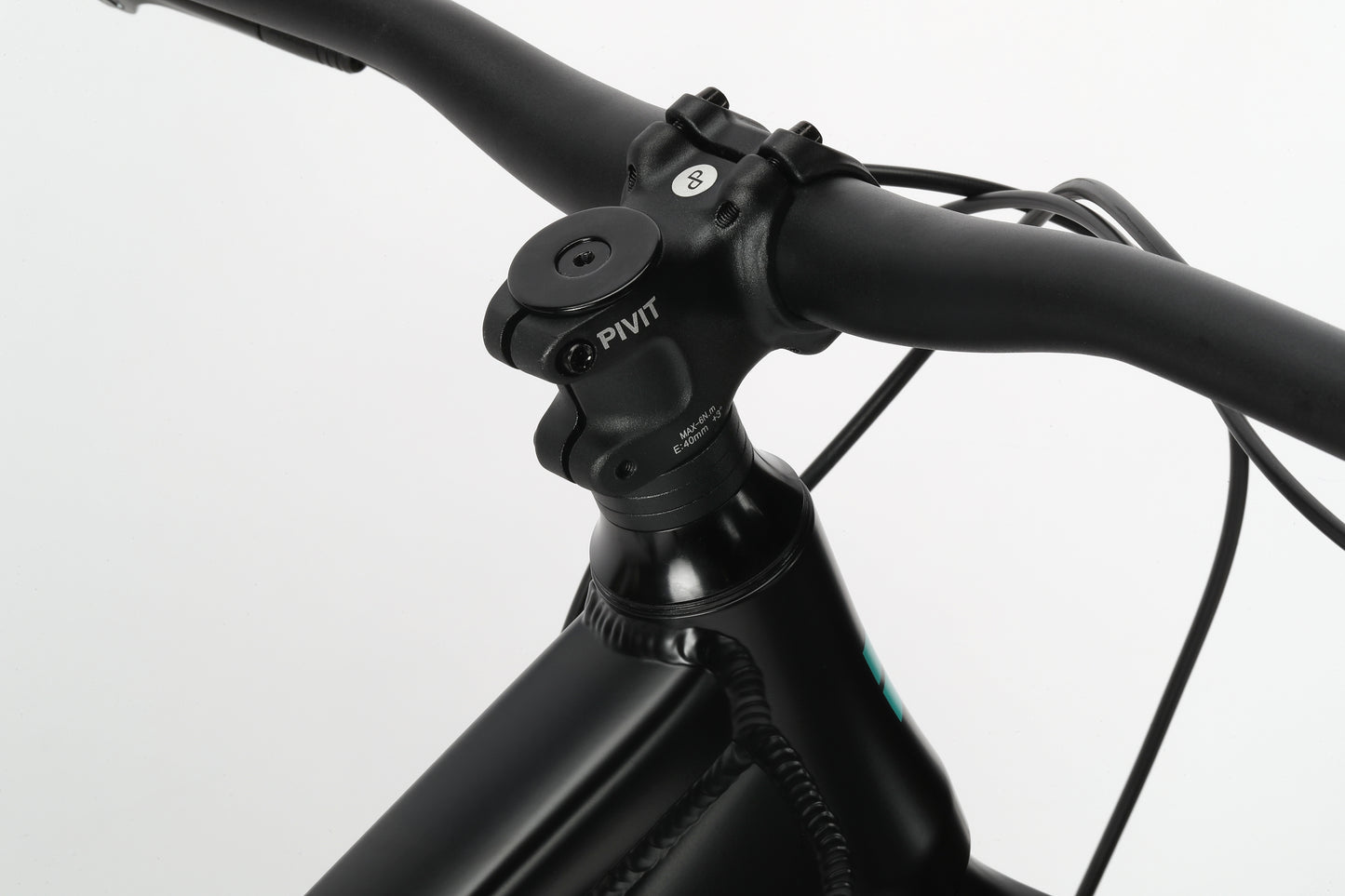

  • Close-up of the Double Peak 3s black handlebar and stem, ideal for MTB adventures against a white background.

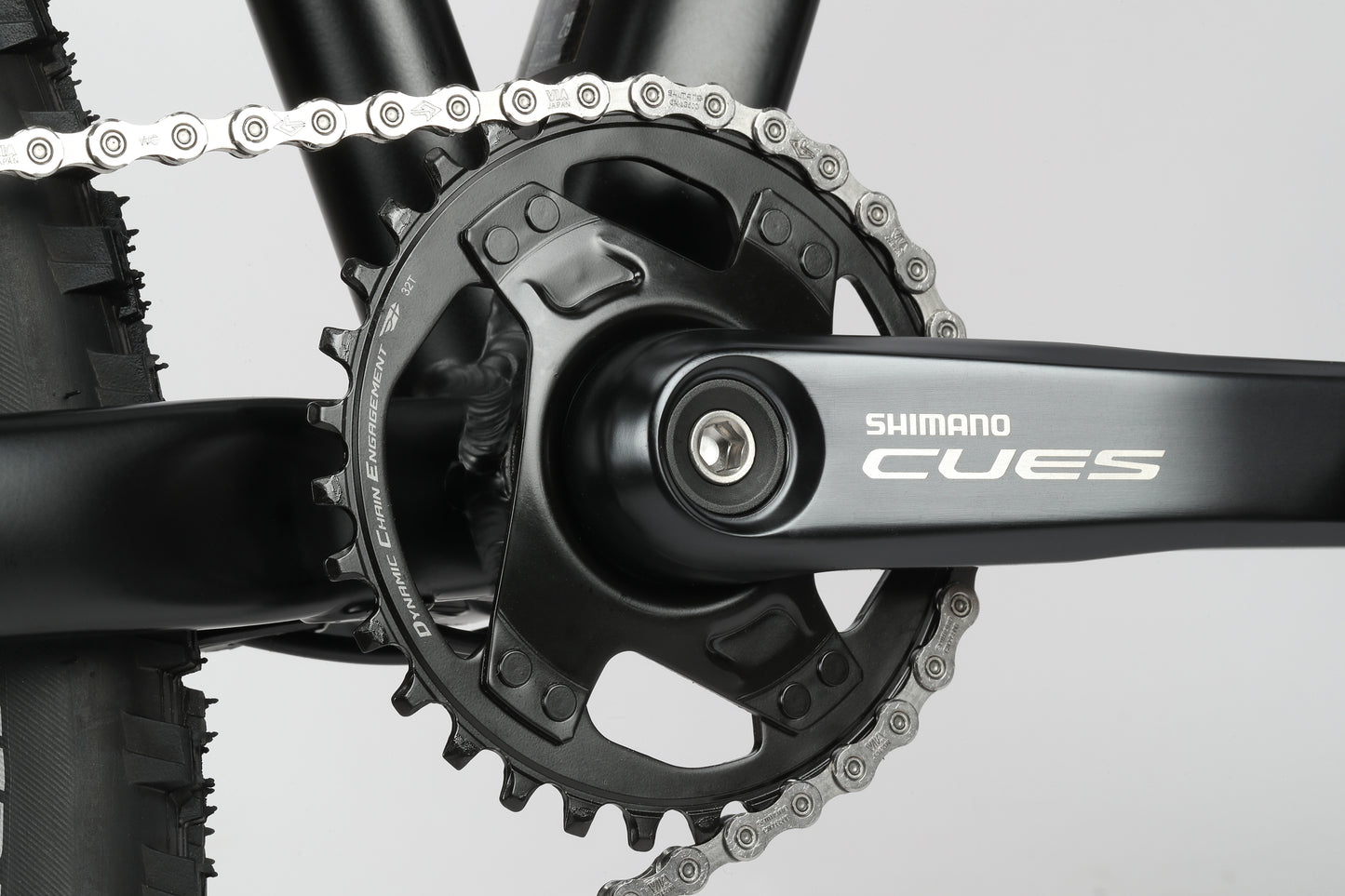

  • Close-up of a Double Peak 3 crankset with Shimano Cues logo, perfect for MTBs, featuring a black chainring and silver chain on gray.

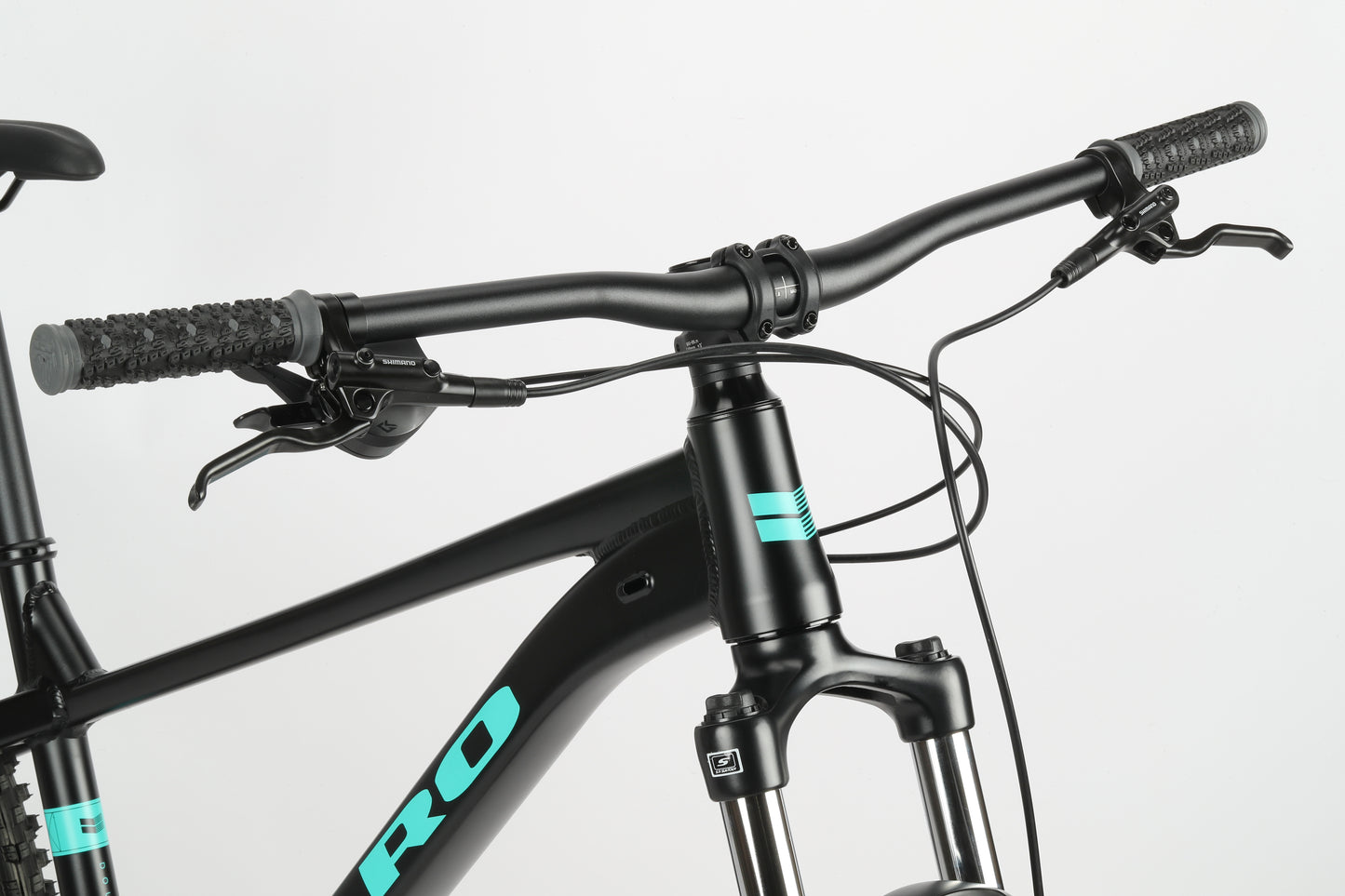

  • A close-up of Double Peak 3s handlebars and front suspension displays its PRO brand name in light blue on a white background.

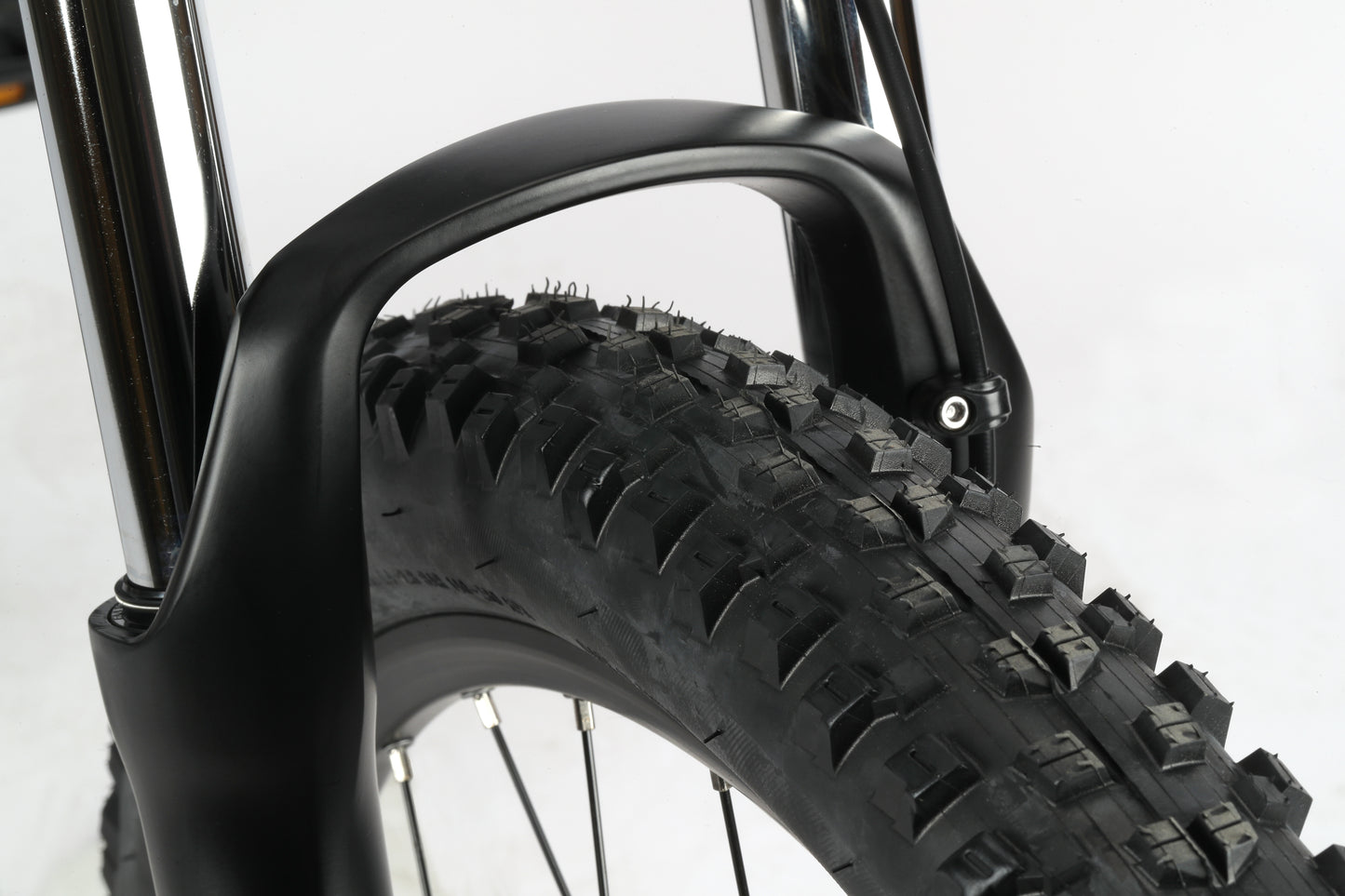

  • Close-up of a black tire with thick tread and suspension forks under a fender, perfect for a Double Peak 3 MTB adventure.

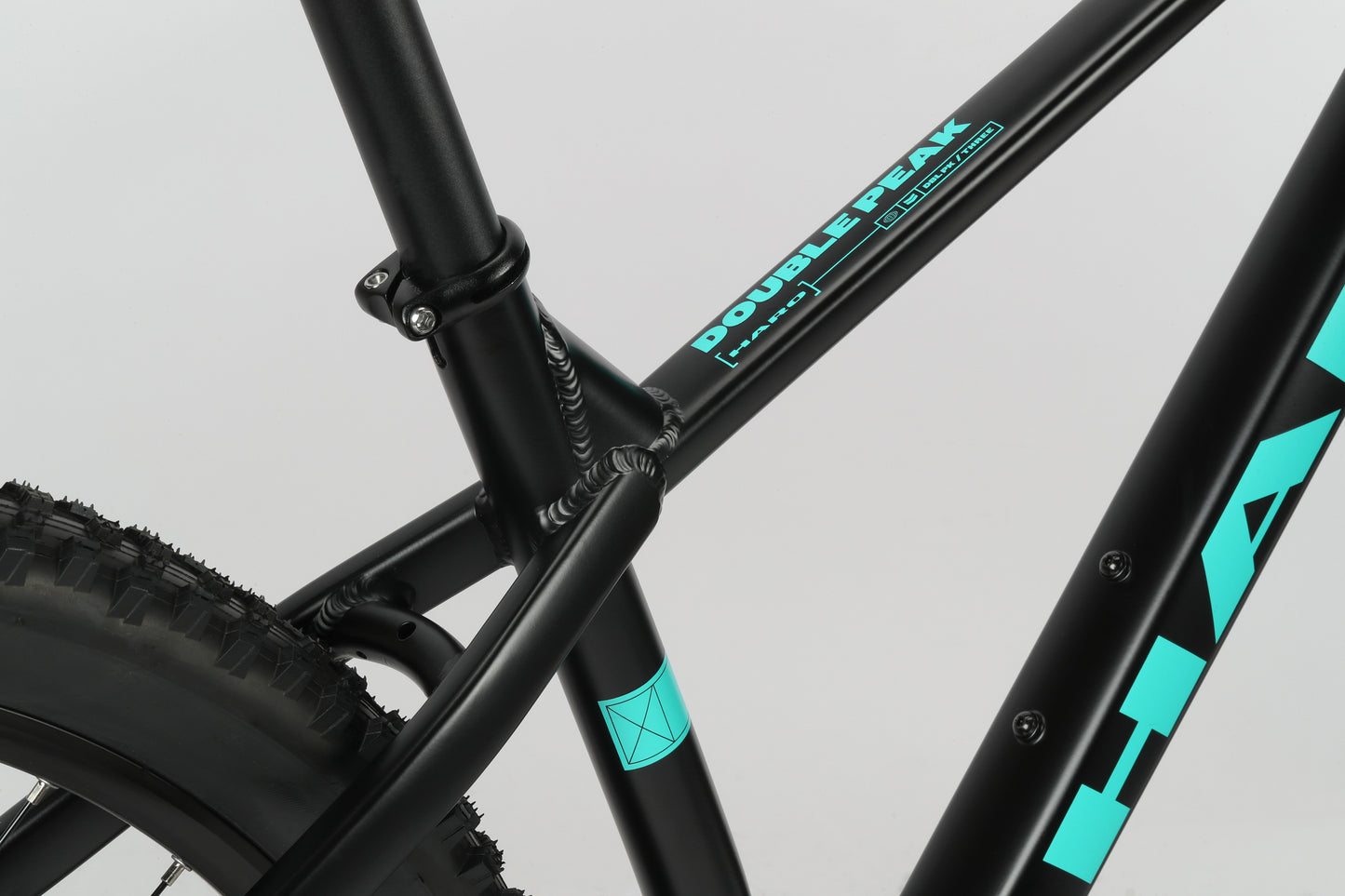

  • Close-up of a bike frame highlighting the seat tube and tire with Double Peak 3—ideal for your next MTB adventure.

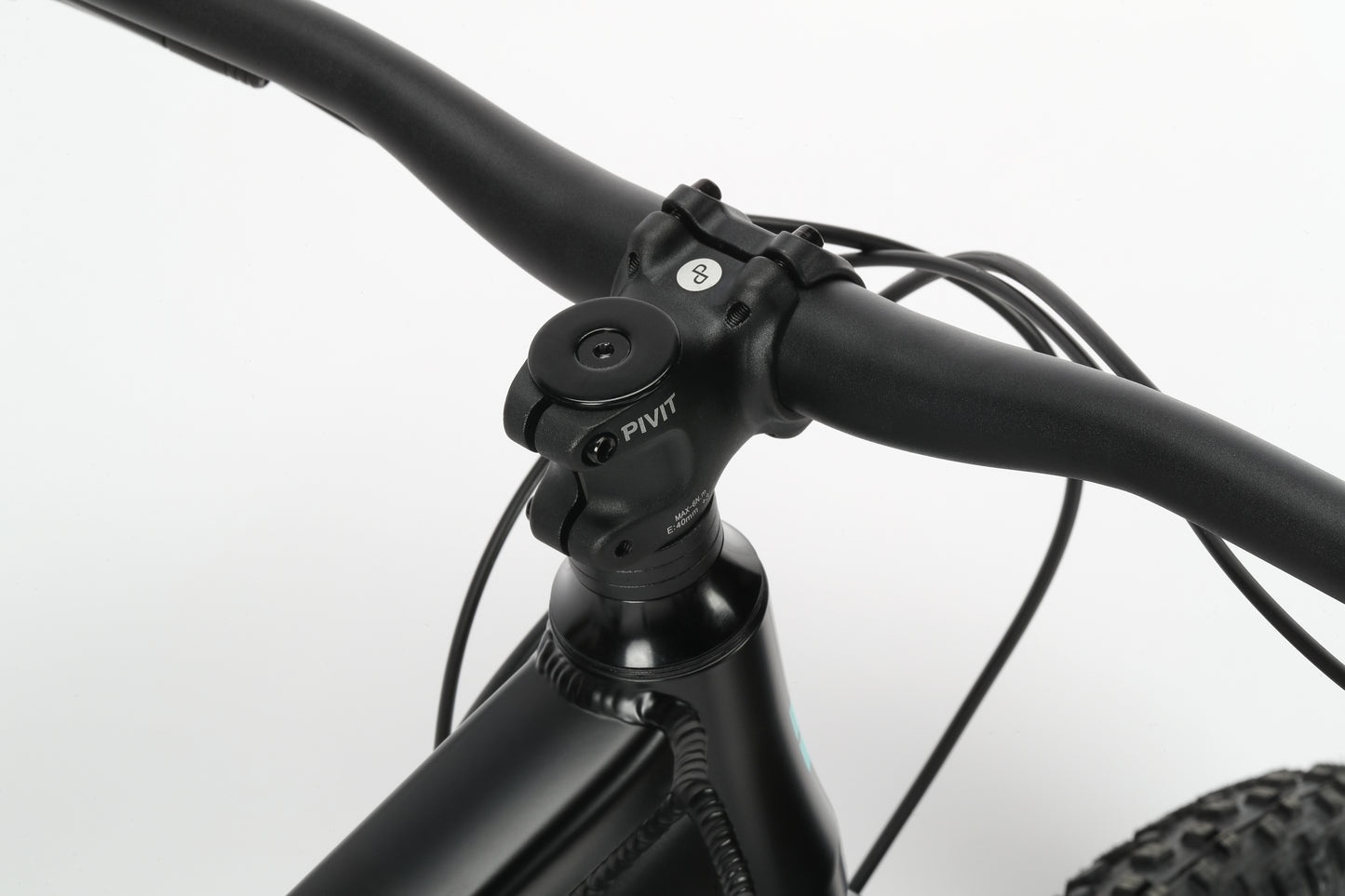

  • Close-up of bicycles black handlebars, perfect for your next Double Peak 3 MTB adventure.

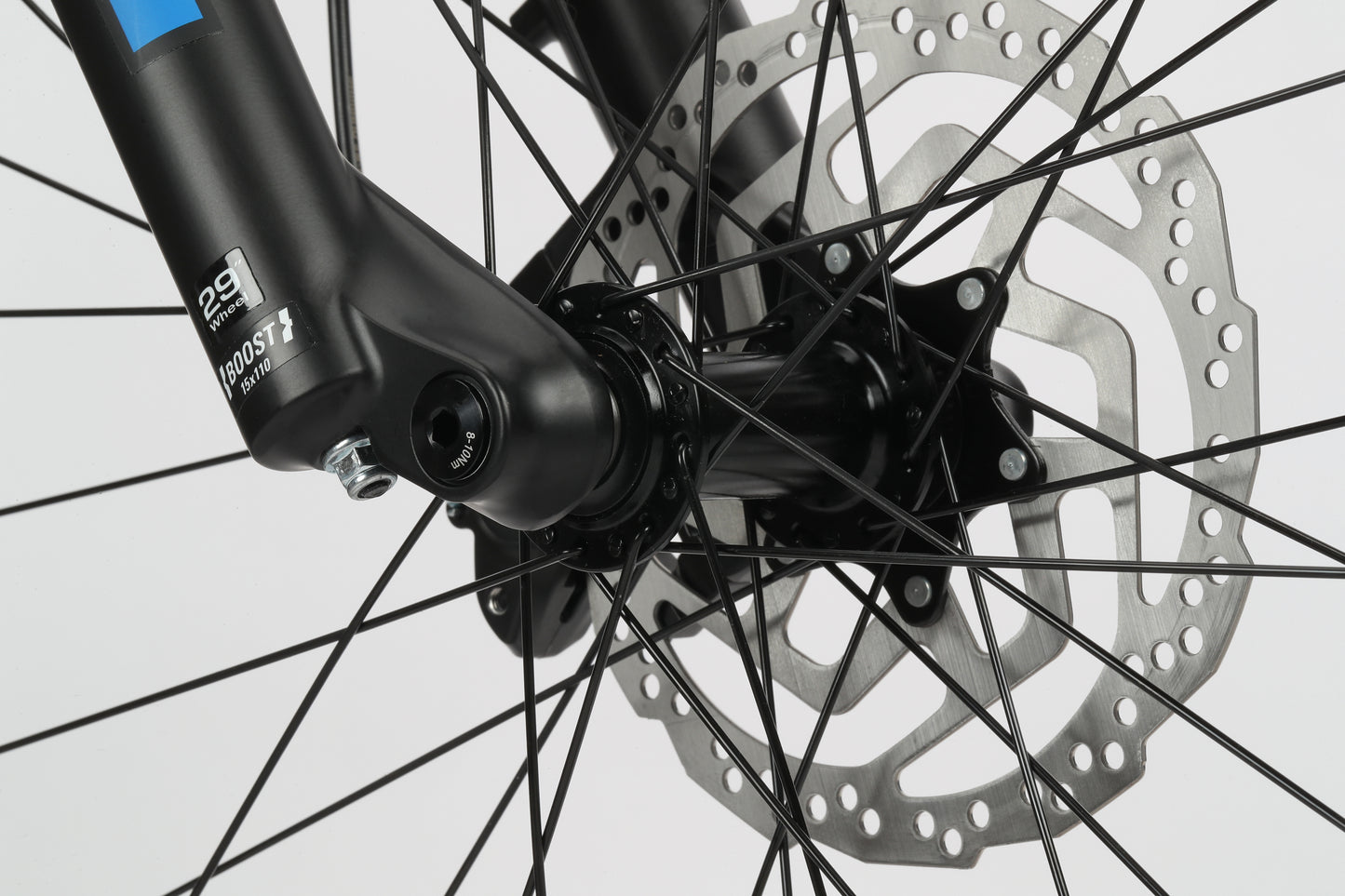

  • Close-up of a Double Peak 3 bikes front wheel, detailing the disc brake and spokes, ideal for MTB adventures.

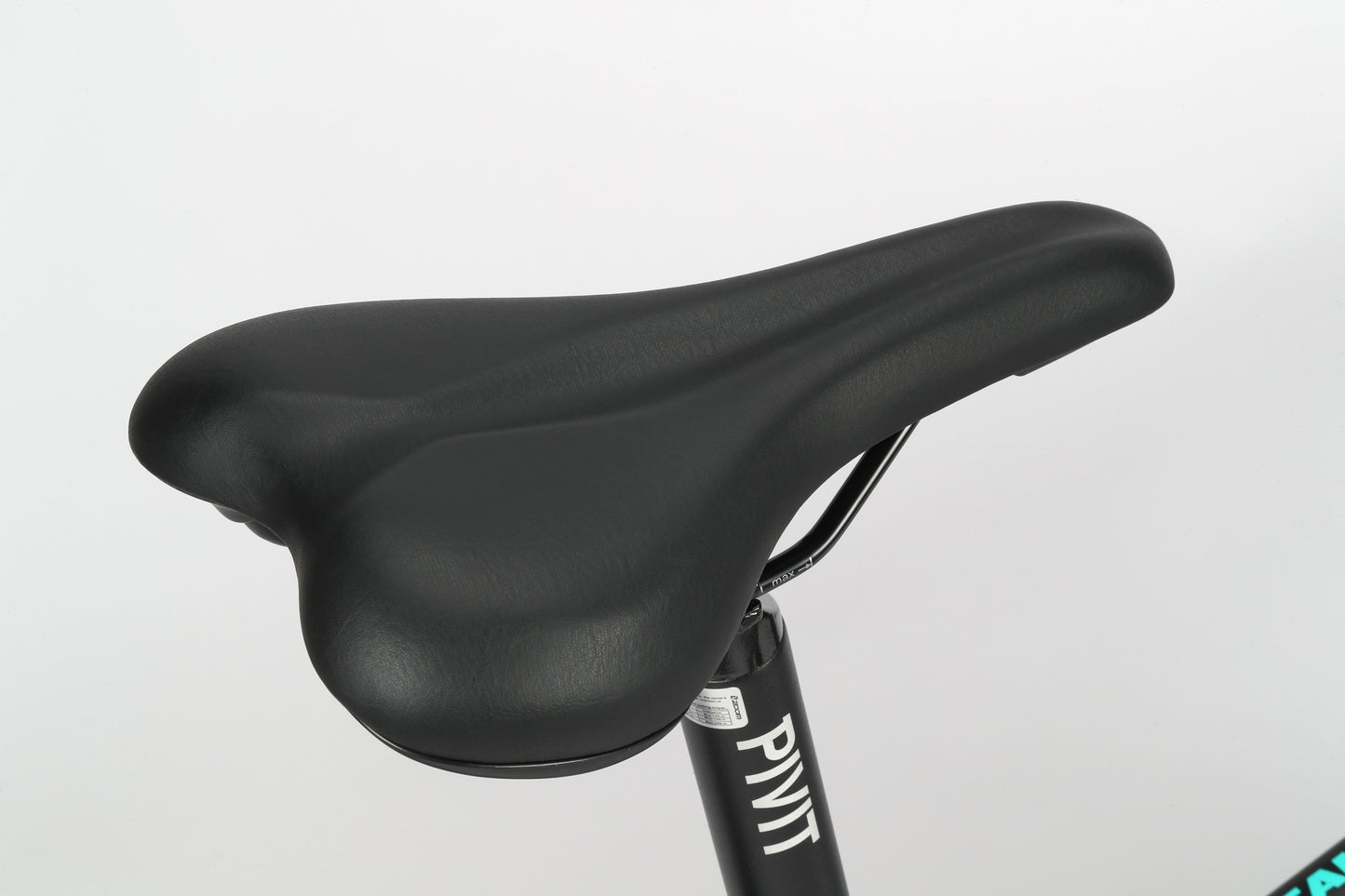

  • The Double Peak 3 bike features a black, ergonomic bicycle seat against a plain white background, perfect for your next MTB adventure.
1 9

Double Peak 3

Double Peak 3

$899.99
$899.99 $899.99
Sale Sold out

15760

The most affordable bike in the Double Peak range, the Double Peak 3 is built on the same great heat-treated alloy frame with a butted tubing and a tapered head tube as the 1 and 2, loaded up with a parts set makes the grade without costing you too much. A 120mm travel SR Suntour fork leads the charge, with a Shimano Cues 9-speed drivetrain to run it hot on any incline, up or down. Beefy Kenda Regolith tires and hydraulic Shimano disc brakes keep it all under control. Ready for MTB adventure, right out the door, with burrito money left over.
Color
Size

View full details

FEATURES

  • Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. Quick-release dropouts.
  • SR Suntour XCM32-Boost fork with 120mm travel
  • Shimano Cues 9-speed drivetrain with 11-41T gearing
  • Double-wall 32H alloy rims with Shimano TC500 center-lock hubs, 15mm front, quick-release rear
  • Kenda Regolith 29 x 2.4" front and rear
  • Shimano MT200 Hydraulic 2-piston disc brake with 180/160mm rotors

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
FrameHydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. 135mm axle spacing with quick-release dropouts. Internal cable routing. UDH derailleur hanger.
ForkSR Suntour XCM32-Boost 120mm travel; coil with preload; 1.5" tapered, 15x110 thru-axle
ColorsMatte Black / Teal, Gloss Tan / Lava
DRIVETRAIN
CranksShimano Cues 2-piece, FC-U4000-1, 170mm, 32T chainring
PedalsFPD PC
ChainShimano Linkglide CN-LG500
Bottom BracketShimano Cues BSA 73mm, BB-UN101
Front Derailleur
Rear DerailleurShimano Cues 9-speedd RD-U4000 Shadow
Derailleur ShifterShimano Cues SL-U4000-9R 9-speed with optical window
Freewheel/CassetteShimano Cues 11-41T CS-LG500
WHEELS
TiresKenda Regolith 29 x 2.4" front and rear
Wheels/RimsAlloy double-wall, pinned seams, 32h w/eyelets
Front HubShimano HB-TC500 Center Lock 32h, 15mm thru-axle
Rear HubShimano FH-TC500, Center lock, 32h, quick release
BRAKING SYSTEM
BrakesShimano MT200 Hydraulic 2-piston disc brake with 180mm rotor front and 160mm rotor rear
OTHER COMPONENTS
Grips/TapeWTB WeirWolf
HandlebarHaro Alloy 6061 Pivot MTB riser bar, 780 wide, 20mm rise
StemAlloy 6061 Forged 40mm reach
HeadsetFPD DOZER tapered 1-1/8" - 1-1/5" FSA (44/56mm)
SaddleDDK-250V PHU Leather
Seat PostForged alloy micro-adjust pivot seat post
Seat ClampForged Alloy 6061

GEOMETRY

SIZING GUIDE

MANUALS, GUIDES & DOWNLOADS

Downloadable PDFs can be found in Manuals & Guides
