Double Peak i/O

$2,999.99

~~$2,999.99~~ $2,999.99

Sale Sold out

SKU: SKU:11941

The Double Peak I/O and its slick frame design features an internal battery down-tube and motor-mount for a clean, integrated look. Other features include Shimano's new Deore 10-speed 1-by drive-train with a Shimano STePS 6100 compact mid-motor drive and its components, programmed for on-road and light off-road trail use.If you ride trails and also commute to work or town for shopping, you have found your match.

Color Black / Neon Red

Size S M L XL

View full details

FEATURES

Double Peak i/O X6 series frame, internal battery, tapered head tube
Suntour XCM-34 Boost fork, 100mm travel w/ 15mm thru-axle
Shimano STePS E6100 Drive unit & components
250 Watts, 60Nm motor w/ Darfon internal 504wh battery
New Deore M5120 10-spd Shadow Plus rear derailleur
New Deore M4100 10-spd 11-46T cassette
Samox crankarms w/ Shimano 38T chainring
Shimano MT-201 hydraulic disc brakes, 180mm/160mm rotors
Sturdy chainstay-mounted kickstand

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame	Double Peak I/O X6 Aluminum frame for Shimano STePS Tapered Head Tube \| Internal battery Down Tube
Fork	SR Suntour XCM34 Boost LO DS T/A \| 100mm travel \| Tapered \| Lockout
Colors	Black / Neon Red
DRIVETRAIN
Cranks	Samox TEC39-SHE80 \| Shimano 38T Chainring
Pedals	FPD Nylon \| 9/16" Chromoly axles
Chain	KMC e10S Sport
Front Derailleur
Rear Derailleur	New Shimano Deore RD-M5120 \| 10-spd \| Shadow Plus
Derailleur Shifter	New Shimano Deore SL-M4100-R 10-spd
Freewheel/Cassette	New Shimano Deore CS-M4100-10 \| 10-spd \| 11-46T

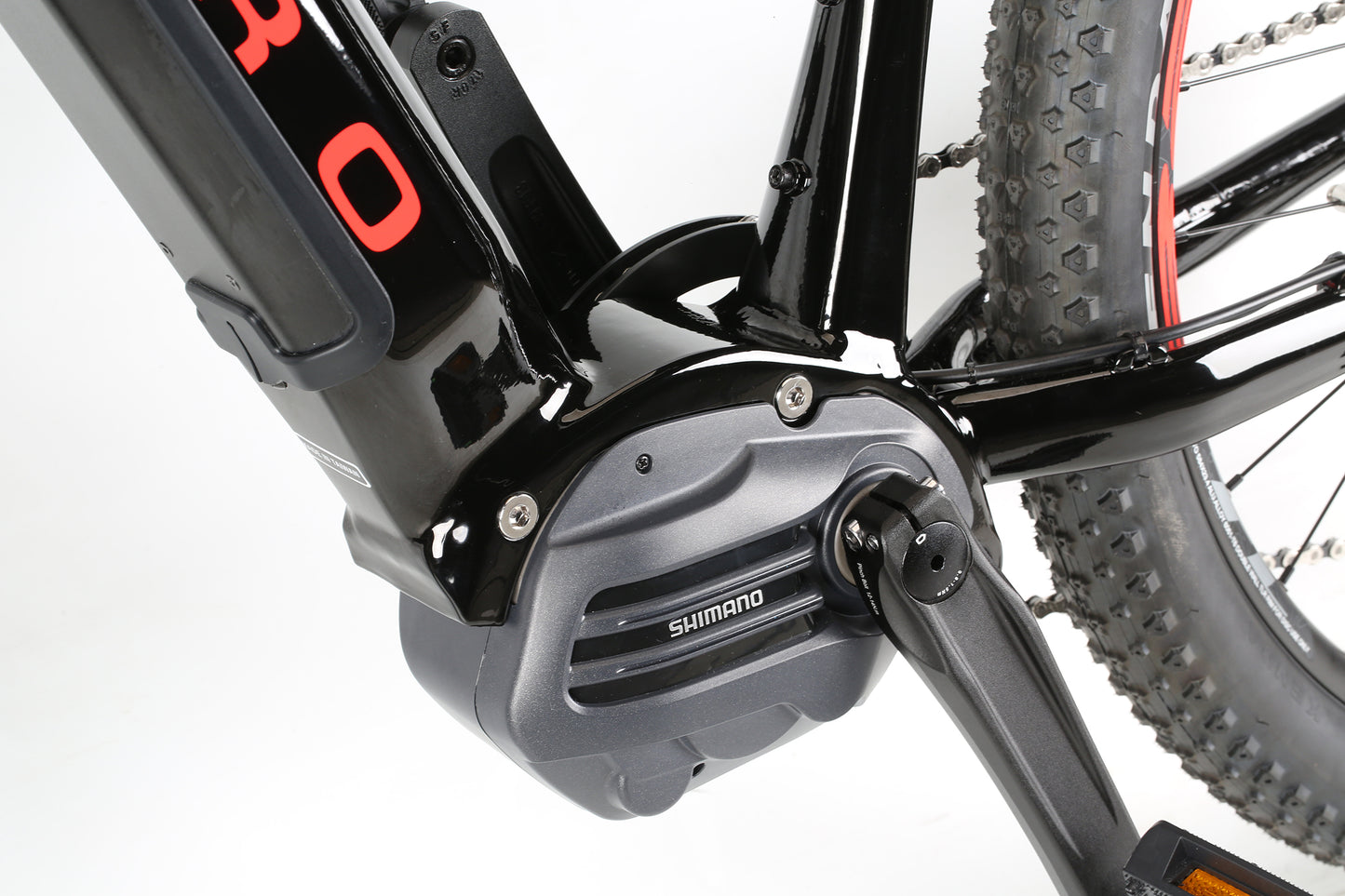

Drive Unit	Shimano STePS E6100 \| 250 W. \| 60 Nm Torque
Battery	Darfon Internal for ShimanoSTePS \| 504Wh
WHEELS
Tires	Kenda Honey Badger \| 27.5x2.20 \| 60tpi
Wheels/Rims	Weinmann U-28 TL \| Sleeved \| Tubeless Ready \| 27.5"x32mm \| Double Wall w/ eyelets

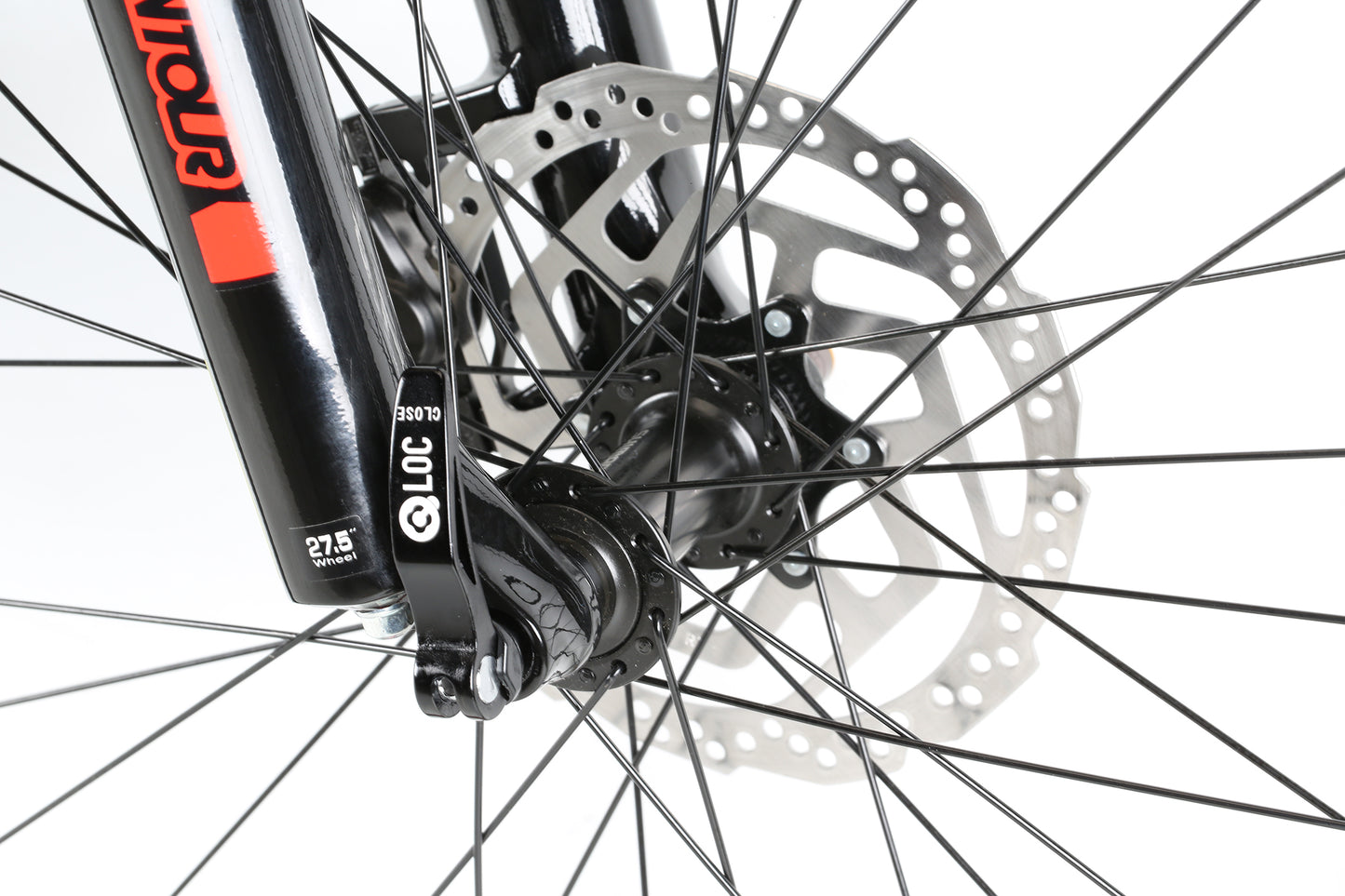

Hubs	Shimano MT-400 Front Thru-Axle \| M-4050 Rear Quick Release \| 32h \| Cassette Body
BRAKING SYSTEM

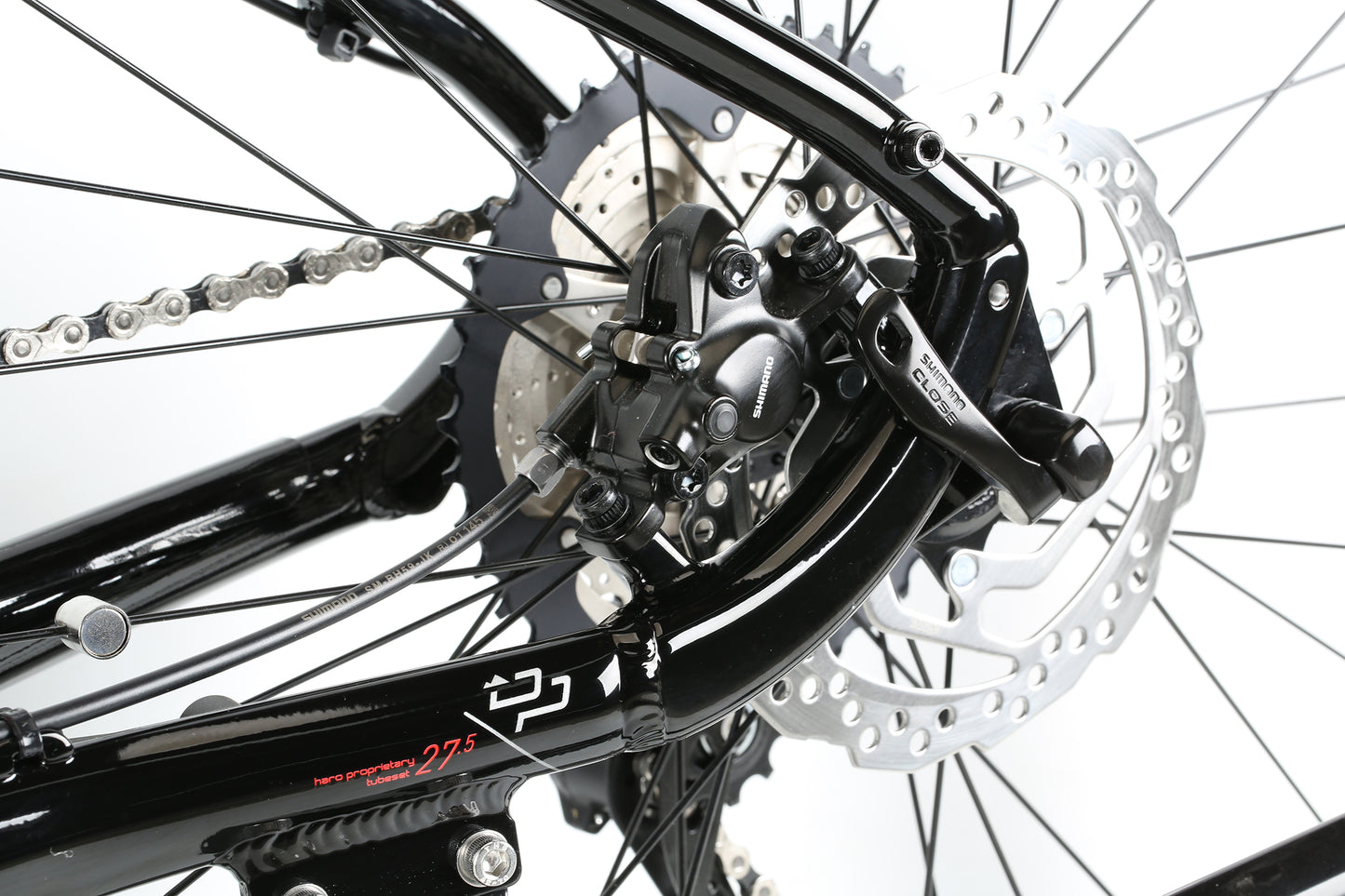

Brakes	Shimano BR-MT200 Hydraulic Disc \| 180mm / 160mm Center Lock Rotors
Brake Levers	Shimano BL-MT201 Hydraulic
OTHER COMPONENTS
Grips/Tape	WTB Weirwolf
Handlebar	Alloy riser bar \| 25mm Rise
Stem	3D Forged alloy
Headset	FPD Dozer 1-1/8"-1.5" \| AC Bearing bottom
Saddle	WTB Comfort Sport

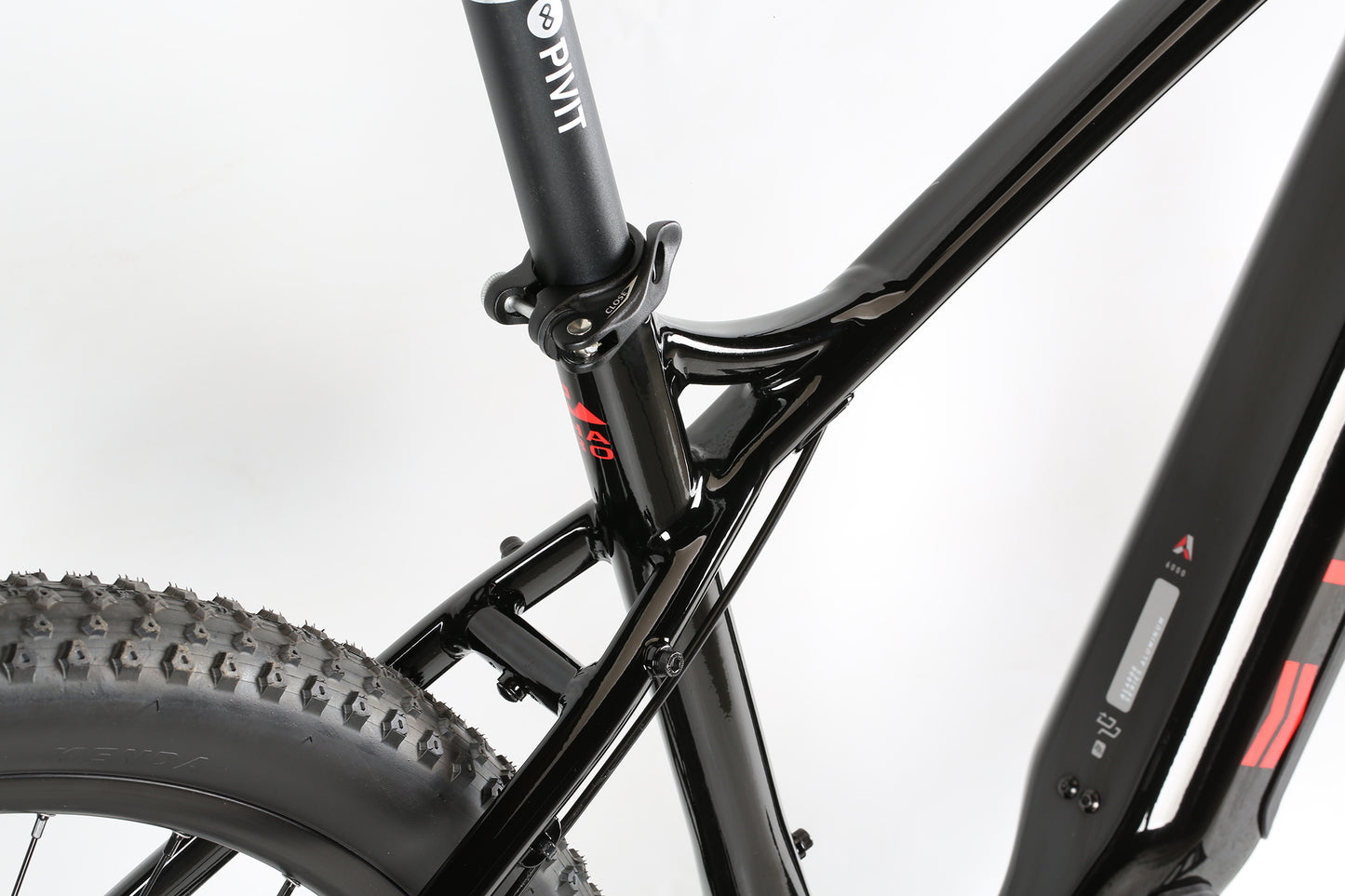

Seat Post	Pivit Alloy Microadjust 31.6 x 350mm
Seat Clamp	Pivit Aluminum 35mm Bolt
Extras	Chainstay kickstand \| Shimano display \| Darfon battery charger \| Battery Lock

GEOMETRY

Geometry & Sizing
SIZE	S	M	L	XL
Seat Tube (C-T)	406mm (16")	457mm (18")	508mm (20")	559mm (22")
Top Tube (Effective)	600mm (23.6")	600mm (23.6")	616mm (24.3")	630mm (24.8")
Head Tube Angle	68°	68°	68°	68°
Seat Tube Angle	72.5°	72.5°	72.5°	72.5°
Chainstay Length	450mm (17.7")	450mm (17.7")	450mm (17.7")	450mm (17.7")
BB Drop	45mm (1.8")	45mm (1.8")	45mm (1.8")	45mm (1.8")
Wheelbase	1137mm (44.8")	1137mm (44.8")	1152mm (45.4")	1168mm (46")
Head Tube Length	115mm (4.5")	115mm (4.5")	120mm (4.7")	125mm (4.9")
Standover	719mm (28.3")	749mm (29.5")	769mm (30.3")	803mm (31.6")
Stack Height	617mm (24.3")	617mm (24.3")	622mm (24.5")	626mm (24.6")
Reach	407mm (16")	407mm (16")	422mm (16.6")	435mm (17.1")
Axle to Crown	518mm (20.4")	518mm (20.4")	518mm (20.4")	518mm (20.4")
Fork Offset	47mm (1.9")	47mm (1.9")	47mm (1.9")	47mm (1.9")
Stem Length	60mm	60mm	70mm	70mm
Bar Width	700mm	700mm	700mm	700mm
Crank Length	170mm	170mm	170mm	170mm
Wheel Size

SIZING GUIDE

Size Table
Size	Inches	CM
S
M
L
XL
