Masi Bikes

50240

Incanto Ti Frameset

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Specifications
FRAMESET

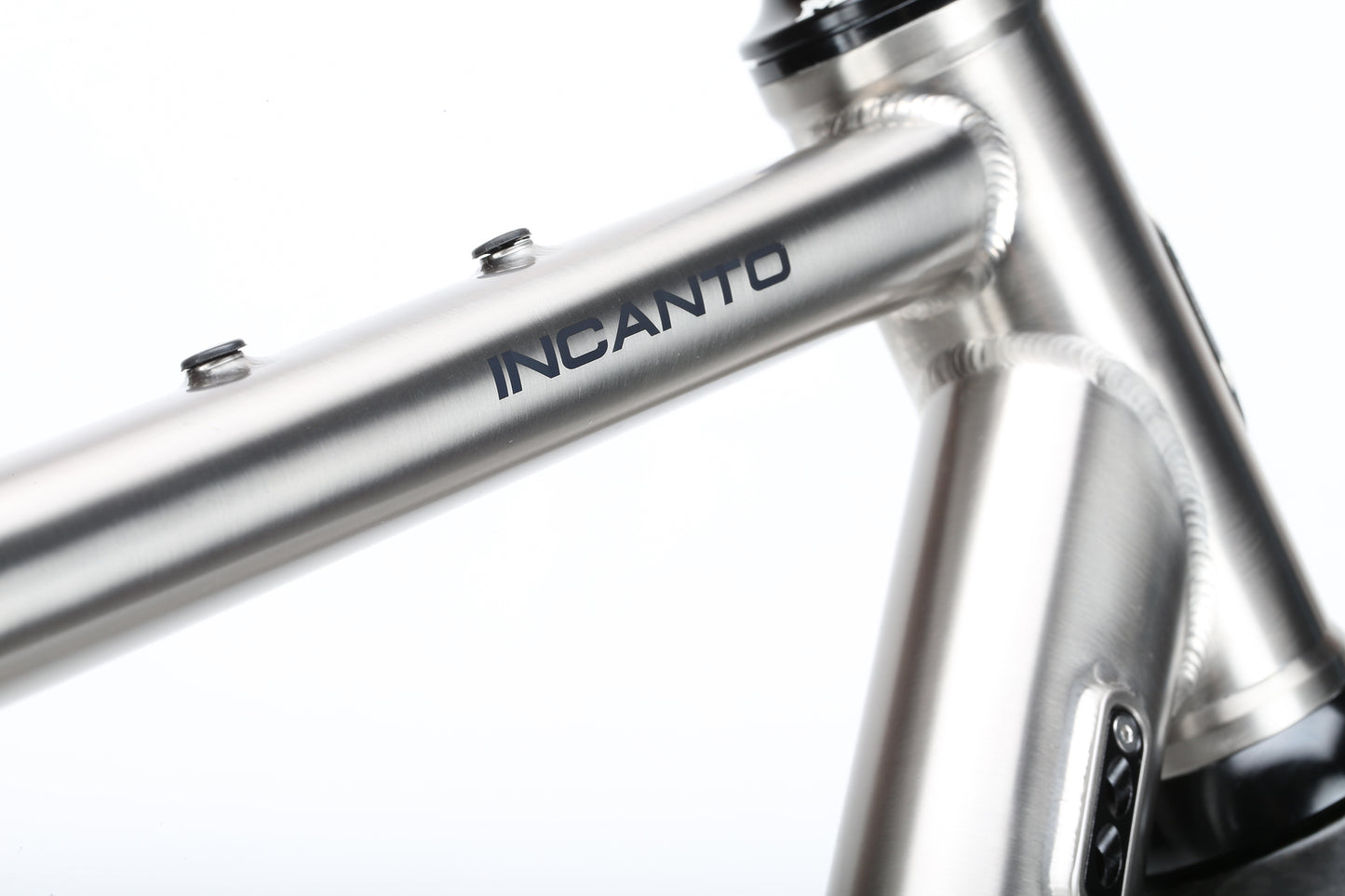

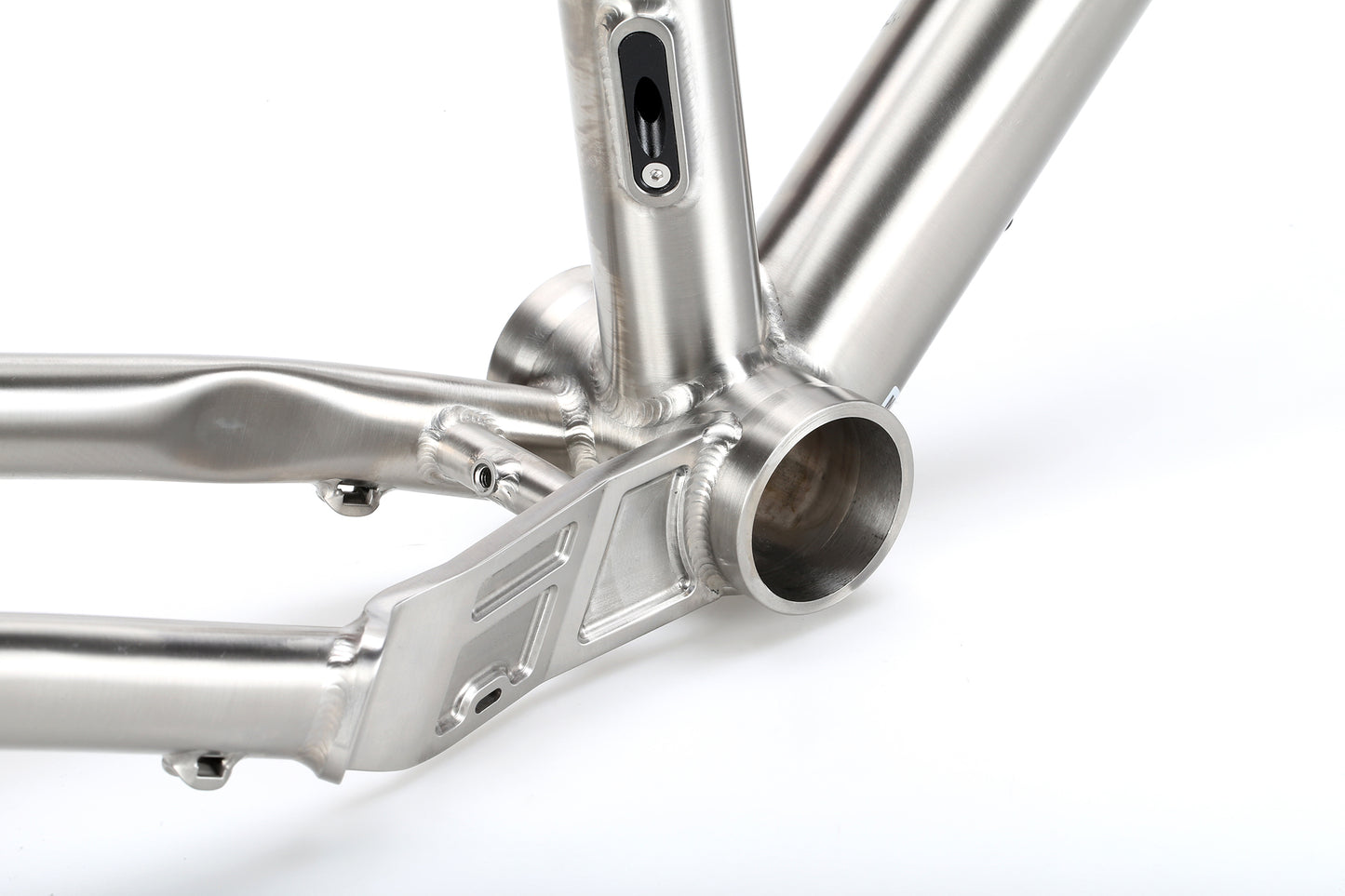

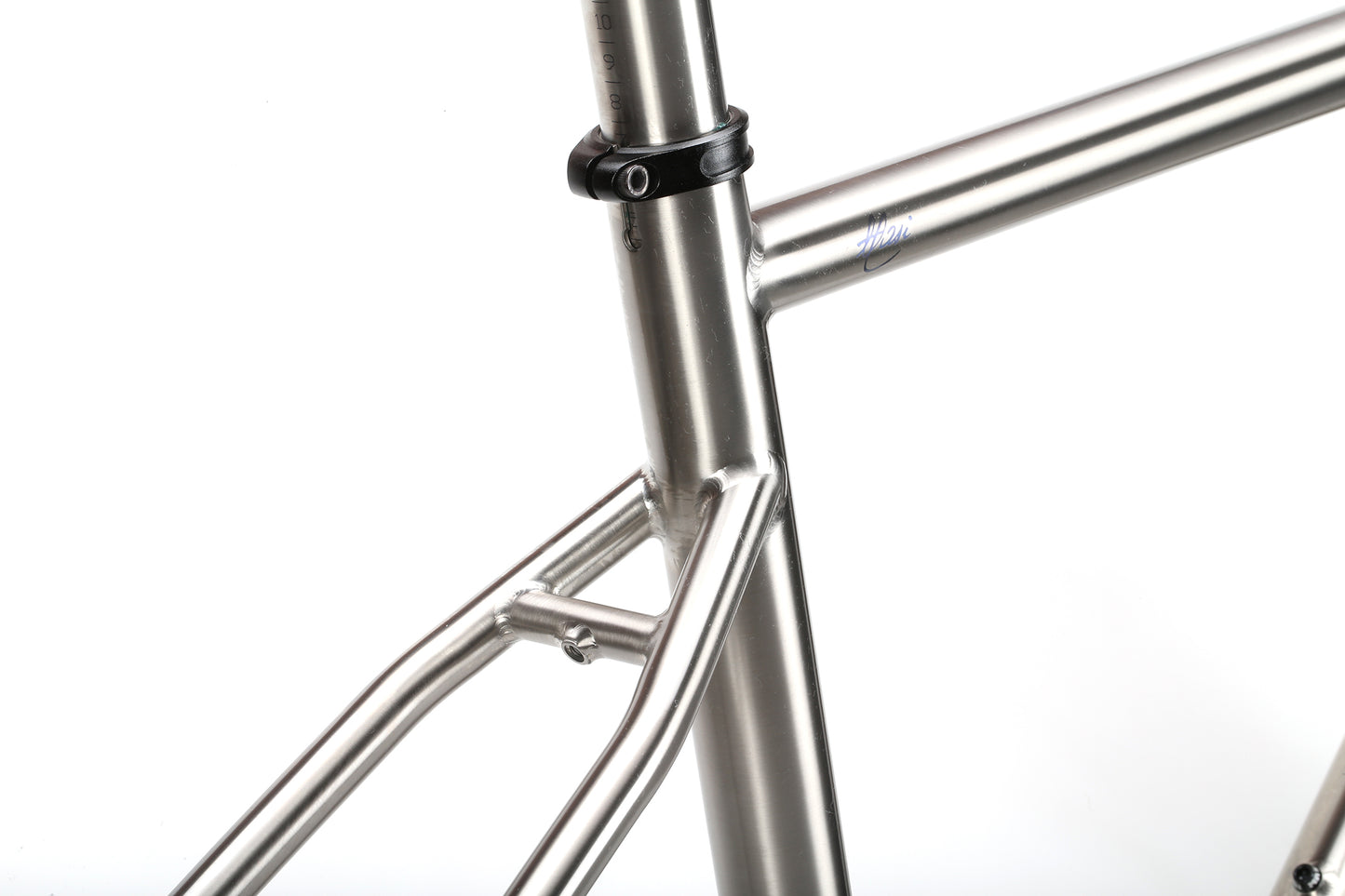

FrameIncanto Ti gravel | Tig-welded butted 3al2.5v titanium | ϕ41mm semi-integrated head tube | BB86 bottom bracket | Flat-mount disc brake | Replaceable derailleur hanger | Internal dropper post compatible | 12 x 142mm thru-axle

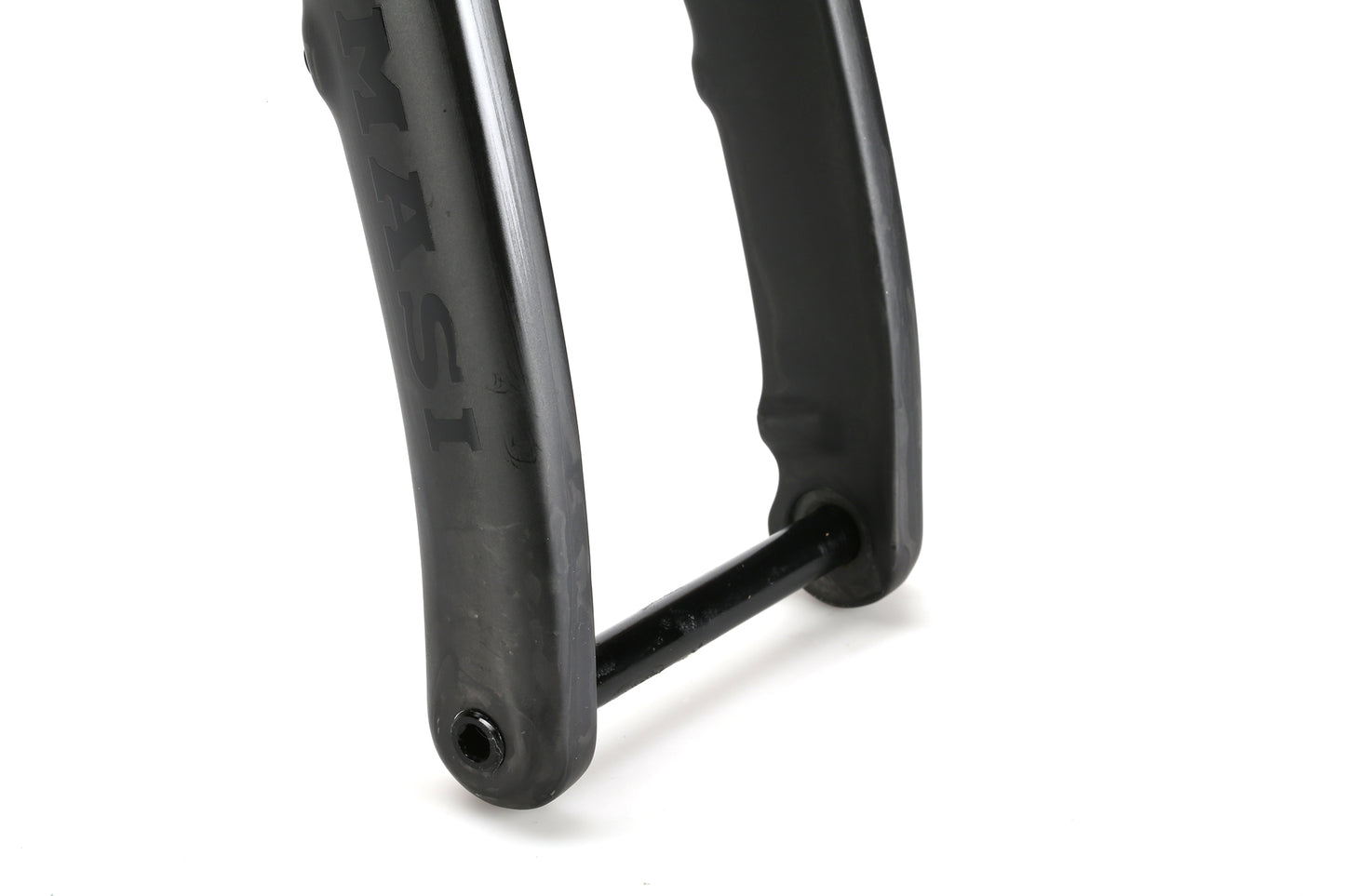

ForkBrunello gravel | MC-9 carbon construction | Carbon 1.125 - 1.5" tapered steer tube | Flat-mount disc | Fender mounts | 12 x 100mm thru-axle
Colors
DRIVETRAIN
Cranks
Pedals
Chain
Bottom Bracket
Front Derailleur
Rear Derailleur
Derailleur Shifter
Freewheel/Cassette
WHEELS
Tires
Wheels/Rims
BRAKING SYSTEM
Brakes
Brake Levers
OTHER COMPONENTS
Grips/Tape
Handlebar
Stem
HeadsetMASI by Token, No.41 1.125"-1.5" tapered, semi-integrated
Saddle
Seat PostBrev M. Ti | ϕ 31.6mm x 350mm | 47 - 51cm: 0mm offset, 54 - 60cm: 10mm offset
Geometry & Sizing
SIZE475154565861
A. Top Tube (Effective)541mm (21.3")539mm (21.2")564mm (22.2")567mm (22.3")572mm (22.5")589mm (23.2")
B. Seat Tube (C-T)440mm (17.3")470mm (18.5")500mm (19.7")520mm (20.5")540mm (21.3")570mm (22.4")
C. Stack Height551mm (21.6")560mm (22.1")580mm (22.8")594mm (23.4")610mm (24.1")629mm (24.8")
D. Reach387mm (15.2")384mm (15.1")399mm (15.7")394mm (15.5")394mm (15.5")397mm (15.6")
E. Standover733mm (")762mm (")788mm (")807mm (")826mm (")851mm (")
F. Head Tube Length97mm (3.8")107mm (4.6")126mm (5")141mm (5.6")158mm (6.2")177.5mm (7")
G. Head Angle71.8°71.8°72.2°72.2°72.2°72.2°
H. Seat Angle74.0°74.0°73°73°73°72°
I. Wheel Base1010mm (39.8")1010mm (39.8")1026.5mm (40.4")1026.5mm (40.4")1031.5mm (40.6")1042mm (41.3")
J. Chainstay425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")
K. BB Drop74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")
L. Fork Offset45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")
M. Stem Length90mm90mm100mm100mm110mm110mm
N. Bar Width380mm420mm420mm440mm440mm440mm
O. Crank Length
P. Wheel Size700700700700700700



*Specifications are subject to change without notice
