Haro Bikes
SD AM
SD AM
SKU: SKU:23469
Couldn't load pickup availability
Share







FEATURES
100% chromoly frame with integrated head tube, tapered seat and chain stays, welded seat clamp, 21" top tube and removable brake and cable mounts
100% chromoly fork with internal threaded 1 piece CNC steer tube, tapered legs and 5mm dropouts
100% chromoly bars 9" with Haro Lineage CNC alloy top load stem
Haro 1978 3-piece chromoly 8-spline 170mm cranks
Haro Baseline 25T alloy bolt drive sprocket and sealed Mid BB
Fully sealed wheels with Haro Sata double-wall alloy rims, alloy shell hubs with RSD free-coaster rear hub, 14mm male axle, 9t driver and hub guards
Haro La Mesa tires 20x2.4" front/rear
Baseline 5° seat/post combo
Haro SD plastic pedals

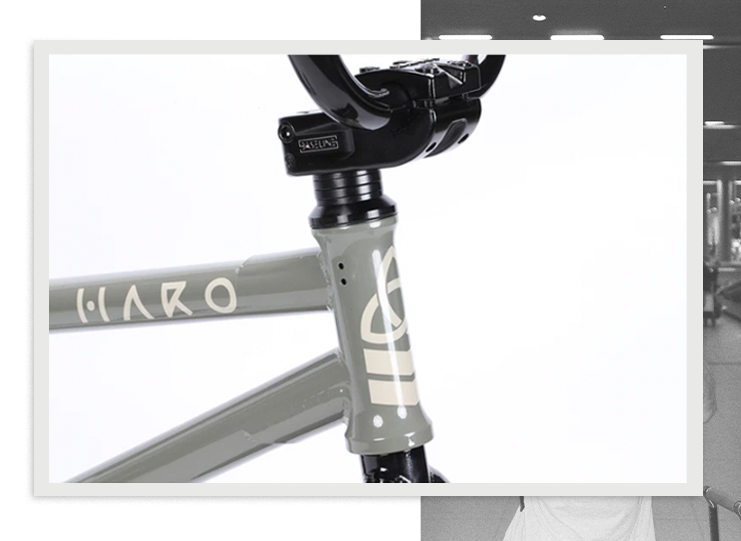

FULL CHROMOLY FRAME
Featuring Dennis Enarson's signature SD v3 frame.

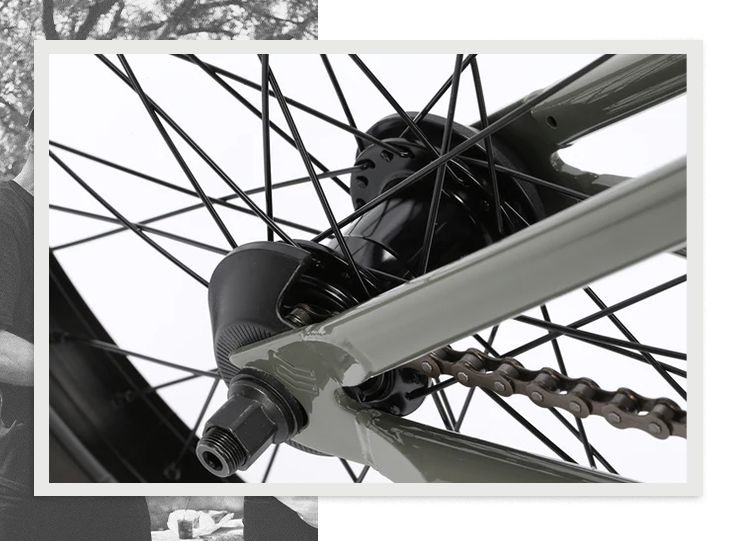

FREECOASTER HUB
Alloy 9t Sealed Freecoaster Rear with Hub Guard
Collapsible content
BIKE SPECS
FRAMESET | |
---|---|
Frame | Full chromoly Frame w/ 1-1/8" integrated headtube, mid BB shell, removable 990 brake mounts & 14mm axle dropouts 13.25"CS, 75° HT |
Fork | Full chromoly 1 1/8" threadless w/ one-piece CNC internally threaded steerer tube & tapered legs 32mm offset |
Colors | Moss Green |
DRIVETRAIN | |
Cranks | 3-piece tubular chromoly 170MM - Tubular crank arm; 48T 19MM splined spindle; 31.8MM square tapered arm |
Bottom Bracket | Sealed bearing mid |
Sprocket | Baseline 25T alloy sprocket |
Gearing | 25/9 |
Pedals | Poly platform, chromoly 9/16" Axle |
Chain | Baseline chain |
Cassette | 9t driver |
WHEELS | |
Tires | Haro La Mesa 20 x 2.4" |
Front Hub | 36h alloy sealed front w/hub guard |
Rear Hub | Alloy 9t sealed freecoaster rear w/hub guard |
Rims | 20" Haro Sata alloy 36h, double wall |
BRAKING SYSTEM | |
Brake | Radius alloy 990 U-Brake |
Brake Lever | Haro Baseline two-finger |
OTHER COMPONENTS | |
Grips | Haro Baseline 163mm flangeless |
Handlebar | Haro chromoly bar, 9.5" rise |
Stem | Haro Baseline CNC top-load, 48mm reach |
Headset | Integrated 1-1/8" threadless sealed bearing |
Seat | Baseline 5° seat/post combo |
Seat Post | Aluminium 25.4mm |
Seat Post Clamp | Integrated |
Pegs | 2 steel pegs |
GEOMETRY
-
-
Geometry & Sizing Size A. Head Angle B. Seat Angle C. Top Tube D. Seat Tube E. Chainstay F. BB Height G. Stand Over 21 75° 71.5° 21" (533mm) 10.2" (260mm) 13.25" (349mm) 11.5" (293mm) 21.5" (546mm)
WATCH DENNIS SHRED
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
