- Haro SD V3 aftermarket frame. 100% chromoly. Butted top and down tubes. Integrated chain tensioners. Removable brake mounts. 21" top tube.
- Haro SD V3 aftermarket fork. 100% post-weld heat treated chromoly. Investment cast dropouts. 32mm offset.
- Odyssey Super Highway bars. 100% chromoly. 9.5" rise.
- Odyssey Walsh stem. CNC-machined alloy. 53mm reach.
- Odyssey Thunderbolt 2-piece cranks. 100% chromoly. 175mm.
- Odyssey Boyd sprocket. CNC-machined alloy. 25T.
- Haro SD PC pedals. Sealed bearings. Chromoly spindles.
- Odyssey Hazard Lite rims.
- Odyssey Vandero front hub. Sealed bearings, 2X hub guards.
- Odyssey Antigram Cassette rear hub, 9T driver. Hub guard.
- Haro LaMesa tires. 20 X 2.4"
- ODI Longneck grips.

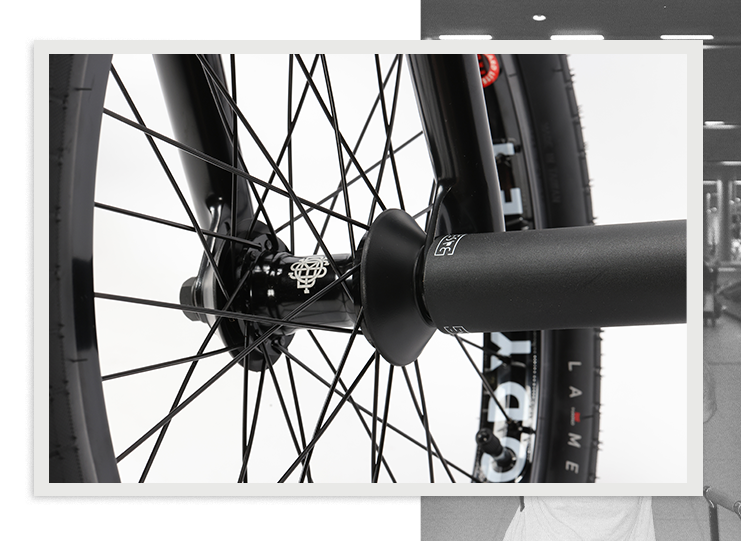

ODYSSEY VANDERO FRONT HUB
Sealed bearings, 2X hub guards

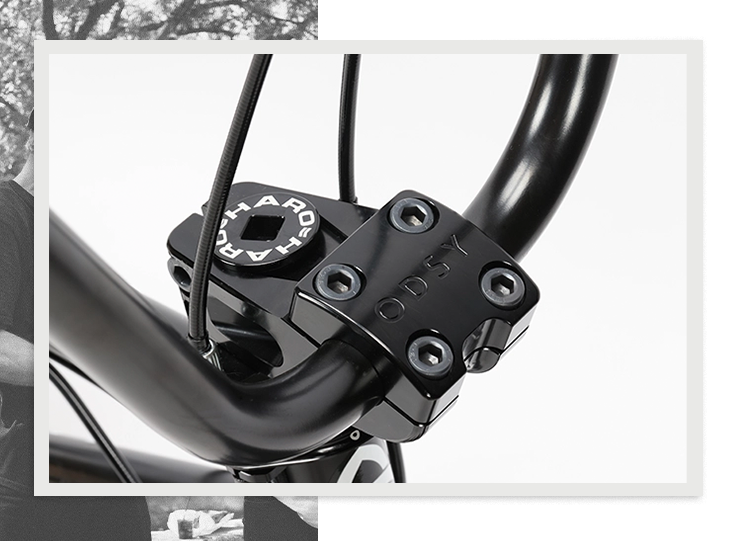

ODYSSEY WALSH STEM
CNC-machined alloy. 53mm reach
|Frame||Haro SD V3 aftermarket frame. 100% chromoly. Butted top and down tubes. Heat treated head tube and mid BB. Ovalized stays for increased clearance. Integrated chain tensioners. Removable brake mounts. 21" top tube.|
|Fork||Haro SD V3 fork. 100% heat-treated chromoly. Tapered legs, investment cast 5mm dropouts, 32mm offset.|
|Cranks||Odyssey Thunderbolt 2-piece cranks. 100% chromoly. 22mm spindle. 175mm length.|
|Bottom Bracket||Odyssey Mid, sealed bearings. 22mm.|
|Sprocket||Odyssey Boyd sprocket. CNC-machined alloy. 25T.|
|Pedals||Haro SD PC. Sealed bearings. Chromoly spindles.|
|Chain||Haro Baseline Half-Link.|
|Tires||Haro LaMesa. 20 X 2.4" (front and rear).|
|Front Hub||Odyssey Vandero. Alloy shell. Sealed bearings. 3/8" chromoly female axle. 2X nylon hub guards.|
|Rear Hub||Odyssey Antigram cassette. Alloy shell. Sealed bearings. 9T chromoly driver. 14mm chromoly male axle. Non-drive side hub guard.|
|Rims||Odyssey Hazard Lite. 36 hole alloy.|
|Brake||Odyssey Evo 2.5.|
|Brake Lever||Odyssey Monolever.|
|Rotor||Odyssey GTX-S Gyro, sealed bearing.|
|Grips||ODI Longneck Soft.|
|Handlebar||Odyssey Super Highway. 100% heat-treated chromoly. 9.5" rise.|
|Stem||Odyssey Walsh stem. CNC-machined alloy. 53mm reach.|
|Headset||Haro integrated headset, sealed bearings.|
|Seat||Haro Baseline Pivotal.|
|Seat Post||Haro Baseline Pivotal post.|
|Seat Post Clamp||Integrated.|
|Pegs||2X Haro Baseline PC sleeved pegs|
Geometry & Sizing Size A. Head Angle B. Seat Angle C. Top Tube D. Seat Tube E. Chainstay F. BB Height G. Stand Over 21 75° 71° 21" (533mm) 9.2" (235mm) 11.5" (293mm)
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
