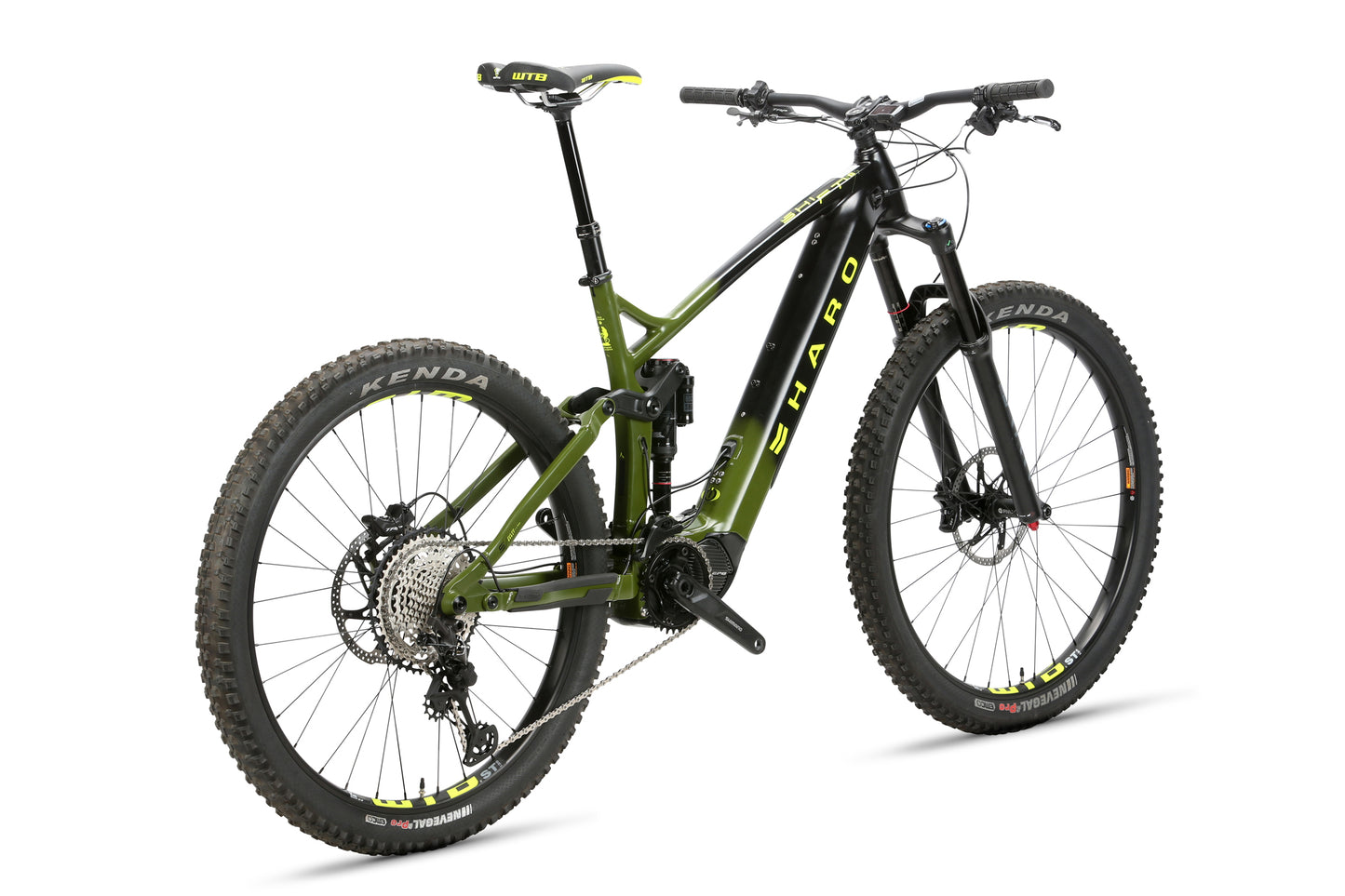

Shift Plus i/O 7
Shift Plus i/O 7
SKU: SKU:11971
Sizing Guide
Sizing Guide
Size | Inches | CM |
---|---|---|
S | 5'3" - 5'8" | 160 - 172.5 |
M | 5'7" - 5'11" | 170 - 180 |
L | 5'10" - 6'1" | 177.5 - 185 |
XL | 6' - 6'4" | 182.5 - 192.5 |
Share
FEATURES
- Shift I/O X6 Aluminum frame for Shimano STePS EP-800 motor, 160mm travel
- Rockshox Super Deluxe Select R Trunnion air shock
- Rockshox Yari RC 29" Boost, 160mm Debonair fork
- New Shimano EP-800, 250W. / 85Nm Torque motor
- Darfon 630Wh internal battery
- Shimano SW-EM800 Mode switch, Integrated speed sensor
- Shimano XT M8100 12-spd, Shadow Plus rear derailleur
- Shimano SLX M7100 12-spd 10-51T cassette
- Shimano FC-EM600 crankset, 34T 12-Spd Chainring
- Shimano MT-520 hydraulic 4-piston disc brakes, 203mm rotors
- X-Fusion Manic dropper post w/ 100/125mm travel
- Kenda Nevegal 2 29"/27.5" 2.6" TCS folding tires
Collapsible content
SPECIFICATIONS
FRAMESET | |
---|---|

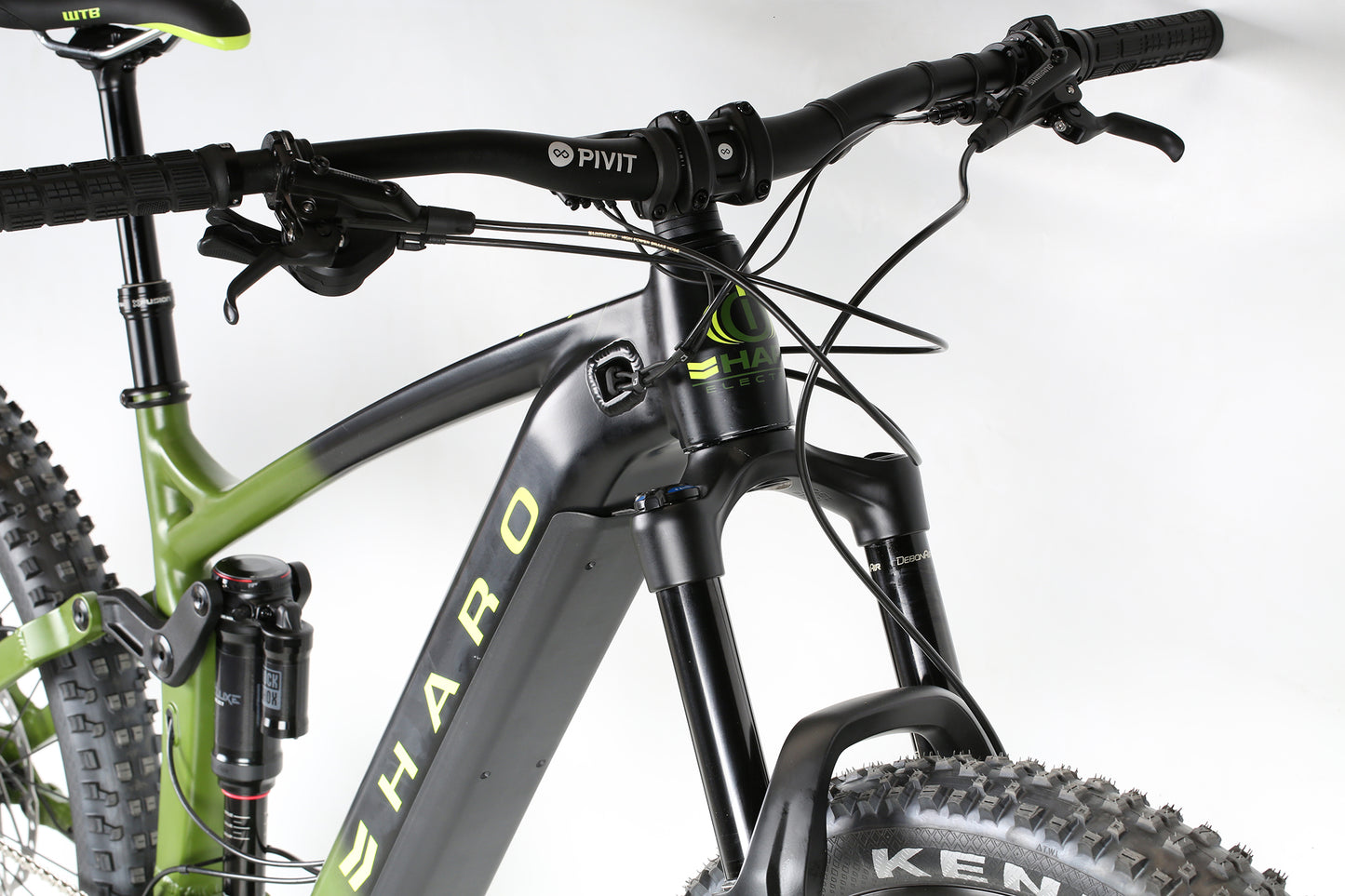

Frame | Shift Plus I/O X6 Aluminum frame for Shimano STePS EP-800 | 4-Bar linkage | Vertical shock | 160mm travel | Internal battery | Enduro bearings |
Fork | Rockshox Yari Motion Control RC 29" Boost | 160mm | E-MTB | 15x110 MXL Stealth | Debonair | Lockout |
Frame Shock | Rockshox Super Deluxe Select R 225x75mm | Trunnion Type | Debonair | 2 Tokens | MM Tune |
Colors | Matte Black / Army Green Fade |
Weight | 52 lbs |
DRIVETRAIN | |

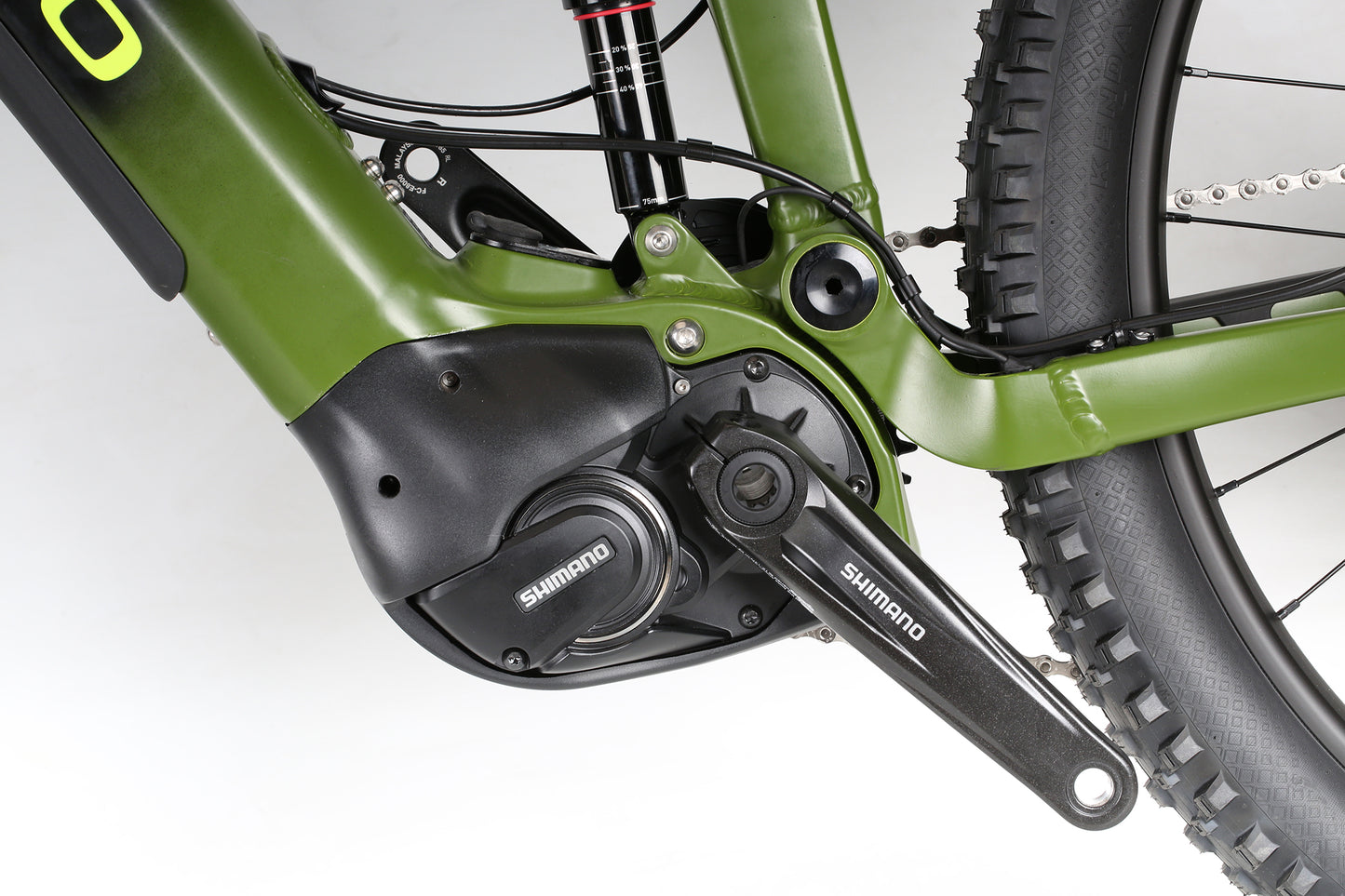

Cranks | Shimano FC-EM600 forged | 34T 12-Spd Chainring | 165mm all sizes |
Pedals | N/A |
Chain | KMC e12T | 12-spd | Turbo High Durability |
Front Derailleur | Shimano SM-CDE70 Chain-guide |

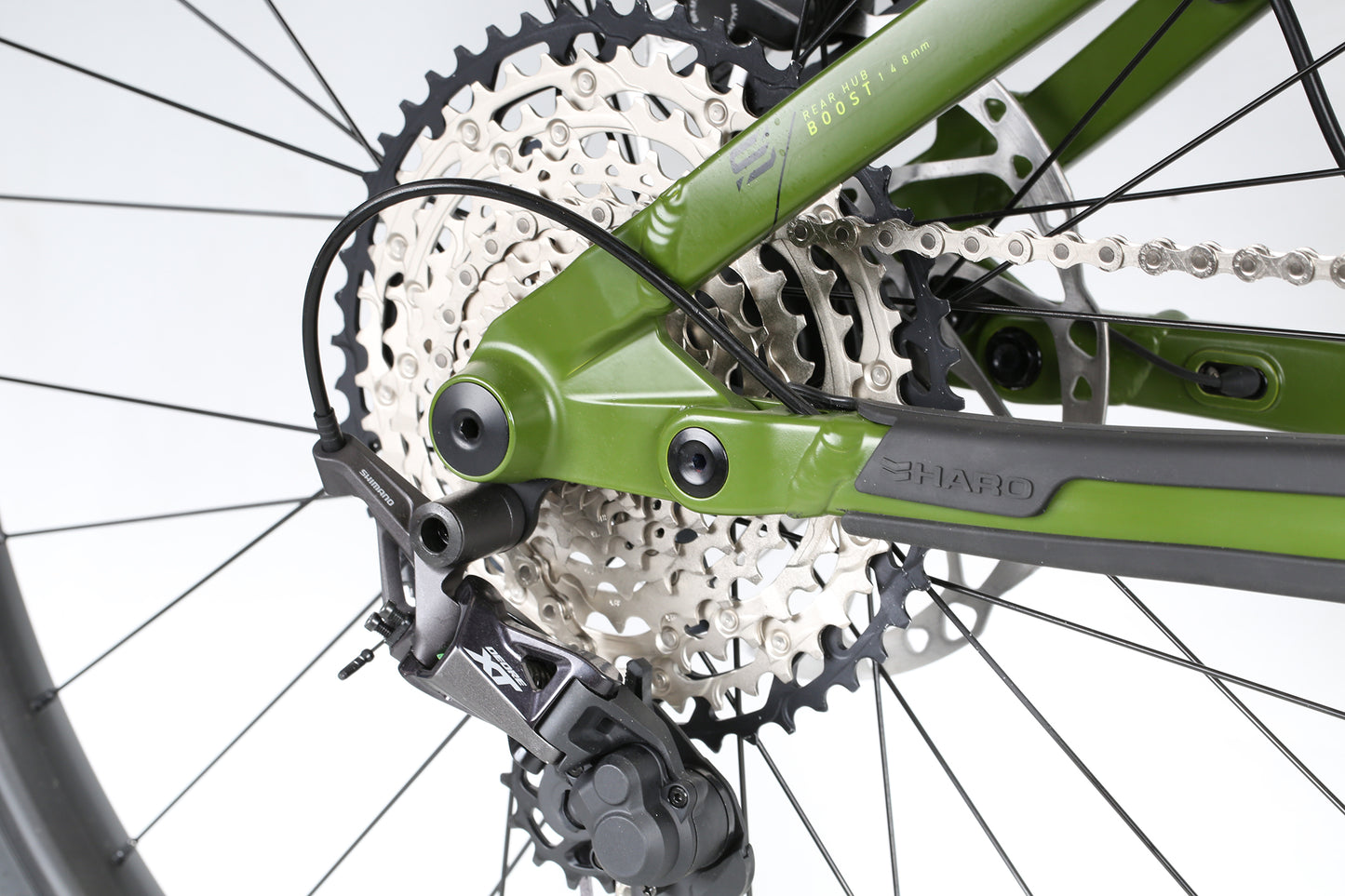

Rear Derailleur | Shimano XT M8100 12-spd | Shadow Plus |
Derailleur Shifter | Shimano SLX M7100 12-spd |
Freewheel/Cassette | Shimano SLX M7100 | 12-spd | 10-51T |

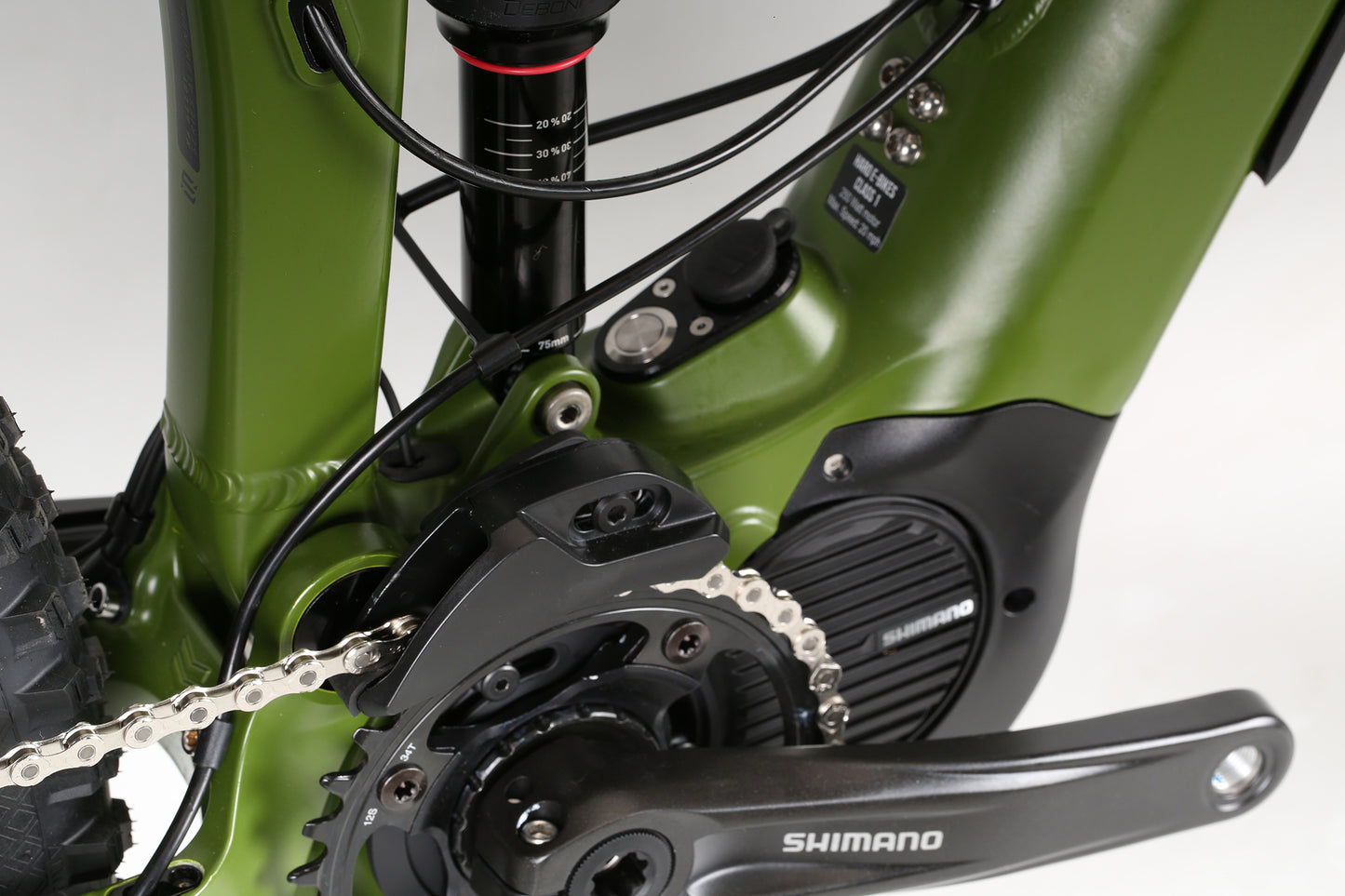

Drive Unit | New Shimano STePS EP-800 | 250W. | 85Nm Torque |
Battery | New Darfon internal 630Wh | Shimano STePS Compatible |
WHEELS | |
Tires | Kenda NEVEGAL 2 29x2.6" Front | 27.5x2.6" Rear | EMC 60tpi | Aramid beads | Tubeless Compatible |
Wheels/Rims | WTB ST i35 TCS 2.0 | Tubeless Ready | 29" Front | 27.5" Rear | 40mm wide | Double Wall |
Hubs | Front: Pivit Aluminum disc Boost SB | Rear: Pivit Micro-Drive | 12-spd | E-Bike specific | 32h | Sealed Bearings | Front & Rear Thru-Axles |
BRAKING SYSTEM | |

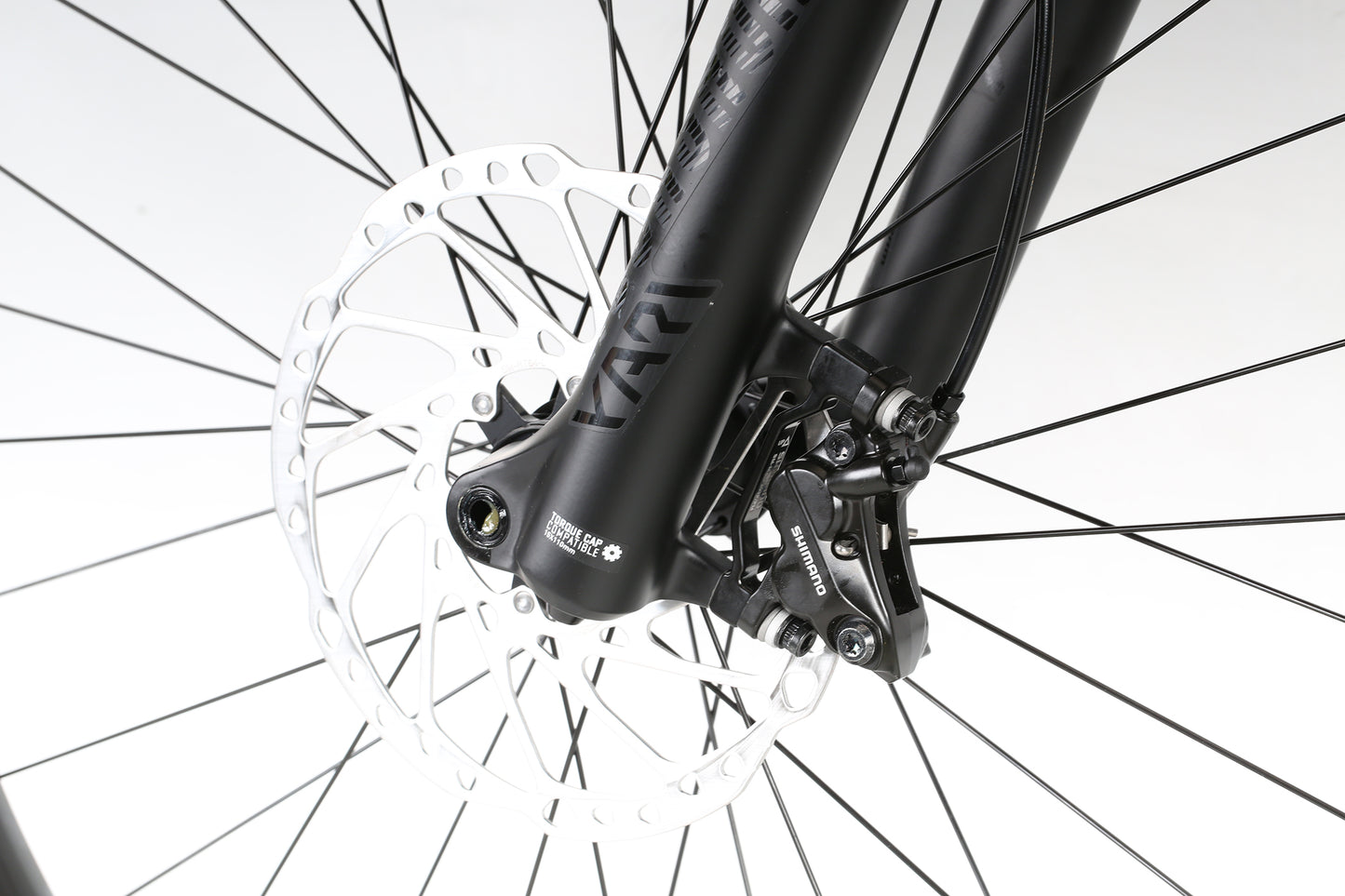

Brakes | Shimano BR-MT520 Hydraulic Disc | 4-Piston | 203mm Rotors w/ Integrated Speed-Sensor Magnet |
Brake Levers | Shimano BL-MT501 Hydraulic |
OTHER COMPONENTS | |
Grips/Tape | WTB Waffel Single Clamp |

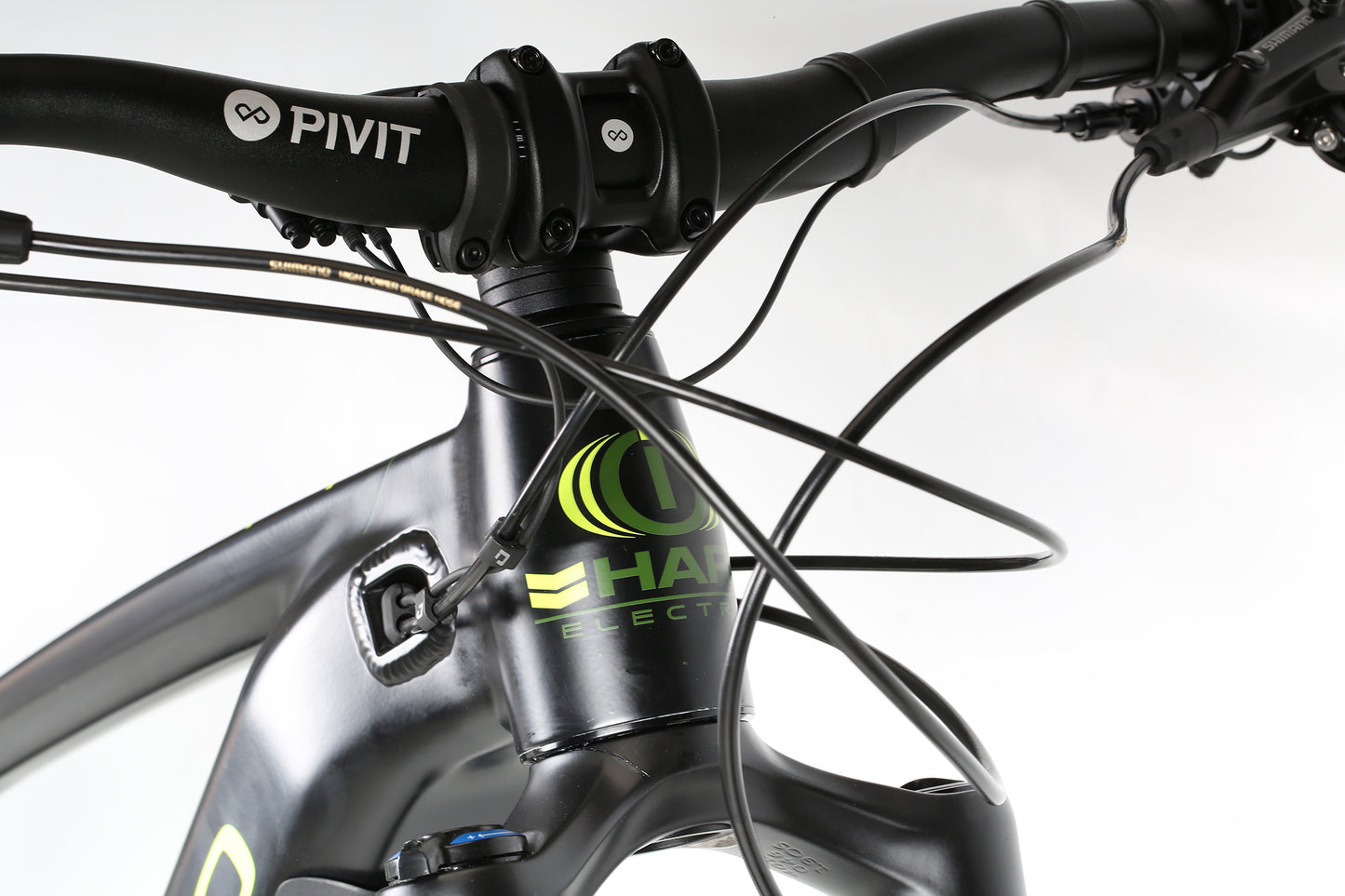

Handlebar | Haro Pivit Aluminum riser bar | 35mm O.D. | 780mm wide | 20mm rise |

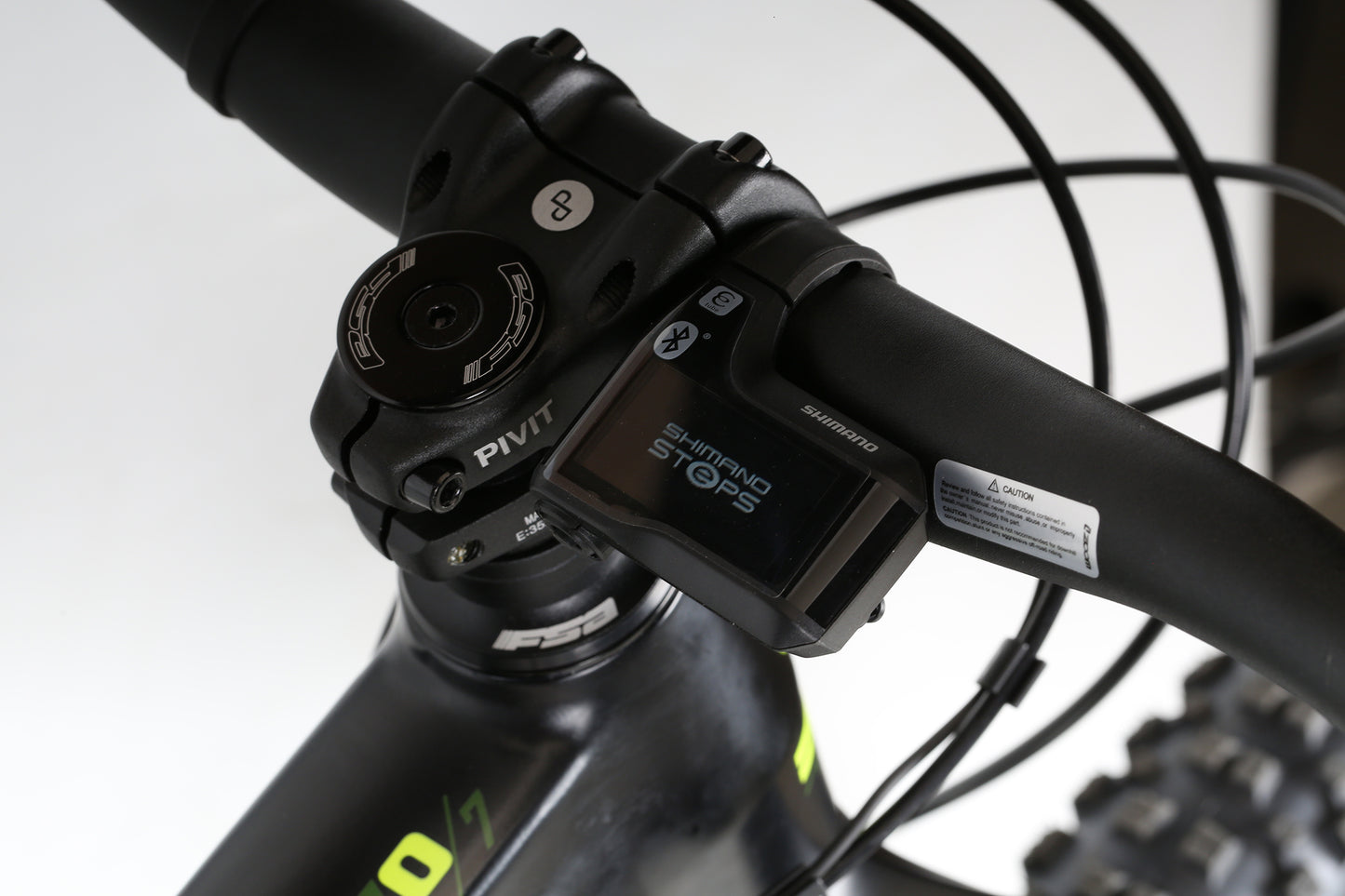

Stem | Haro Pivit 3D Forged alloy 35mm | Ext. 35mm |
Headset | FSA Orbit 1.5E ZS No.57E | Internal Aluminum cups 1-1/8"-1.5" | Bottom AC Bearing | 6mm top cone |

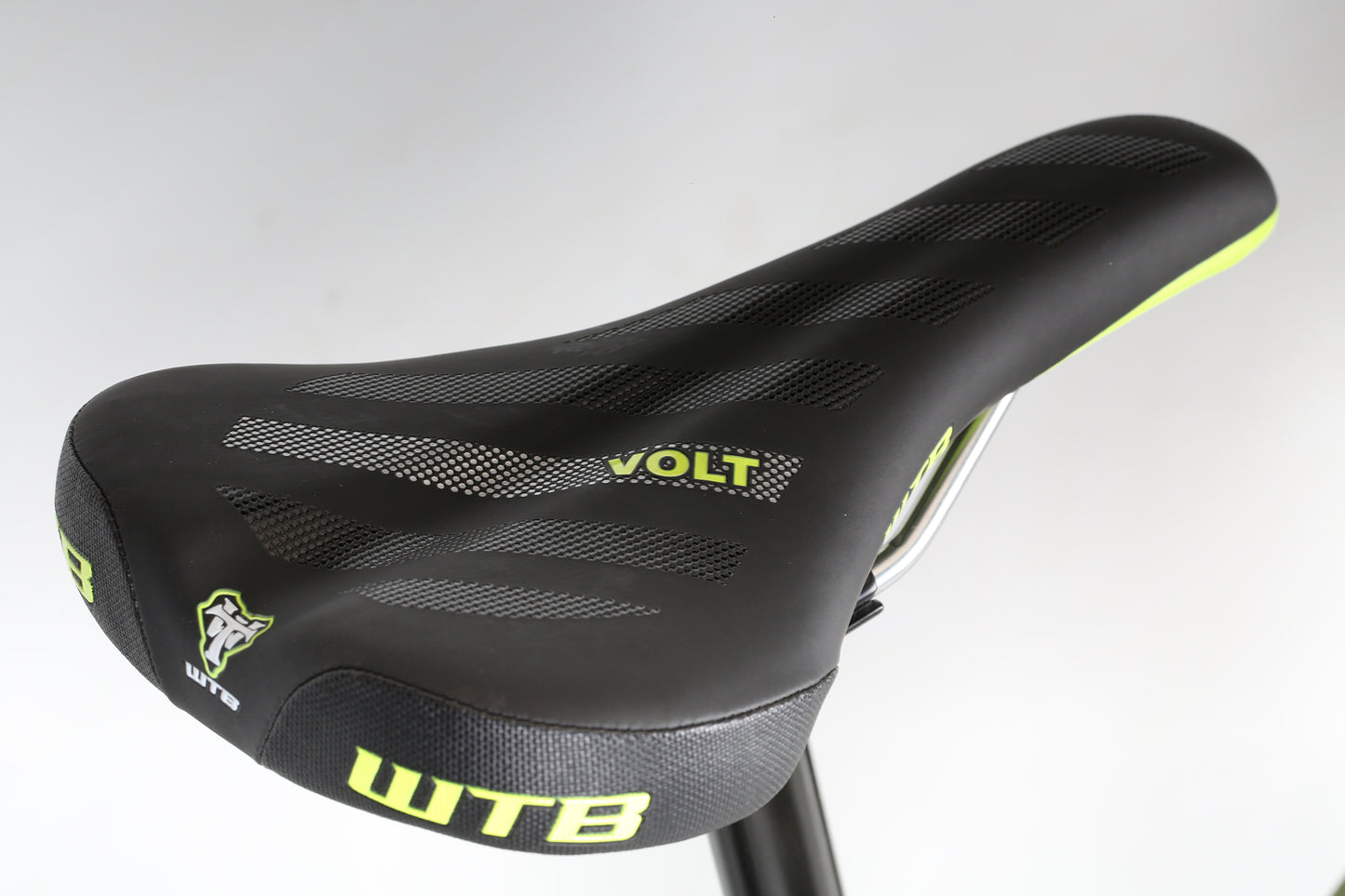

Saddle | WTB Volt Comp 150mm Wide |
Seat Post | X-Fusion Manic 100/125/150mm Dropper post | Horizontal remote | Aluminum 31.6mm |
Extras | Custom motor covers | Tubeless Valves | Darfon Battery charger | Battery Lock |
GEOMETRY
SIZE | S | M | L | XL |
---|---|---|---|---|
A. Seat Tube (C-T) | 394mm (15.5") | 432mm (17") | 470mm (18.5") | 495mm (19.5") |
B. Top Tube (Effective) | 565mm (22.2") | 599mm (23.6") | 627mm (24.7") | 655mm (25.8") |
C. Head Tube Angle | 65° | 65° | 65° | 65° |
D. Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
E. Chainstay Length | 450mm (17.7") | 450mm (17.7") | 450mm (17.7") | 450mm (17.7") |
F. BB Drop | 20mm (0.8") | 20mm (0.8") | 20mm (0.8") | 20mm (0.8") |
G. Wheelbase | 1193mm (47") | 1229mm (48.4") | 1259mm (49.6") | 1288mm (50.7") |
H. Head Tube Length | 100mm (3.9") | 100mm (3.9") | 110mm (4.3") | 120mm (4.7") |
I. Standover | 767mm (30.2") | 786mm (30.9") | 789mm (31.1") | 790mm (31.1") |
J. Stack Height | 594mm (23.4") | 631mm (24.8") | 640mm (25.2") | 649mm (25.6") |
K. Reach | 425mm (16.7") | 450mm (17.7") | 475mm (18.7") | 500mm (19.7") |
L. Fork Height | 556mm (21.9") | 568mm (22.4") | 568mm (22.4") | 568mm (22.4") |
M. Fork Offset | 46mm (1.8") | 51mm (2") | 51mm (2") | 51mm (2") |
N. Stem Length | 35mm | 35mm | 35mm | 35mm |
O. Bar Width | 780mm | 780mm | 780mm | 780mm |
P. Crank Length | 165mm | 165mm | 165mm | 165mm |
No more horrible suffering!
Eats hills and flies down them. Mods include carb bar carb seat 40mm stem (cool ano camo) NEVAGAL! what a great tire combo. Have gone 60 mi on a charge. And the brakes....they are still perfect after 500 mi. Not Shimano, as on the site, but TRP, Slate with 203 rotor and added thickness. So Cal hills are the toughest anywhere around here. Practically effortless to ride anywhere. I am 70 yrs . I ride really tough conditions, from the beach bluff to the desert, and every thing between. The Factory support is top notch. This Awesome machine has far exceeded my expectations.
Love the MX-style wheels with the 29" front and 27.5" rear. The EP-800 motor is a blast especially with a high Trail mode set-up, the Rockshox suspension platform works great, the rear shock setting is adapted to the e-bike weight and the Shimano XT / SLX 12-speed drive train with the reinforced KMC chain works great. The 630Wh battery is great for longer rides...I have now more than 600 miles on the Shift I/O 7 and had no issue at all. I really love that bike and just updated it with a new Rockshox Domain 38 fork: Perfect...
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
