| FRAMESET | |
|---|---|

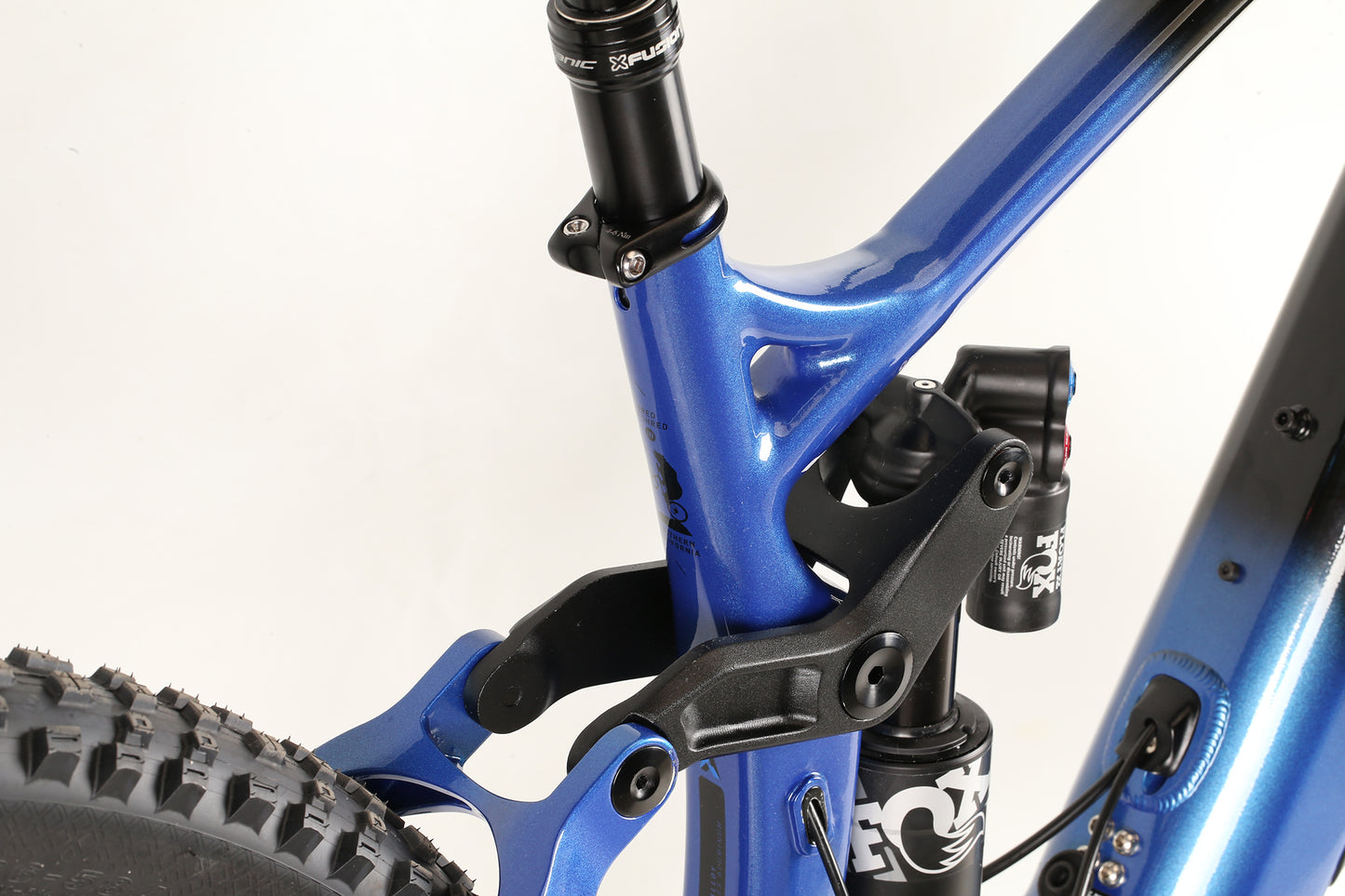

| Frame | Shift Plus I/O X6 Aluminum frame for Shimano STePS E8000 | 4-Bar linkage Aluminum Rocker | vertical shock | 160mm travel | Internal Battery | Enduro Bearings |
| Fork | Fox Rhythm 36 FLOAT "E" | 29in | 160mm travel | Grip Cartridge | Sweep-Adjuster | 15x110mm Boost axle | Hydraulic Lockout |

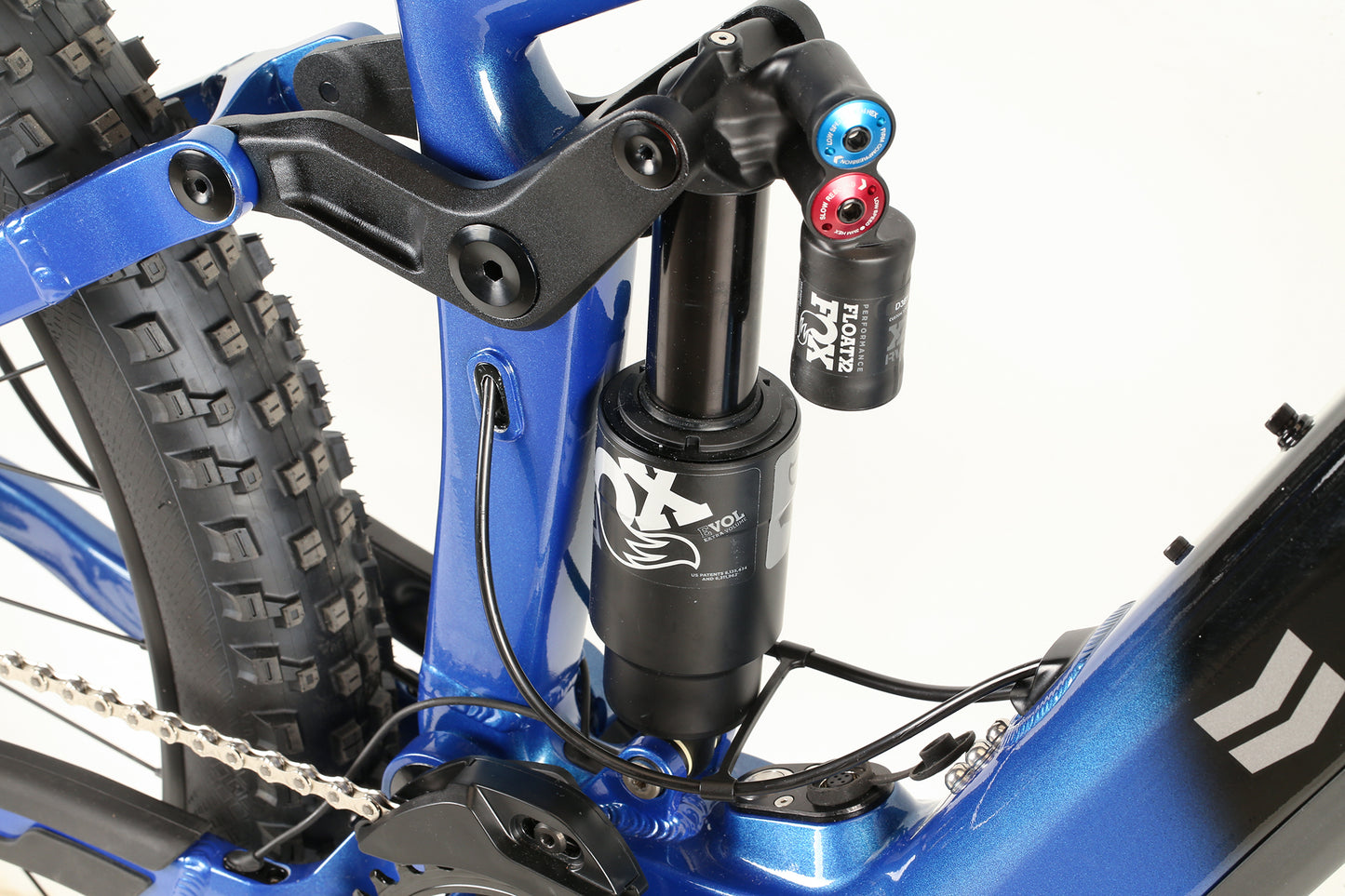

| Frame Shock | Fox Float X2 | Air shock | Trunnion | 225x75mm | Low Speed Compression & Low-Speed Rebound adjustments |
| Colors | Black / Metallic Blue Fade |
| DRIVETRAIN | |

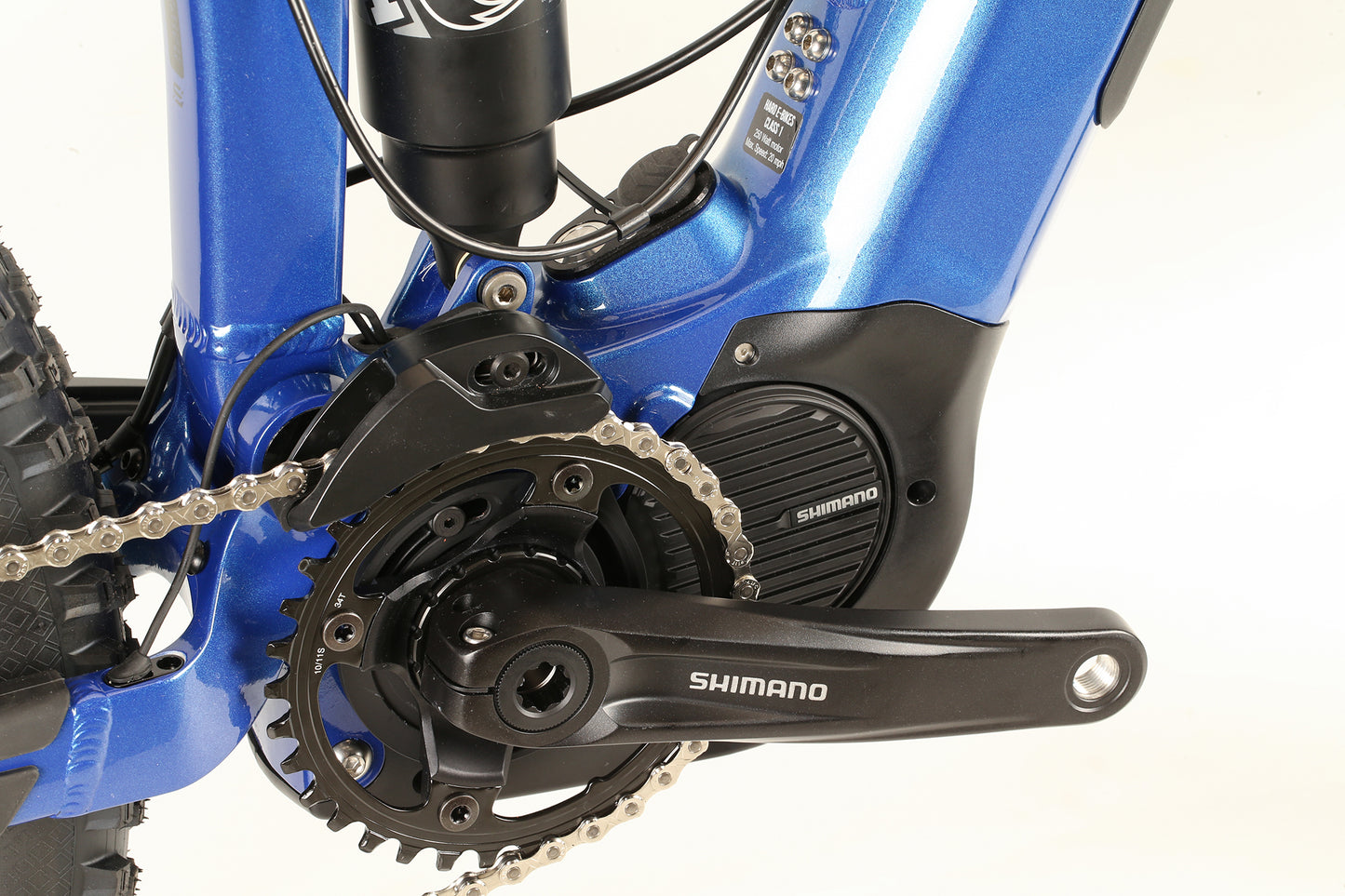

| Cranks | Shimano E8000 forged | 34T Chainring | 165mm all sizes |
| Pedals | N/A |
| Chain | KMC e11T | 11-spd | Turbo High Durability |
| Bottom Bracket | |
| Front Derailleur | Shimano E-8000 chain guide |

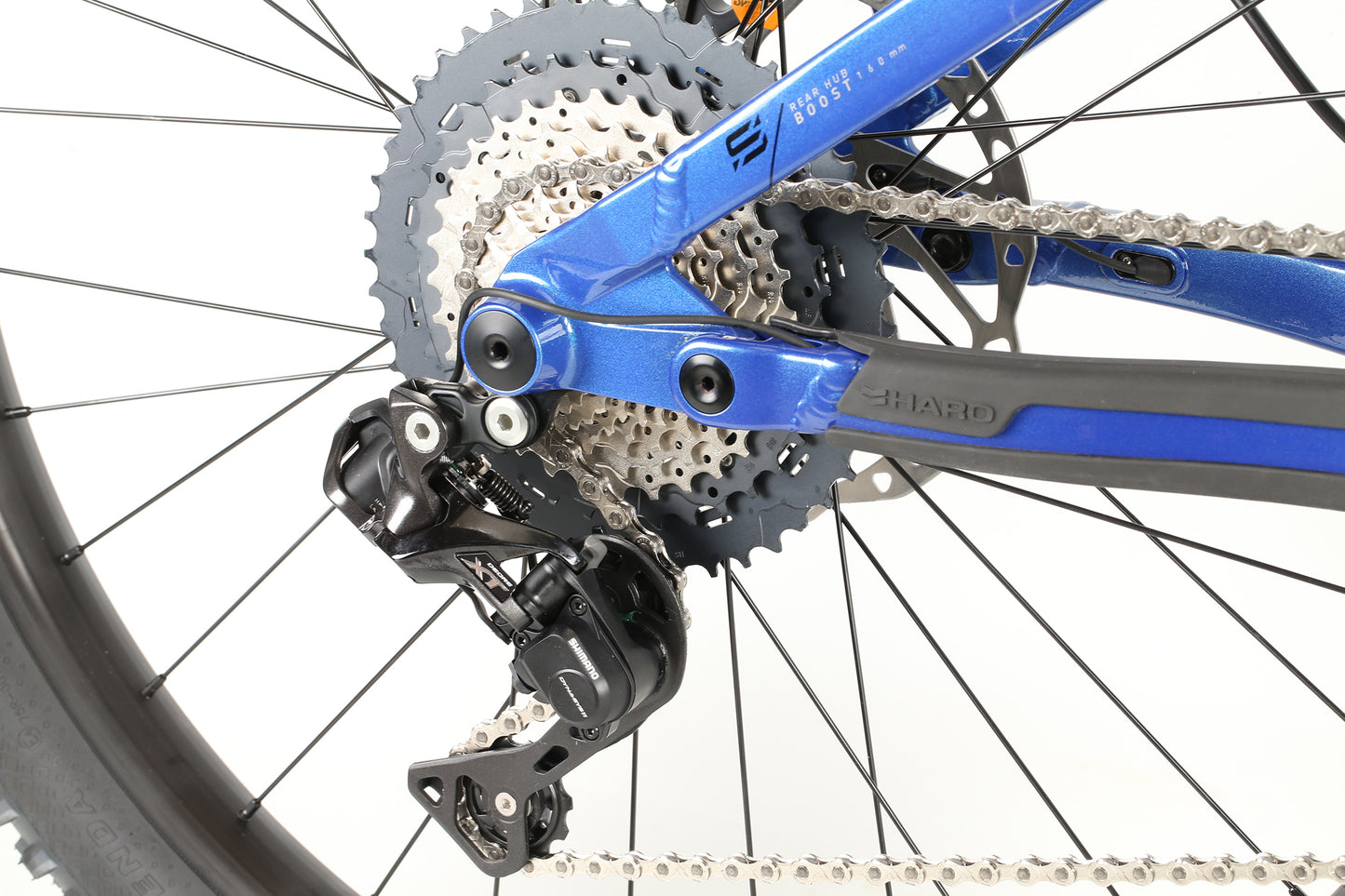

| Rear Derailleur | Shimano XT Di2, 11-spd | Shadow Plus |
| Derailleur Shifter | Shimano XT Di2 11-spd Switch |
| Freewheel/Cassette | Shimano Deore XT M8000 | 11-spd, 11-46T |
| Drive Unit | Shimano STePS E8000 | 70Nm Torque |
| Battery | New Darfon internal 630wh | STePS Compatible |
| WHEELS | |
| Tires | Kenda NEVEGAL 2 29x2.6" Front | 27.5x2.6" Rear | EMC | 60tpi | Aramid beads | Tubeless Compatible |
| Wheels/Rims | WTB ST i35 TCS 2.0 | Tubeless Ready | 29" Front & 27.5" Rear | 40mm wide | Double Wall |
| Hubs | Pivit Aluminum disc Boost | E-Bike specific | 32h cassette | Sealed Bearings | Front & Rear Thru-Axle |
| BRAKING SYSTEM | |
| Brakes | Shimano BR-MT520 Hydraulic Disc | 4-Piston | 203mm Rotors w/ Integrated Speed-Sensor Magnet |
| Brake Levers | Shimano BL-MT501 Hydraulic |
| OTHER COMPONENTS | |
| Grips/Tape | WTB Waffel Single Clamp |

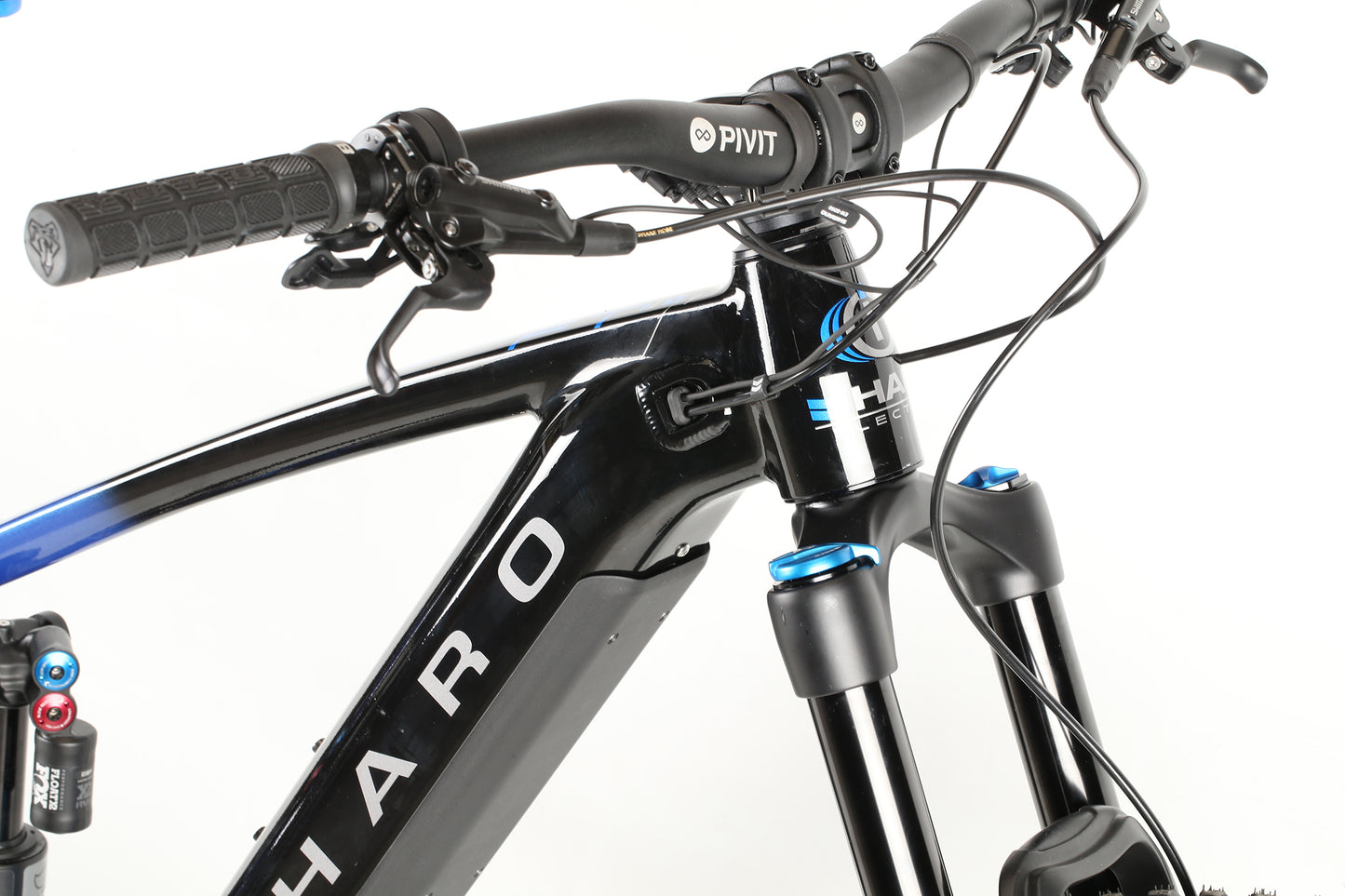

| Handlebar | New Pivit Alloy riser bar | 35mm O.D. | 780mm wide | 20mm rise |
| Stem | New Pivit 3D Forged alloy 35mm | Ext. 35mm |
| Headset | FSA Orbit 1.5E ZS No.57E | Internal alloy cups 1-1/8"-1.5" | Bottom AC Bearing | 6mm Cone |

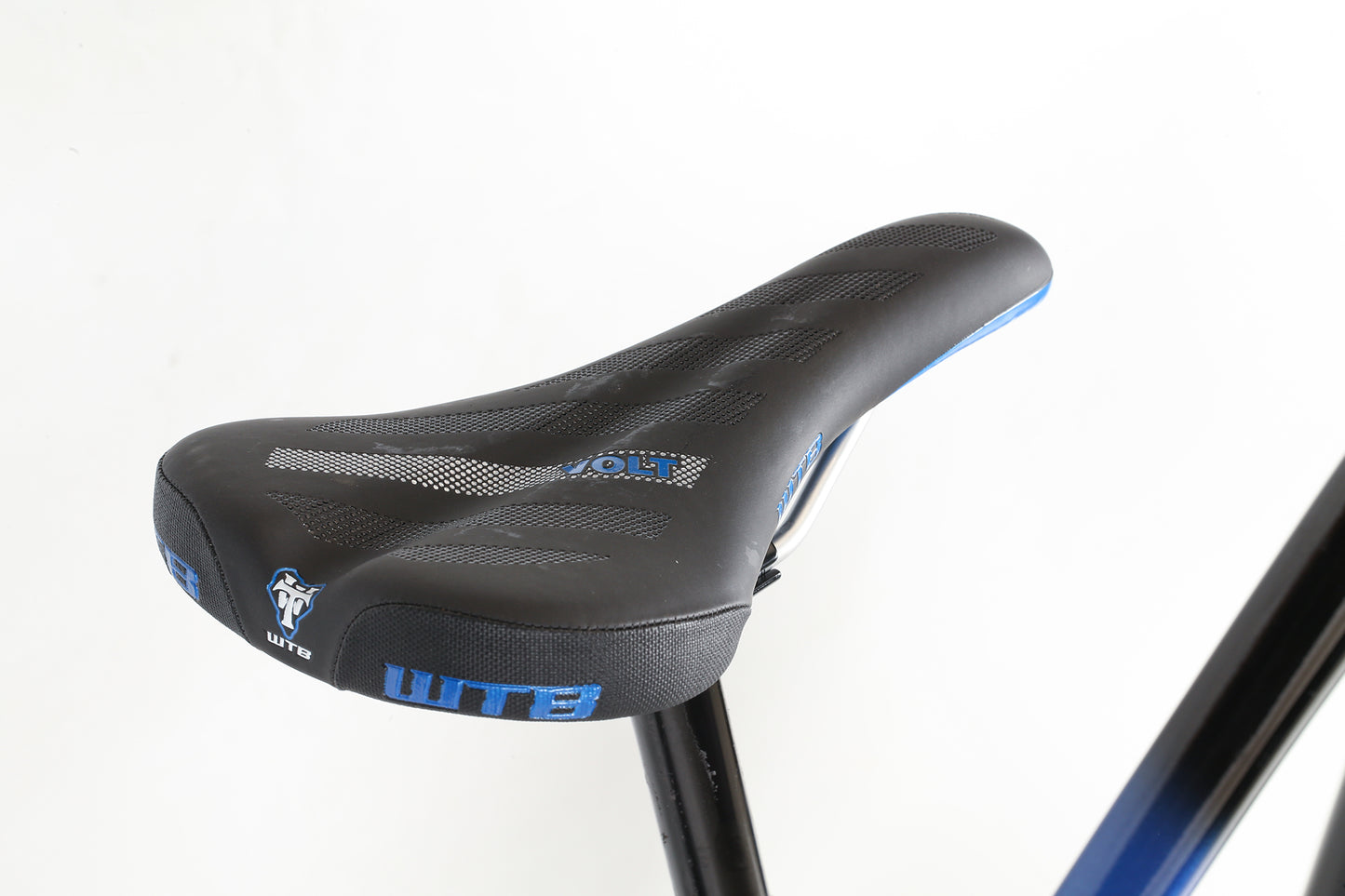

| Saddle | WTB Volt Comp 150mm Wide |

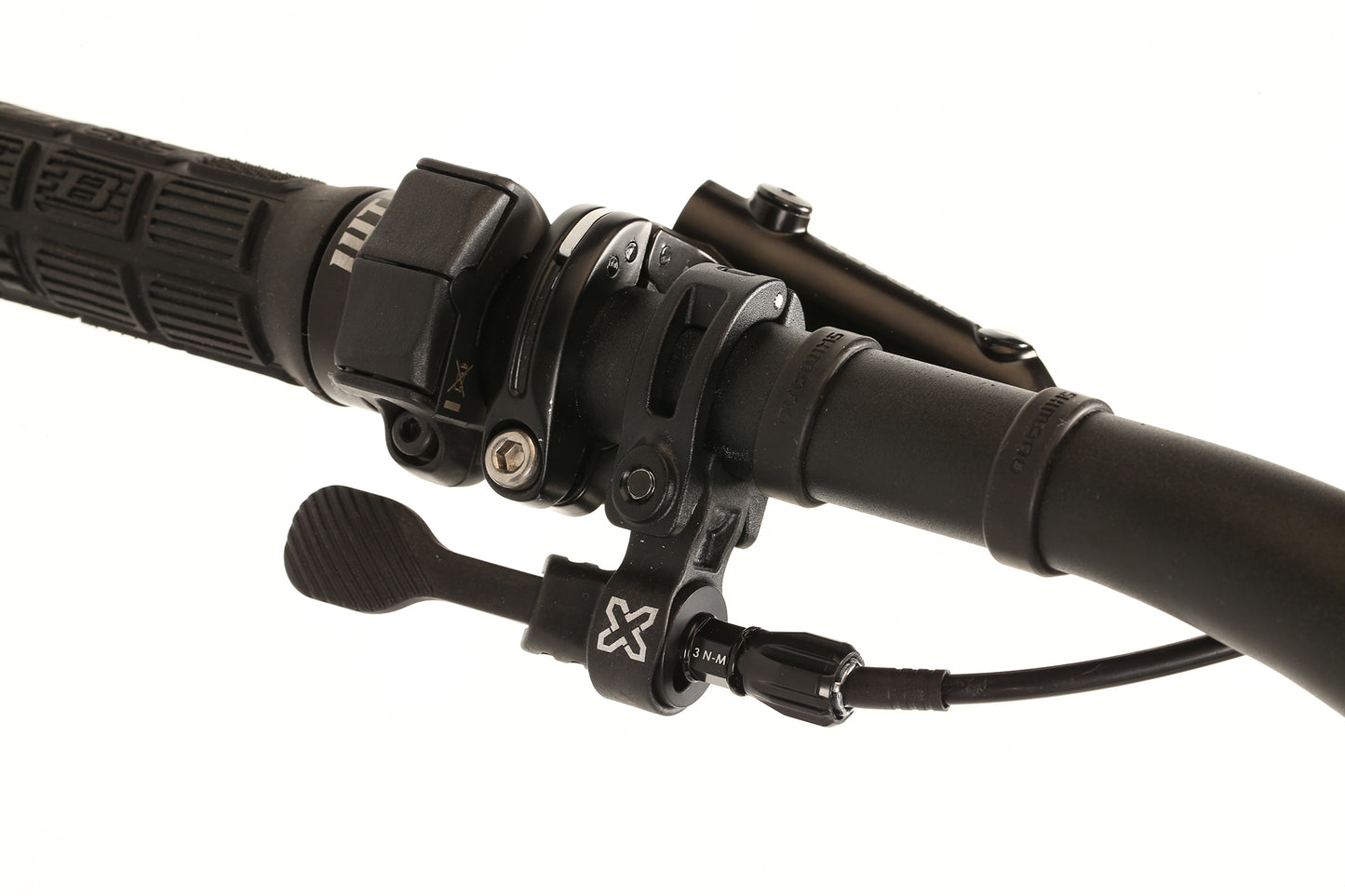

| Seat Post | X-Fusion Manic 100/125mm Dropper post | Horizontal remote | Aluminum 31.6mm |
| Extras | Motor covers | Tubeless Valves | Darfon Battery charger | Battery Lock |
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| A. Seat Tube (C-T) | 394mm (15.5") | 432mm (17") | 470mm (18.5") | 495mm (19.5") |
| B. Top Tube (Effective) | 565mm (22.2") | 599mm (23.6") | 627mm (24.7") | 655mm (25.8") |
| C. Head Tube Angle | 65° | 65° | 65° | 65° |
| D. Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| E. Chainstay Length | 450mm (17.7") | 450mm (17.7") | 450mm (17.7") | 450mm (17.7") |
| F. BB Drop | 20mm (0.8") | 20mm (0.8") | 20mm (0.8") | 20mm (0.8") |
| G. Wheelbase | 1193mm (47") | 1229mm (48.4") | 1259mm (49.6") | 1288mm (50.7") |
| H. Head Tube Length | 100mm (3.9") | 100mm (3.9") | 110mm (4.3") | 120mm (4.7") |
| I. Standover | 769mm (30.3") | 784mm (30.9") | 787mm (31") | 788mm (31") |
| J. Stack Height | 596mm (23.5") | 627mm (24.7") | 636mm (25") | 645mm (25.4") |
| K. Reach | 425mm (16.7") | 450mm (17.7") | 475mm (18.7") | 500mm (19.7") |
| L. Fork Height | 556mm (21.9") | 568mm (22.4") | 568mm (22.4") | 568mm (22.4") |
| M. Fork Offset | 46mm (1.8") | 51mm (2") | 51mm (2") | 51mm (2") |
| N. Stem Length | 35mm | 35mm | 35mm | 35mm |
| O. Bar Width | 780mm | 780mm | 780mm | 780mm |
| P. Crank Length | 165mm | 165mm | 165mm | 165mm |
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
