Shift R7 29
Shift R7 29
SKU: SKU:11456
Couldn't load pickup availability
Share
FEATURES
- Shift R X6 Aluminum 4-Bar Linkage frame, 140mm rear travel, Boost thru-axle
- X-Fusion O2 Pro RL Trunnion rear shock w/ lockout
- Rockshox Recon RL Boost fork, 150mm travel
- Sram SX DUB Boost crankset, 32T alloy chainring
- Sram SX 12-spd rear derailleur
- Sram SX 12-spd shifter & 11-50T Eagle cassette
- Kenda 29"x2.4" Regolith tires
- Weinmann U-28TL rims, tubeless compatible
- Shimano Deore M400 disc brakes
- X-Fusion Manic 125/150mm internal dropper post & remote
PRODUCT INFORMATION
SPECIFICATIONS
| FRAMESET | |
|---|---|
| Frame | Shift R X6 Aluminum series dual suspended 4-Bar linkage frame | 29"x140mm travel | Tapered 1.5" head tube | 73mm threaded BSA | Enduro bearings | Boost 12mm thru-axle dropouts |
| Fork | RockShox Recon RL | 29" B | 1.5" Tapered Aluminum steer | 150mm travel | Solo Air hydraulic lockout | 15x110mm Stealth Thru-Axle |
| Frame Shock | X-Fusion 02 Pro RL | Trunnion | 185x55mm Rebound adjuster | hydraulic lockout |
| Colors | Matte Black / Army Green Fade |
| DRIVETRAIN | |
| Cranks | Sram SX EAGLE BOOST148 DUB 32T Chainring | All sizes 170mm |
| Pedals | N/A |
| Chain | Sram SX EAGLE 12S Grey | Missing Link |
| Bottom Bracket | Sram DUB BSA MTB 73mm | Aluminum cups | sealed cartridge |
| Front Derailleur | |
| Rear Derailleur | Sram SX-1-A1 12-spd |
| Derailleur Shifter | Sram SL SX EAGLE TRIGGER, right only | 1x12-spd |
| Freewheel/Cassette | Sram PG1210 EAGLE 11-50T 12-spd |
| WHEELS | |
| Tires | Kenda Regolith | 29"x2.4" |
| Wheels/Rims | Weinmann U-28TL Disc 29" x 32h | Aluminum double wall rims | Tubeless Compatible |
| Hubs | Shimano MT400-B, Boost Disc alloy 32h | 15x110mm Frt & 12x148mm Rear Thru-Axles |
| BRAKING SYSTEM | |
| Brakes | Shimano hydraulic BR-MT400 | 180/180mm Center Lock rotors |
| Brake Levers | Shimano BL-MT401 hydraulic |
| OTHER COMPONENTS | |
| Grips/Tape | WTB Weirwolf |
| Handlebar | Pivit aluminum 20mm riser bar 31.8mm | 780mm | 6 Deg. sweep |

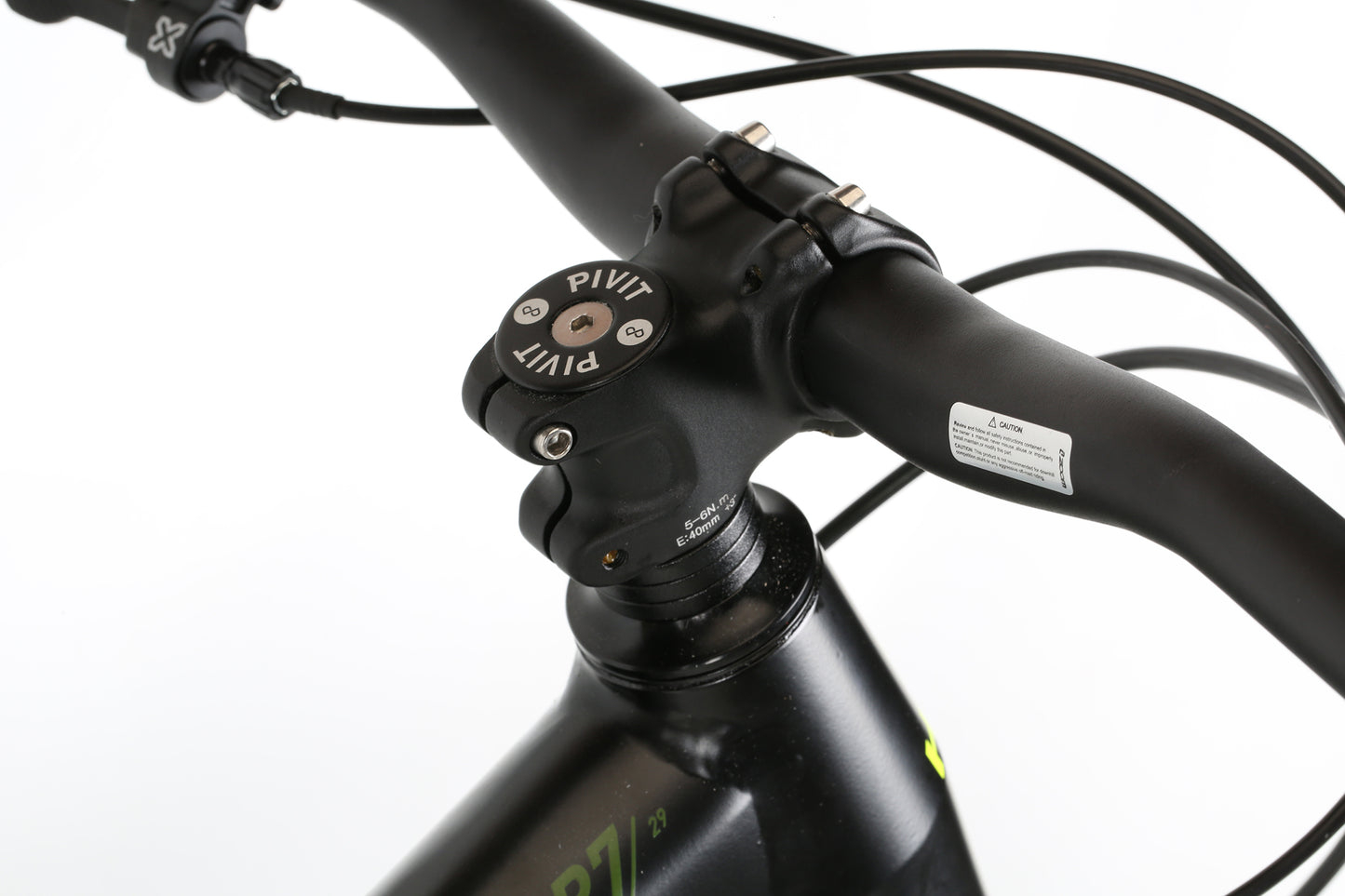

| Stem | Pivit alloy Trail 0 Deg. | 4 bolts | ext.: 40mm |
| Headset | FPD DOZER-1160A-2 1.5" ACB bottom for 44/56mm head tube | 8mm Top Cone |
| Saddle | WTB Volt Sport w/ color accents |
| Seat Post | X-Fusion Manic 125/150mm Dropper post | Shifter-type remote | Aluminum | 31.6x150/125mmx400 |
| Seat Clamp | Pivit alloy 35mm quick release |
| Extras | Frame bearings by Enduro USA |
GEOMETRY
| SIZE | M | L | XL |
|---|---|---|---|
| Seat Tube (C-T) | 433mm (17") | 471mm (18.5") | 496mm (19.5") |
| Top Tube (Effective) | 603mm (23.7") | 632mm (24.9") | 660mm (26") |
| Head Tube Angle | 66° | 66° | 66° |
| Seat Tube Angle | 76° | 76° | 76° |
| Chainstay Length | 448mm (17.6") | 448mm (17.6") | 448mm (17.6") |
| BB Drop | 30mm (1.2") | 30mm (1.2") | 30mm (1.2") |
| Wheelbase | 1215mm (47.8") | 1244mm (49") | 1273mm (50.1") |
| Head Tube Length | 100mm (3.9") | 110mm (4.3") | 120mm (4.7") |
| Standover | 740mm (29.1") | 763mm (30") | 770mm (30.3") |
| Stack Height | 618mm (24.3") | 627mm (24.7") | 636mm (25") |
| Reach | 450mm (17.7") | 475mm (18.7") | 500mm (19.7") |
| Axle to Crown | 563mm (22.2") | 563mm (22.2") | 563mm (22.2") |
| Fork Offset | 51mm (2") | 51mm (2") | 51mm (2") |
| Stem Length | 40mm | 40mm | 40mm |
| Bar Width | 760mm | 760mm | 760mm |
| Crank Length | 170mm | 170mm | 170mm |
| Wheel Size | 29 | 29 | 29 |
SIZING GUIDE
| Size | Inches | CM |
|---|---|---|
| M | 5'7" - 5'11" | 170 - 180 |
| L | 5'10" - 6'1" | 177.5 - 185 |
| XL | 6' - 6'4" | 182.5 - 192.5 |
MANUALS, GUIDES & DOWNLOADS
Downloadable PDFs can be found in Manuals & Guides
About year and a half ago I purchased 2020 Haro r7 29er XL from inkys in San Diego. Shortly after in about 5 months the rear triangle and the rear hub failed. To it back where I purchased it from they said hub is not warranty they can fix it for $50. but the frame is ok no problem they had the bike for 3/4 months finally got it back with the used part and they didn’t fix the rear hub. The shop did not honor service for life they said because I upgraded they will not cover the bike and don’t bring it back. NO Problem u lost my service. Fast forward September 10th 2021 same thin happened same spot. Called Haro directly talked toJohn Webber explained what happened and what’s going on. He said no problem since they are local he said bring it so he can see. Went there he looked at it said yes no problem it was a design flow and they fixed it. He had a new part in stock and he said leave the bike it will be done tomorrow. WOW thanks John. I was very happy with the great service and great bunch of guys at Haro. Again thank you very much l. I love my Haro
This bike is a trail slayer! With such a reasonable price it allows me room for upgrades! Out of the box it is durable, fast, and maneuverable. It climbs well and descends well. I can not wait to swap over to a Shimano drivetrain. It is hard to go to Sram after using Shimano for so many years
Honestly, the reason why I bought this bike because it was the only extra-large mountain bike in Western North Carolina. The price was decent and the ride is awesome. Rolls very nice in the rocks and roots I got this because my other mountain bike (27.5)I won't mention the manufacturer, the frame broke in two places going down a single track trail. It is being replaced by the manufacturer but I needed a bike and I needed one fast. I'm very surprised and impressed with the components and the ride for the price. The only upgrade I did was get new tires and made them tubeless.
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
