      Haro MTB Home / Products / Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5
      Shift S3 27.5

      Haro MTB

      11402

      Shift S3 27.5

      $1,299.99
      Coming Soon

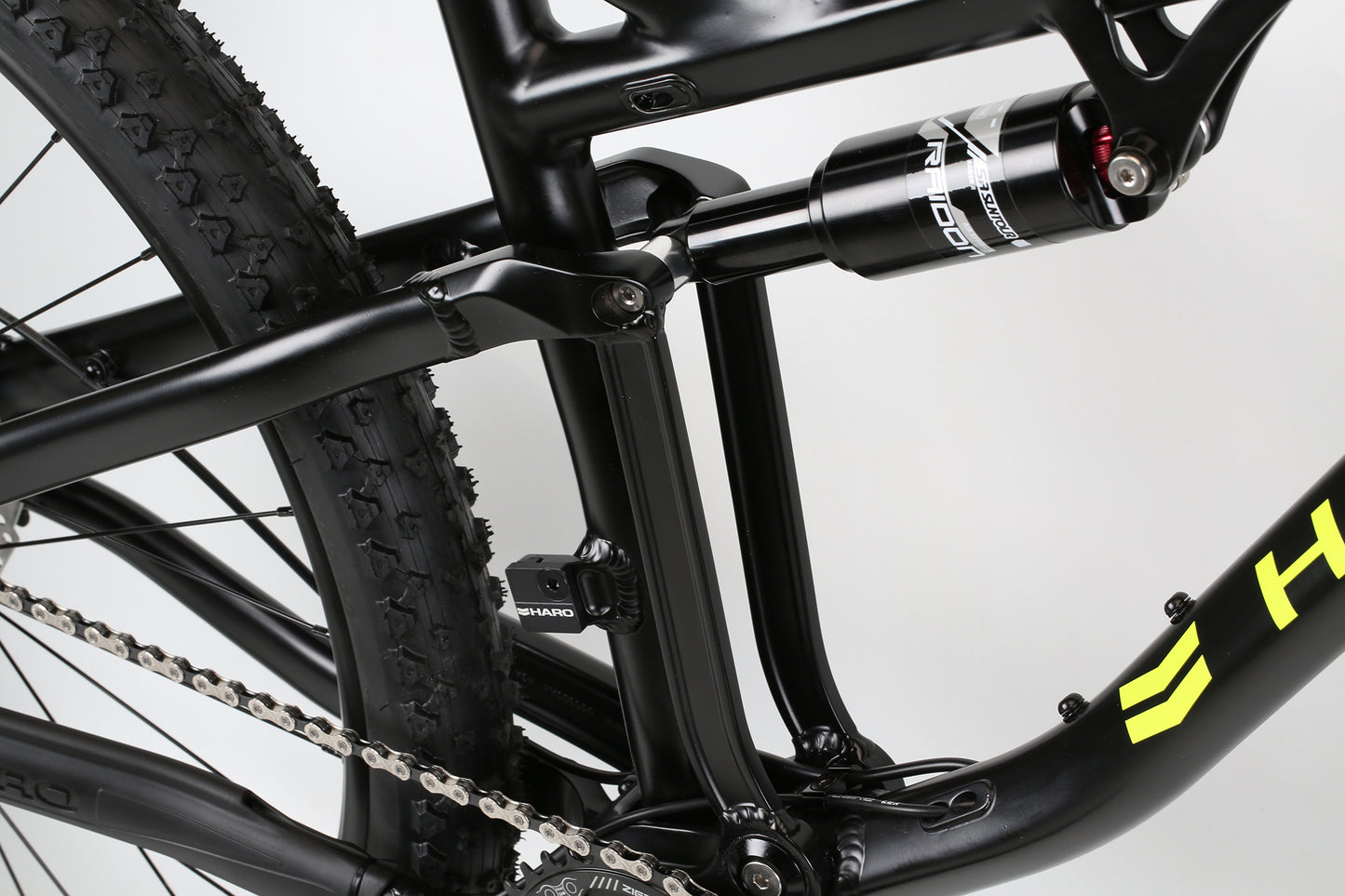

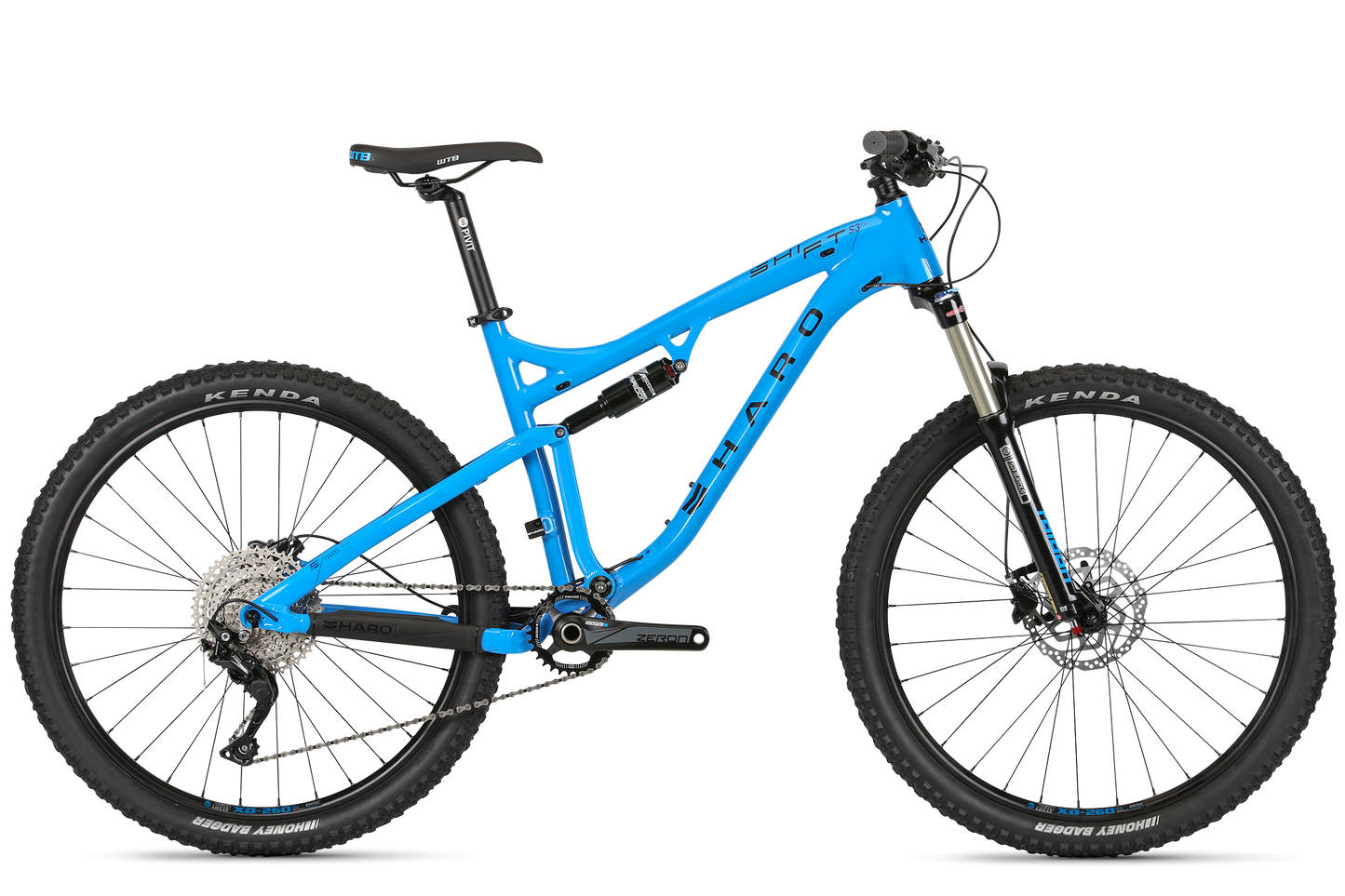

      The Shift S3 is an excellent full suspension performer for Trail riding. With its 1x transmission, the 27.5" Shift S3 offers a wider gearing ratio for easier climbing. Its X6 alloy frame with tapered head tube and 120mm of travel features a simple and efficient single pivot suspension design, which allows for an easy and low-cost maintenance. The Suntour Raidon XC air fork and rear shock suspension package provides 120mm of travel while the new 1x Shimano Deore drive-train with a Deore 11-46T 10-speed cassette is matched to a Suntour Zeron 30T crankset for a wider gearing choice. Last but not least, efficient stopping is provided by a set of Shimano MT-200 disc brakes complete with 180/160mm rotors.

      Customer Reviews

      No reviews yet
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)

      Features

      Specifications

      FRAMESET
      FrameShift S X6 Aluminum series dual suspended Single Pivot frame | 27.5"x120mm travel | Tapered 1.5" head tube | 73mm threaded BSA | Enduro bearings | 9mm Q/R rear
      ForkSR Suntour Raidon-XC-LO-R-27.5 | 1.5" Tapered Aluminum steer tube | 120mm travel | Air spring | Hydraulic lockout
      Frame ShockSuntour Raidon R | 190X51
      ColorsBlack / Neon, Vivid Blue
      DRIVETRAIN
      CranksSuntour Zeron 1X AX-S-30 | 30T Steel Zig-Zag Chainring
      PedalsN/A
      ChainKMC X10 NP/GY | Missing Link
      Bottom BracketSuntour BB-BKA008-C | 73mm | sealed cartridge
      Front Derailleur
      Rear DerailleurNew Shimano Deore RD-M5120 | 10-spd | Shadow Plus
      Derailleur ShifterNew Shimano Deore SL-M4100-R 10-spd

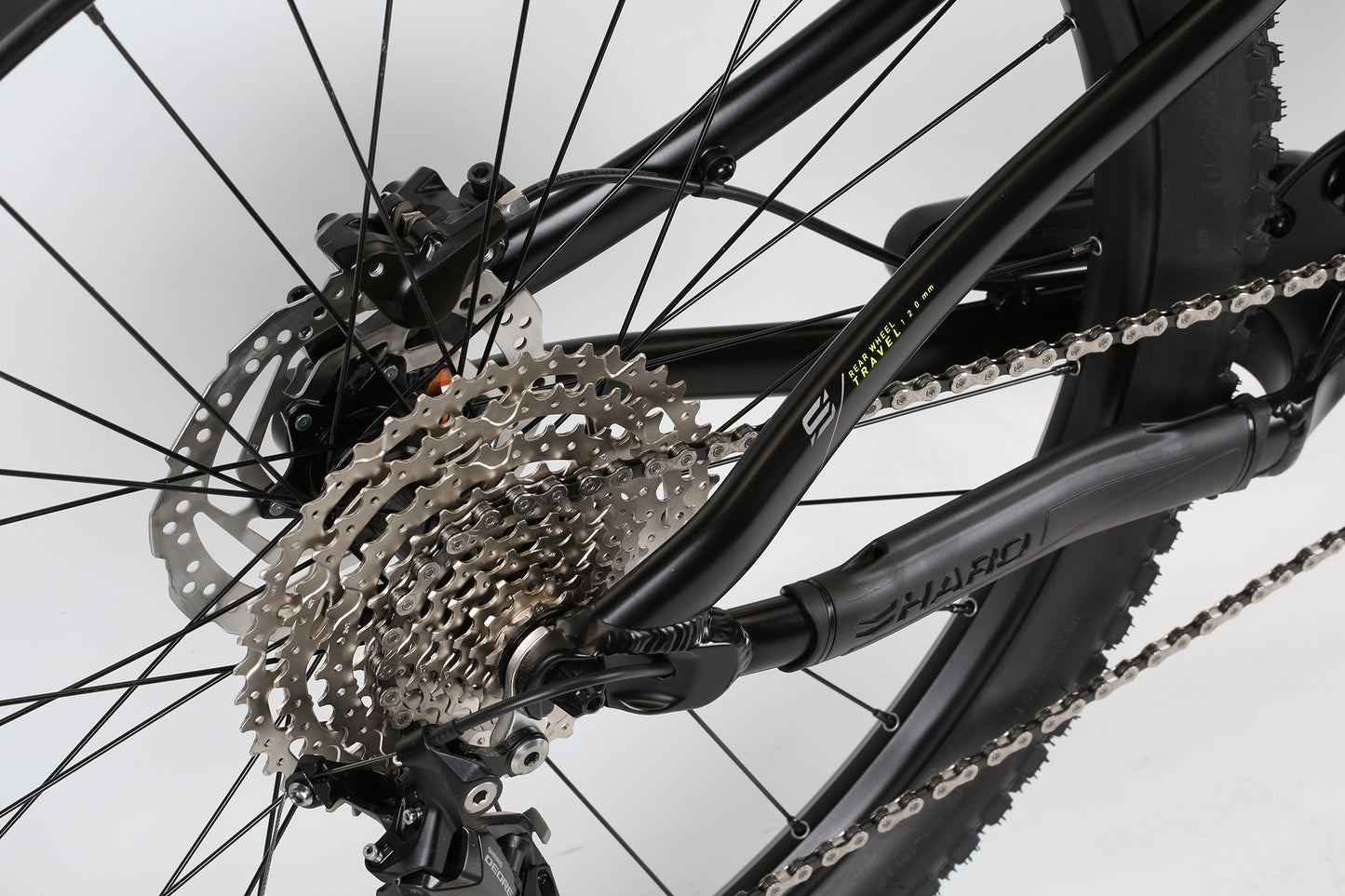

      Freewheel/CassetteNew Shimano Deore CS-M4100-10 | 10-spd | 11-46T
      WHEELS
      TiresKenda Honey Badger 27.5*2.20 | 30tpi
      Wheels/RimsPivit XD-260 Disc | 27.5" x 32h aluminum double wall
      HubsNew Shimano TX-505 aluminum | Center Lock Discs | cassette 32h
      BRAKING SYSTEM
      BrakesShimano hydraulic BR-MT200 | 180/160mm Center Lock rotors
      Brake LeversShimano BL-MT200 hydraulic
      OTHER COMPONENTS
      Grips/TapeWTB Weirwolf
      Handle BarPivit aluminum 20mm riser bar 31.8mm | 700 / 720mm | 9 Deg. sweep
      StemPivit alloy Trail 0 Deg. | 4 bolts | Ext.: 60mm
      HeadsetFPD DOZER-1160A-2 w/ 1.5" ACB bottom | For 44/56mm head tube | 8mm Top Cone
      SaddleWTB Volt Sport w/ color accents
      Seat PostPivit alloy micro adjust 31.6mm | 350mm
      Seat ClampPivit alloy 35mm quick release
      ExtrasFrame bearings by Enduro USA

      Geometry & Sizing

      Frame reference chart
      SIZES
      A. Seat Tube (C-T)406mm (16")
      B. Top Tube (Effective)585mm (23")
      C. Head Tube Angle68.5°
      D. Seat Tube Angle71.5°
      E. Chainstay Length440mm (17.3")
      F. BB Drop20mm (0.8")
      G. Wheelbase1123mm (44.2")
      H. Head Tube Length110mm (4.3")
      I. Standover748mm (29.4")
      J. Stack Height588mm (23.1")
      K. Reach414mm (16.3")
      L. Fork Height514mm (20.2")
      M. Fork Offset42mm (1.7")
      N. Stem Length60mm
      O. Bar Width700mm
      P. Crank Length170mm
      Frame size chart
