Westlake MicroShift

Westlake MicroShift

$799.99
$799.99 $799.99
Sale Sold out

SKU: 13771

Sizing Guide

SizeInchesCM
S5'1" - 5'6"155 - 167.5
M5'5" - 5'10"165 - 177.5
L5'9" - 6'2"175 - 187.5
XL6'1" - 6'4"185 - 192.5
XL+6'3" - 6'6"190 - 200

Color
Size

View full details

COMPATIBLE RACKS & BASKETS

  • Rack Configuration 1

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier. Compatible with Westlake MicroShift

    Shop Racks

  • Rack & Accessory Configuration 2

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier with Bakery Crate & ZAP EASY Top Bag. Compatible with Westlake MicroShift

    Shop Crates & Bags

  • Rack & Accessory Configuration 3

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier with Dailey Large & Dailey Small Baskets. Compatible with Westlake MicroShift

    Shop Baskets

FEATURES

    SPECIFICATIONS

    FRAMESET
    Frame6061-T6 aluminum | Rider-tuned geometry | 68mm threaded BSA BB shell | Flat Mount

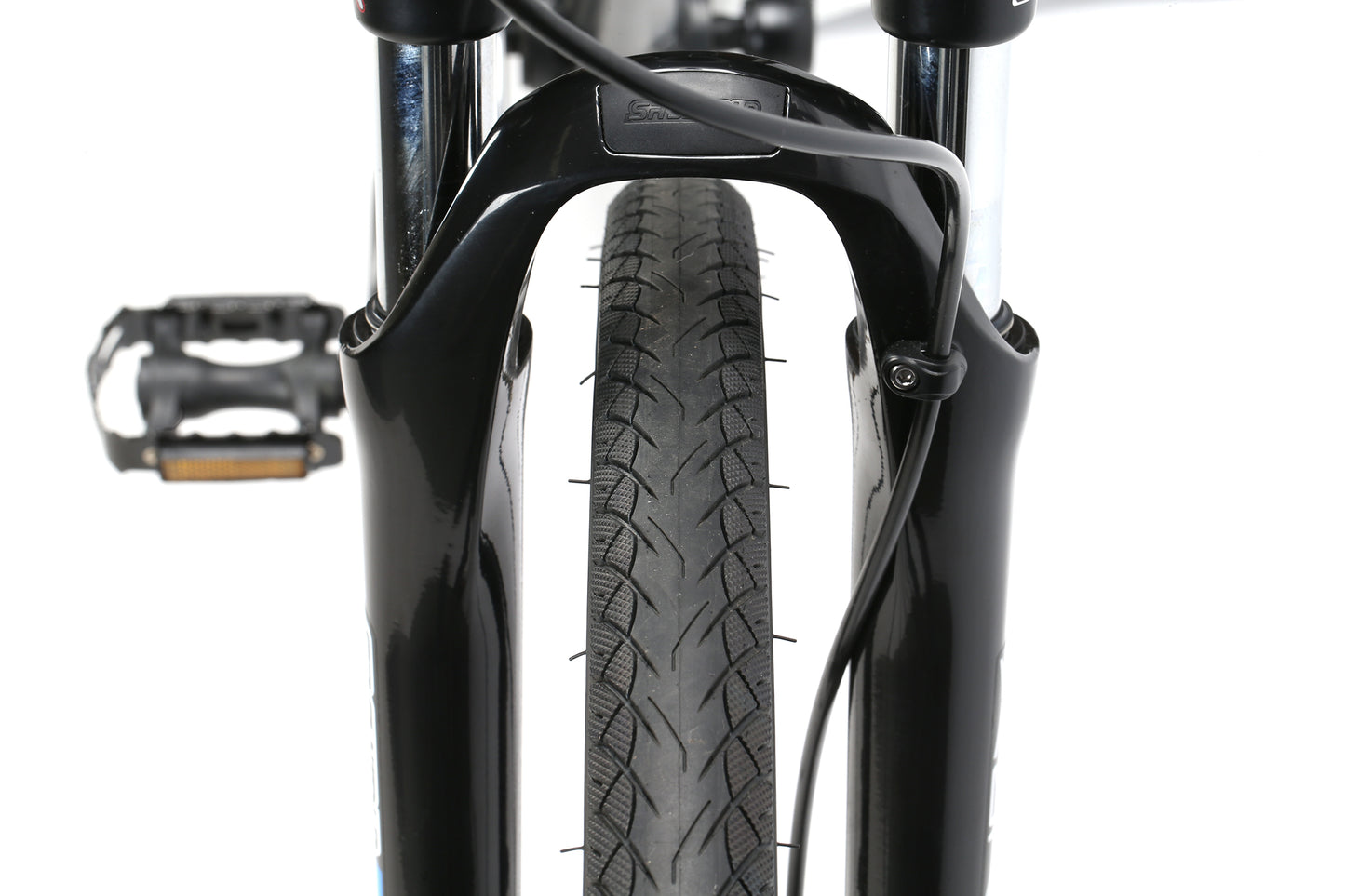

    ForkSuntour SF20 NEX HLO-DS | 63mm travel | Hydraulic Lockout | Post-mount
    Frame ShockN/A
    ColorsMatte Charcoal
    DRIVETRAIN
    Cranks3-pc aluminum | 42T single chainring | 104mm BCD | Dual aluminum chainguards | 170 / 175mm
    PedalsVP | 990S | Nylon body with steel cages | Chromoly axles
    ChainKMC X9 | 9-speed | NP/NP with missing link
    Bottom BracketThreaded BSA 68mm BB shell | 118mm spindle | Sealed cartridge
    Front DerailleurN/A
    Rear DerailleurMicroshift RD-M619M
    Derailleur ShifterMicroshift SL-M819R-9 | 1 x 9-speed
    Freewheel/CassetteWide-range | 9-speed | 11-40T
    WHEELS
    TiresKenda Kwick Bitumen, 700 x 38c
    Wheels/RimsHaro 700c | 19mm inner width | 28h | Alloy double wall | Disc-brake specifc
    HubsKT-68 alloy 28H | Cassette rear hub | Front & rear quick release
    BRAKING SYSTEM
    BrakesFlat mount | Mechanical disc | IS 6-bolt rotors | F: 180mm R: 160mm
    Brake LeversTektro alloy hydraulic | 3-finger
    OTHER COMPONENTS
    Grips/TapeHaro | Dual-density durometer | Active tuned
    HandlebarHaro Alloy | 25mm rise | 31.8mm | 9° sweep | 620mm / 640mm
    StemHaro Maverick Stem | Alloy | Positive Positioning | 7° rise | 15.5": 70mm; 17.5" & 19": 90mm; 21 & 23": 100mm
    HeadsetHaro Precision Plus | 1-1/8" threadless | Internal | For 50mm OD headtube
    SaddleHaro | Dual-sport tuned padding | Weather-resistant cover
    Seat PostHaro aluminum | Micro-adjust | 27.2mm x 350mm | Zero-offset | 2-bolt design
    Seat ClampHaro Aluminum 31.8mm Quick release
    ExtrasRack and fender mounts

    GEOMETRY

    Geometry frame chart
    SIZESMLXLXL+
    A. Seat Tube (C-T)394mm (15.5")445mm (17.5")483mm (19")533mm (21")584mm (23")
    B. Top Tube (Effective)575mm (15.5")585mm (17.5")600mm (19")615mm (21")625mm (23")
    C. Head Tube Angle70.5°70.5°70.5°70.5°70.5°
    D. Seat Tube Angle73°73°73°73°73°
    E. Chainstay Length445mm (17.5")445mm (17.5")445mm (17.5")445mm (17.5")445mm (17.5")
    F. BB Drop60mm (2.4")60mm (2.4")60mm (2.4")60mm (2.4")60mm (2.4")
    G. Wheelbase1083mm (42.6")1093mm (43")1109mm (43.7")1124mm (44.3")1135mm (44.7")
    H. Head Tube Length110mm (4.3")120mm (4.7")130mm (5.1")140mm (5.5")155mm (6.1")
    I. Standover743mm (29.3")768mm (30.2")787mm (31")815mm (32.1")847mm (33.3")
    J. Stack Height594mm (23.4")603mm (23.7")613mm (24.1")622mm (24.5")636mm (25")
    K. Reach393mm (15.5")400mm (15.7")412mm (16.2")424mm (16.7")430mm (16.9")
    L. Fork Height468mm (18.4")468mm (18.4")468mm (18.4")468mm (18.4")468mm (18.4")
    M. Fork Offset42mm (1.65")42mm (1.65")42mm (1.65")42mm (1.65")42mm (1.65")
    N. Stem Length70mm90mm90mm100mm100mm
    O. Bar Width620mm (24.4")620mm (24.4")640mm (25.2")640mm (25.2")640mm (25.2")
    P. Crank Length170mm170mm175mm175mm175mm
