Parkway DLX

Parkway DLX

Regular price $369.99
Regular price $369.99 Sale price $369.99
Sale Sold out

SKU: SKU:22131

The Haro Parkway DLX perpetuates pure freestyle vibes! With front and rear brakes and a detangler for endless trick possibilities, all built onto a 20.3" top tube frame that is performance minded and ready for action. 25/9 micro-gearing, an adjustable railed seat that you can raise as high as you want, along with four pegs for standing, grinding, or hauling the homies.
Size
Color

View full details

FEATURES

  • Hi-ten frame with 20.3" top tube
  • 1 1/8" hi-ten threadless fork
  • 7.5" hi-ten bars with Haro alloy top load stem
  • 25/9 gearing with sealed bearing 9T driver
  • Haro padded fully adjustable seat
  • Haro MS5 20 x 2.3" front & rear
  • Alloy 990 brake
  • Four pegs, front 990 brakes and Gyro

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameFull Hi-Ten frame with a 20.3" top tube
ForkFull Hi-Ten 1 1/8" threadless w/ 990 mounts
Colors
DRIVETRAIN

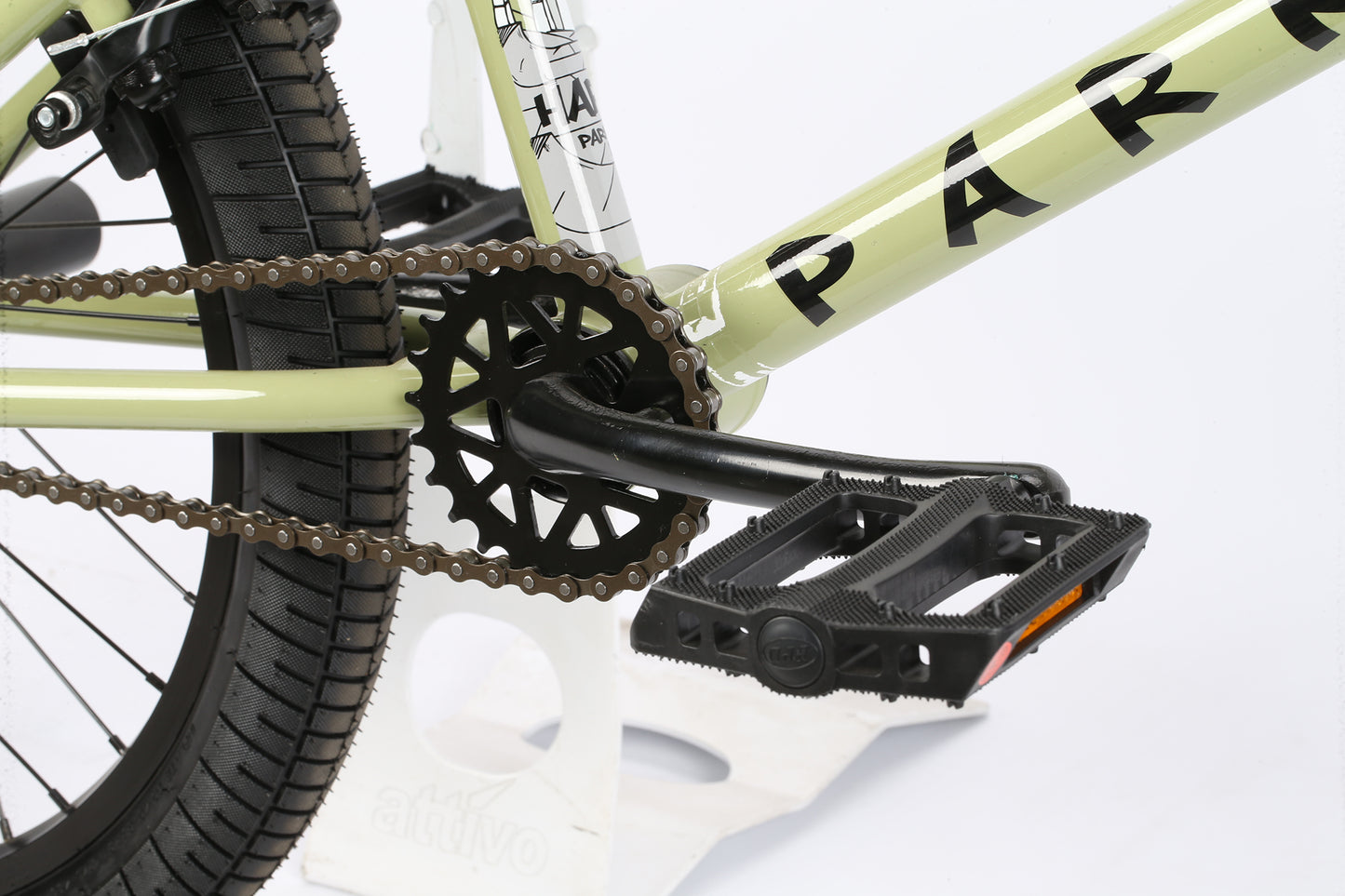

CranksSteel 1-pc, 175mm
Bottom BracketLoose ball American BB
Sprocket25T steel
Gearing25/9
PedalsPoly Platform, 1/2"
ChainHaro Baseline standard link
WHEELS
TiresHaro MS5 20 x 2.3"
Front HubSteel shell 36h, loose ball
Rear HubAlloy shell cassette, 36h, loose ball with sealed bearing driver
Axle3/8" front / 14mm rear
Rims20" alloy 36h, single wall
BRAKING SYSTEM

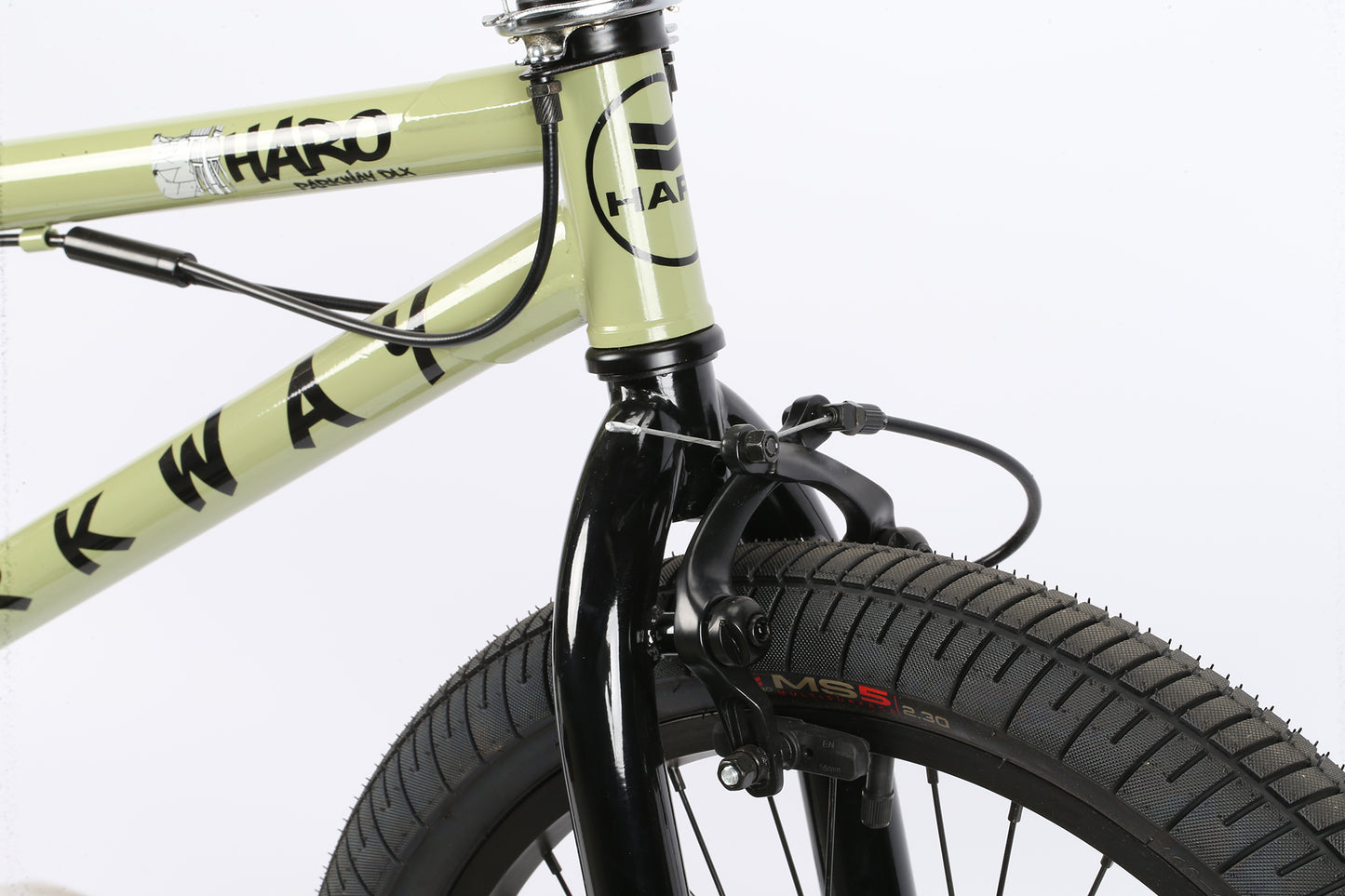

BrakeAlloy 990 U-Brake front & rear
Brake LeverAlloy two-finger front & rear
OTHER COMPONENTS
GripsHaro Stripe grips
HandlebarFull Hi-Ten, 7.5" rise
StemForged Alloy Top-Load, 50mm reach
HeadsetThreadless loose ball, 1 1/8"

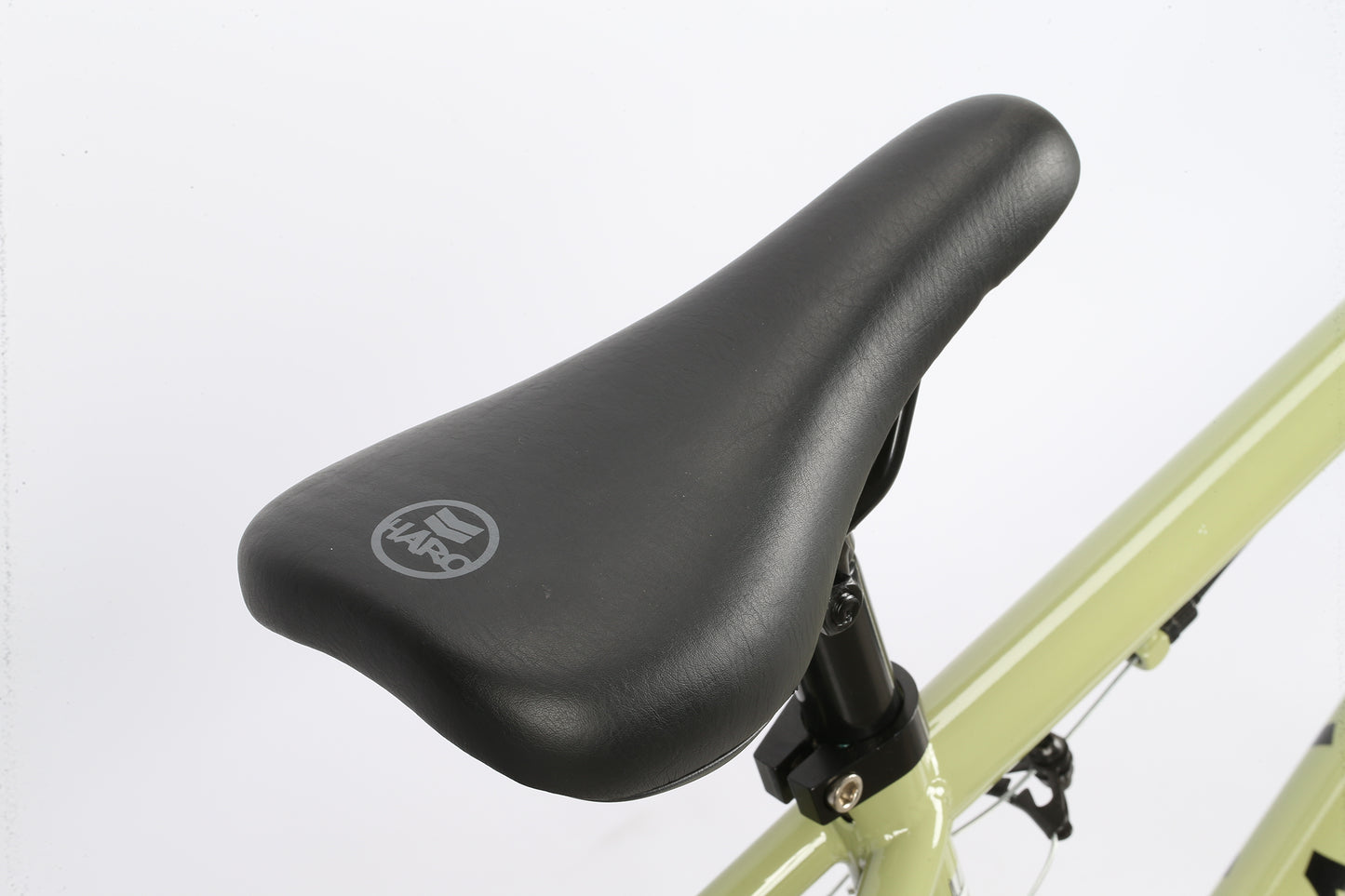

SeatHaro padded adjustable
Seat PostSteel, 25.4mm
Seat Post ClampAlloy, 28.6mm

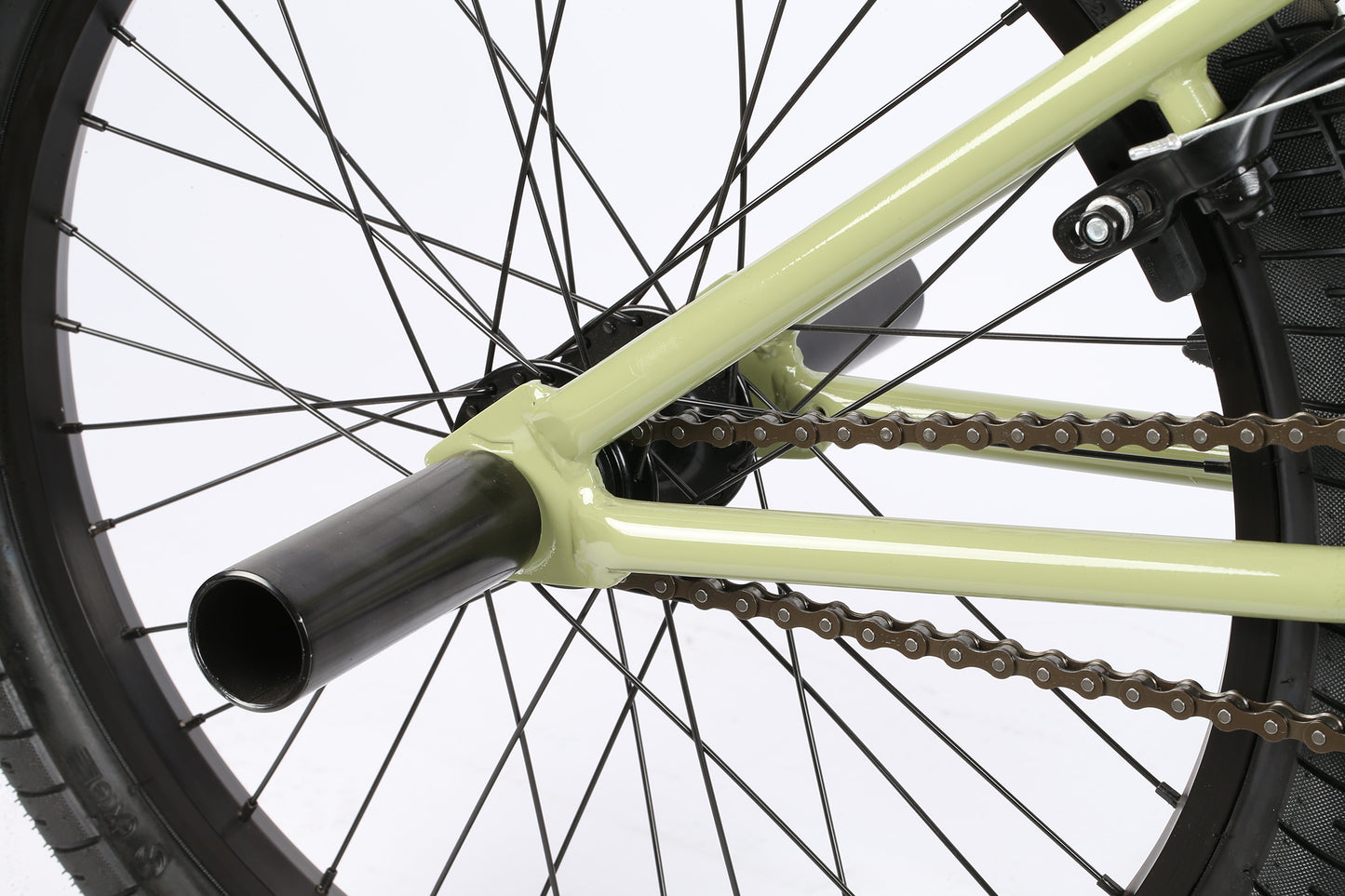

PegsSteel, two pair (4 total)

GEOMETRY

Geometry & Sizing
SizeHead AngleSeat AngleTop TubeSeat TubeChainstayBB HeightStand Over
20.374.5°70°20.3" (516mm)10.2" (260mm)13.7" (349mm)11.5" (293mm)21.5" (546mm)

MANUALS, GUIDES & DOWNLOADS

Downloadable PDFs can be found in Manuals & Guides

COMPATIBLE UPGRADES

*Specifications are subject to change without notice

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
